Emerson CE4003S6B1 | Industrial DCS Temperature Module

2. Unboxing & Physical Snapshot

Model & Brand: Emerson DeltaV CE4003S6B1
Product Type: DeltaV M-Series Traditional I/O RTD/Resistance termination block. The CE4003S6B1 is identified as an RTD termination block used with DeltaV analog input RTD cards.
Approximate Physical Dimensions (W × H × D): Approximately 130 × 120 × 50 mm (terminal block dimensions vary slightly by mounting hardware and carrier arrangement)
Estimated Shipping Weight: Approximately 0.3-0.6 kg (0.7-1.3 lb) including ESD packaging
What’s in the Box:
- Emerson DeltaV CE4003S6B1 RTD termination block
- Terminal connection hardware
- Mounting accessories when supplied
- Protective anti-static packaging
- Identification label with model and revision information
- Documentation package when available

3. Product Introduction

The CE4003S6B1 is installed at the physical interface between field temperature wiring and the DeltaV M-Series I/O subsystem. It provides the termination point for RTD field signals before they connect to the associated analog input hardware. (Terminal identification accuracy is critical because a single crossed RTD lead can create incorrect temperature readings without immediately triggering a hardware fault.)

Designed for process automation cabinets, this termination block supports RTD measurement applications where temperature feedback is required from vessels, piping, bearings, motors, and process equipment. The hardware itself does not perform signal processing; it provides the controlled wiring interface required by the DeltaV I/O architecture. Verify compatibility with the installed I/O card revision before replacement because M-Series and S-Series hardware are not physically interchangeable.

4. Core Technical Specifications

Parameter	Value
Manufacturer	Emerson
Product Family	DeltaV M-Series Traditional I/O
Model	CE4003S6B1
Product Type	RTD / Resistance Input Termination Block
Associated I/O Type	DeltaV RTD Input Card
Supported Signal Type	RTD and resistance measurement wiring
Channel Capacity	8 channels
Mounting Type	DeltaV I/O termination assembly
Field Connection	Screw terminal interface
Signal Conditioning	Performed by associated RTD input card
Power Requirement	Passive termination component; no independent power input
Heat Dissipation	Negligible passive thermal load
Cabinet Installation	Control panel / DeltaV I/O carrier environment
System Compatibility	DeltaV M-Series Traditional I/O architecture

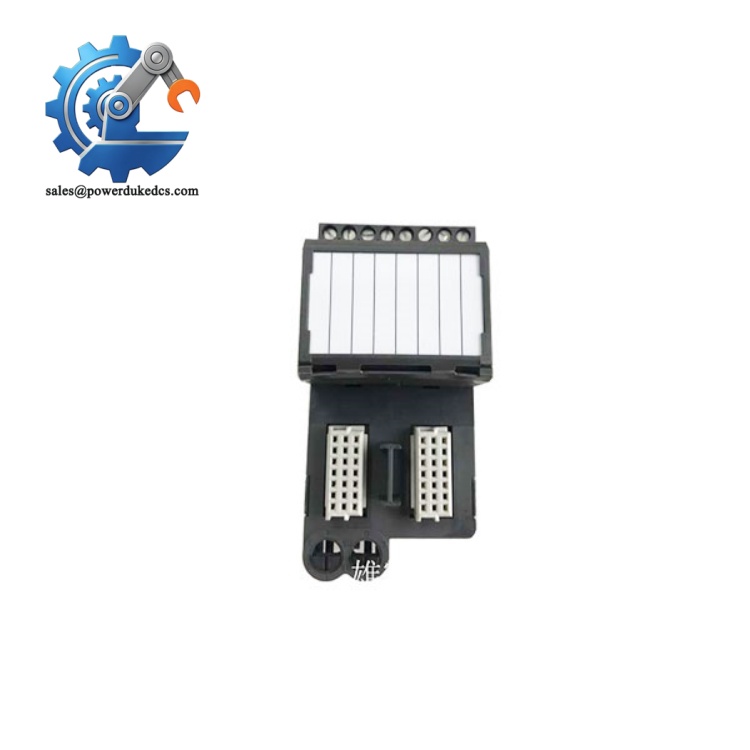

Emerson CE4003S6B1

5. ? Global Compliance & Industry Certifications

Expected regulatory considerations for the Emerson CE4003S6B1 include:

CE Mark: Applicable as part of supported DeltaV system configurations meeting electromagnetic compatibility requirements.
UL/cUL Recognition: May apply through the complete DeltaV control cabinet assembly.
RoHS Compliance: Depends on manufacturing revision and production date.
ATEX/IECEx: Not typically a standalone certification for the termination block. Hazardous-area suitability depends on the complete I/O system design, barriers, and field wiring arrangement.
Marine Approvals (DNV GL): Applicable only when supplied within an approved marine automation package.

For process plants, termination hardware is part of the signal integrity chain. Incorrect substitution can affect loop documentation, hazardous-area drawings, and validated control system records.

Verify specific lot certifications with OEM.

6. ? Long-Term Storage & Asset Preservation Guide

Keep the CE4003S6B1 inside its original anti-static packaging during warehouse storage. Terminal contacts and connector surfaces should remain protected from dust, moisture, and airborne contaminants.

Maintain storage humidity below 60% RH and avoid areas exposed to corrosive vapors. Copper and plated terminal surfaces can degrade slowly in poor warehouse environments.

Inspect stored units every 12-24 months. Check terminal screws, plastic housing condition, connector surfaces, and identification markings. Before installation, compare the termination block part number against the existing DeltaV I/O drawing package.

7. Physical Installation Prerequisites

Install only with the compatible DeltaV M-Series RTD input card and approved carrier arrangement.
Mount securely according to the DeltaV cabinet installation design.
Maintain approximately 50 mm clearance around cabinet airflow paths where enclosure design permits.
Confirm cabinet grounding and shield termination practices before connecting field wiring.
Verify RTD wiring type and polarity according to plant documentation.
Tighten terminal screws to approved torque specifications.
Keep low-level RTD wiring separated from motor power and high-current conductors.

8. Buyer’s FAQ (Logistics & Compliance Focus)

Q: What HS Tariff Code is commonly used for an Emerson CE4003S6B1 shipment?

A: Termination blocks and industrial electrical connection assemblies are commonly evaluated under HS classifications such as 8536 or related electrical apparatus categories. The final Harmonized System code depends on customs interpretation and declared function.

Q: Does Country of Origin affect acceptance of this DeltaV spare?

A: Yes. COO documentation supports import clearance, asset traceability, and automation system audit records. Verify the product label and supplier documentation before receiving inspection.

Q: Should this termination block ship with insurance coverage?

A: Recommended for international shipments or critical spare inventories. Although passive, the component is part of a validated control system and damage to terminals or housing may not be visible after transport.

Q: Does the CE4003S6B1 include the latest firmware pre-loaded?

A: No. This is a passive RTD termination block and does not contain firmware. The important verification items are part number, hardware revision, terminal arrangement, and compatibility with the installed DeltaV I/O configuration.
