Description
- Brand: Emerson
- Full Model Number: KJ4001X1-NB1
- Part Number: 12P3368X012
- System/Series Family: DeltaV M-Series I/O
- Core Function: Left-side one-wide extender for DeltaV LocalBus carrier connections
- Top 3 Hardcore Specs: 12 VDC LocalBus; 8 A supply capacity; 6.5 m maximum LocalBus length
- Connector Architecture: Dual 44-pin D-Shell connectors for fault-tolerant routing
- Operating Temperature: -40°C to +70°C
- Stock Status: New Surplus — subject to current lot confirmation
Emerson documentation identifies one-wide LocalBus extenders as the means to continue the horizontal I/O bus across different carrier rows. The dual extender design supports two D-Shell cables for fault-tolerant configurations.
Commercial-Technical Deep Dive
Cabinet geometry often forces DeltaV I/O carriers into separate rows or enclosure sections. That is where the KJ4001X1-NB1 fits. It is the left-side one-wide carrier extender in the horizontal DeltaV M-Series architecture. The extender joins the carrier chain through side-mounted 48-pin connections and routes LocalBus connectivity through D-Shell cabling. In DeltaV SIS installations, the dual version also supports the redundant safety-bus arrangement.
The electrical rating is 12 VDC at 8 A for LocalBus power. More importantly, the complete carrier and extender path must stay within a 6.5 m maximum LocalBus length. Emerson lists three standard D-Shell cable configurations in its hardware documentation: 1.20 m, 0.87 m, and 1.53 m, measured as cable length including the left and right extenders where specified. Keeping the route within this limit reduces the risk of an otherwise confusing LocalBus fault (cabinet layout still determines the practical result).
Compatibility & Installation Traps
Migration/Compatibility
For a replacement of the same KJ4001X1-NB1 12P3368X012 assembly, this is a hardware replacement rather than a firmware migration. No logic rewrite is normally required for the extender itself.
The important compatibility check is orientation and carrier topology. The NB1 is the left-side one-wide extender. The corresponding right-side one-wide extender is KJ4001X1-NA1. Older DeltaV documentation distinguishes these parts clearly, so substituting an opposite-side extender can create an incorrect physical bus arrangement.
For DeltaV SIS configurations, also verify that the installed extender is the dual-connector version required by the safety architecture. Emerson states that the dual left and right extenders provide two 44-pin D-Shell connections, with the A and B connectors in parallel.
⚠️ Field Traps (Watch Out)
Trap 1 — LocalBus length.
Do not judge cable length from the replacement part alone. Emerson specifies a 6.5 m maximum total LocalBus length, including the relevant carriers and extenders. Interconnecting cables between enclosures must be routed in conduit.
Trap 2 — Dual-cable routing.
When two D-Shell cables are installed, Emerson specifies that they must be routed together from the same source to the same destination. Splitting the pair across different cable paths can invalidate the intended topology.

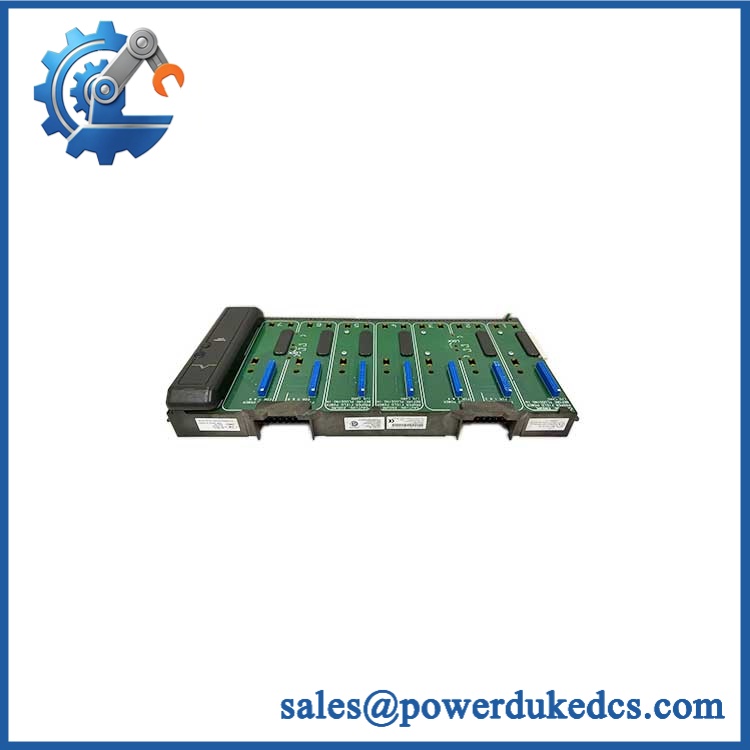

Emerson KJ4001X1-NB1
Quality Assurance SOP
Each supplied KJ4001X1-NB1 should first pass an OEM anti-counterfeit visual inspection. The QA check records the Emerson identification label, model code, secondary part number, revision markings, connector condition, PCB condition, mounting hardware, and evidence of rework or corrosion. The physical orientation is also checked against the quoted NB1 left-side configuration.
This is a passive carrier-extender assembly, so its own POST or RUN/ERR indicators should not be claimed as functional diagnostics. Instead, QA verifies connector engagement and continuity, confirms the extender topology, and performs communication handshake verification through the associated powered DeltaV carrier and controller hardware. Where a complete powered test setup is available, the paired DeltaV system undergoes power-on self-test checking for ERR/RUN LEDs, followed by LocalBus communication and affected I/O verification. Emerson also specifies that the extender contains no user-serviceable parts and that calibration is not required.
CRO-Driven Buyer FAQ
Is Emerson KJ4001X1-NB1 still available as an OEM spare?
Current secondary-market references classify the KJ4001X1-NB1 as discontinued, while Emerson continues to document the DeltaV M-Series carrier architecture. Availability therefore depends on existing inventory and approved spare sources. Verify the marking and 12P3368X012 identifier before ordering.
Can the be removed while DeltaV power is energized?
No. The installation documentation states that the unit cannot be removed or inserted with system power energized. Power must be de-energized before disconnecting carriers or LocalBus extender cables. Hazardous-area procedures may impose additional requirements.
Does replacing the extender require a firmware flash?
Normally, no. The is a carrier interconnection component. A same-part replacement does not normally require controller logic changes or module firmware updates. The carrier topology, cable routing, and correct left-side orientation must still be verified.
What warranty is provided?
Warranty terms should be stated on the quotation for the specific inventory lot. For surplus inventory, do not assume Emerson factory warranty coverage. Any seller warranty should define the coverage period, return conditions, and exclusions before the purchase order is released.
What technical support is available after delivery?
Support can cover model identification, part-number verification, connector checks, carrier-topology review, and basic replacement guidance. Site-specific SIS validation, cabinet engineering, hazardous-area authorization, and final process acceptance remain the responsibility of qualified plant personnel.
