Description

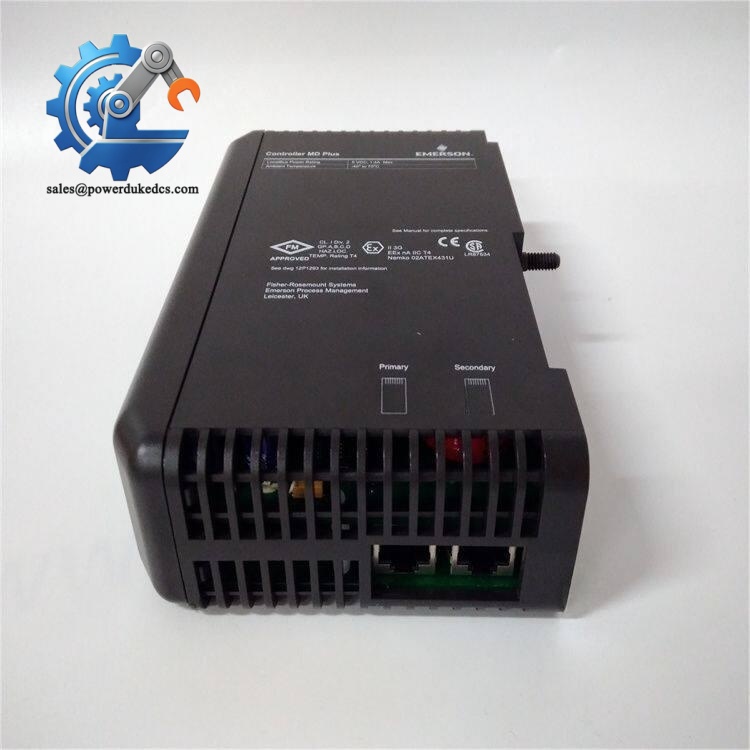

1. Emerson VE3006 KJ2003X1-BB1 | Original DeltaV Asset

2. Unboxing & Physical Snapshot

• Model & Brand: Emerson DeltaV VE3006 MD Plus Controller, part number KJ2003X1-BB1 (also associated with 12P3439X012 / 12P3439X032 ordering references).
• Approximate Physical Dimensions: Approximately 5.0 × 5.0 × 1.5 in. (127 × 127 × 38 mm), depending on carrier and mounting hardware configuration.
• Estimated Shipping Weight: Approximately 0.75 lb (0.34 kg) for the controller module; packaged shipment weight increases with ESD protection and accessories.
• What’s in the Box:
  • Emerson DeltaV VE3006 MD Plus Controller
  • Anti-static (ESD) shielding bag
  • Protective foam packaging
  • Module identification label
  • Factory documentation when supplied
  • Configuration records when available

3. Product Introduction

The VE3006 KJ2003X1-BB1 installs into the Emerson DeltaV M-series controller carrier as the processing element responsible for executing control strategies, managing LocalBus communications, and coordinating connected DeltaV I/O resources. The controller mounts into the right-side position of the power/controller carrier, where correct seating of the backplane connector and retaining hardware is essential (especially during online maintenance activities).

This controller is a critical DCS asset rather than a simple plug-in module. Preserve the firmware revision, configuration database references, and serial traceability throughout its lifecycle. Inspect the connector pins, module guides, and locking mechanism before installation because mechanical damage can create communication faults that resemble software problems.

4. Core Technical Specifications

Parameter	Value
Manufacturer	Emerson
Product Family	DeltaV M-series
Model Number	VE3006
OEM Part Number	KJ2003X1-BB1
Alternate Part Numbers	12P3439X012, 12P3439X032
Product Type	MD Plus Controller Module
Mounting Location	Right slot of DeltaV power/controller carrier
Supply Voltage	5 VDC LocalBus power
Maximum Current Draw	1.4 A maximum
Typical Power Dissipation	Approximately 5 W
Maximum Power Dissipation	Approximately 7 W
User Memory	Approximately 48 MB
Operating Temperature	Approximately -40°C to +70°C
Communication Interface	DeltaV LocalBus
Cooling Method	Cabinet convection airflow
Weight	Approximately 0.3 kg

Emerson VE3006 KJ2003X1-BB1

5. Global Compliance & Industry Certifications

Expected regulatory approvals and compliance considerations for the Emerson VE3006 KJ2003X1-BB1 include:

• CE Mark compliance for applicable DeltaV system installations
• UL/cUL recognition where applicable to the complete control cabinet assembly
• RoHS compliance depending on manufacturing revision
• ATEX/IECEx suitability when installed within a certified hazardous-area DeltaV configuration
• FM approval options for hazardous locations when supported by the complete system design
• Marine approvals such as DNV GL/IACS E10 only for specifically qualified installations

Hazardous-area certifications are important because controller hardware may operate near process equipment containing flammable materials. The approval applies to the complete installation method, enclosure, and system configuration—not only the controller module.

Verify specific lot certifications with OEM.

6. Long-Term Storage & Asset Preservation Guide

Keep the VE3006 controller sealed inside its original anti-static (ESD) packaging during storage. The backplane connector and processor electronics should remain protected from dust, moisture, and electrostatic exposure.

Maintain warehouse humidity below 60% RH and avoid temperature cycling. Long storage periods can affect electrolytic capacitors and connector contact surfaces (which is often overlooked in older DCS spare inventories).

Inspect before deployment. Verify the module label, firmware revision, configuration compatibility, and physical connector condition. Record inspection results in the asset management system before releasing the spare to operations.

7. Physical Installation Prerequisites

• Install only in an approved Emerson DeltaV M-series controller carrier.
• Confirm the correct controller slot location before insertion.
• Use ESD grounding equipment when handling the module.
• Ensure the retaining clips and module guides are fully engaged.
• Maintain approximately 50 mm clearance above and below cabinet ventilation paths where practical.
• Verify protective earth grounding and cabinet bonding before energizing.
• Confirm DeltaV software compatibility before loading the controller configuration.

8. Buyer’s FAQ (Logistics & Compliance Focus)

Q: What HS Tariff Code is commonly used for the Emerson VE3006 KJ2003X1-BB1?

A: This controller module is commonly classified under HS categories covering electrical control equipment. One published listing identifies HS code 8537109160 for this controller family, but final classification depends on importer interpretation and destination-country customs rules. Confirm the Harmonized System code with your customs broker before export.

Q: Does Country of Origin affect purchasing and import documentation?

A: Yes. Country of Origin affects customs clearance, contractual requirements, and regulated plant documentation. Supplier records should match the product label and commercial invoice before shipment. Published listings may identify different origin records depending on supply channel, so verify the actual lot documentation.

Q: Is shipping insurance recommended for this DeltaV controller?

A: Recommended. A controller failure during a plant outage can create significant operational impact. Use ESD packaging, impact-resistant transport materials, and insured freight with receiving inspection records.

Q: Does the VE3006 KJ2003X1-BB1 include the latest firmware pre-loaded?

A: Not necessarily. Firmware revision and application configuration depend on the controller history and DeltaV system version. Verify compatibility with the installed DeltaV database, controller revision requirements, and approved system software before commissioning.
