Description
- Brand: Emerson
- Full Model Number: KJ4110X1-BA1
- Alternate Part Number: 12P1867X012
- System/Series Family: DeltaV Scalable Process System
- Core Function: Standard intrinsically safe field termination for DeltaV I/O
- Top 3 Hardcore Specs: 24 VDC field circuits; 4-channel IS-DO / 8-channel IS-AO configurations; Zone 0/Division 1 applications
- Associated I/O: KJ3101X1-BA1 IS-DO and KJ3102X1-BB1 IS-AO
- Stock Status: New Surplus subject to physical stock confirmation
Commercial-Technical Deep Dive
When an existing DeltaV installation uses intrinsically safe field circuits, the terminal block becomes a critical part of the I/O architecture. Emerson KJ4110X1-BA1 is identified as a standard IS terminal block within the DeltaV scalable process system. Installation documentation shows it paired with KJ3101X1-BA1 four-channel IS-DO and KJ3102X1-BB1 eight-channel IS-AO modules. The same documentation identifies KJ4110X1-BA1 as the IS termination point on the eight-wide carrier architecture.
This part is primarily valuable when an exact legacy termination arrangement must remain intact. The commonly referenced alternate number is 12P1867X012. Published technical references also identify 24 VDC field operation and intrinsically safe use, while installation references place the assembly in hazardous-area architectures. Do not substitute a visually similar KJ-series terminal block without checking the I/O card, carrier, and terminal keying first — the suffix matters here.
Compatibility & Installation Traps
Migration/Compatibility
KJ4110X1-BA1 is a termination component, not a programmable controller. A firmware update is therefore not normally required for the terminal block itself.
Compatibility depends on the installed DeltaV carrier and I/O module combination. Emerson installation documentation specifically associates KJ4110X1-BA1 with KJ4101X1-BA1 IS 8-wide carriers and with IS I/O modules including KJ3101X1-BA1 and KJ3102X1-BB1.
For a replacement job, match all of these before shipment: full terminal-block suffix, associated I/O module, carrier type, and terminal-block key position.
⚠️ Field Traps (Watch Out)
Trap 1 — Energized replacement: Do not assume this terminal block is hot-swappable. For hazardous-area DeltaV hardware, field power and system isolation requirements must be followed before removal or insertion. Use the applicable Emerson installation procedure for the installed assembly.
Trap 2 — Wrong IS pairing: KJ4110X1-BA1 is used with specific intrinsically safe I/O arrangements. Connecting the wrong terminal variant to an IS I/O card can create both wiring and certification problems. Verify the carrier and module references first.
Trap 3 — Wiring documentation: Photograph existing terminal numbering before disconnecting conductors. IS circuits are especially sensitive to wiring errors because the termination arrangement forms part of the approved system architecture.
Quality Assurance SOP
Every available unit should undergo a controlled inspection before shipment.
- OEM anti-counterfeit visual inspection: Check Emerson markings, model number, alternate number, housing geometry, connector arrangement, labels, and manufacturing identifiers.
- Mechanical inspection: Examine terminal interfaces, mounting points, keying features, and enclosure condition.
- Part-number verification: Confirm and, where present, 12P1867X012 against the purchase specification.
- Terminal inspection: Check accessible terminal paths and connector condition for contamination, corrosion, bent contacts, or physical damage.
- Power-on validation: Where a complete compatible DeltaV test assembly is available, perform POST checks and inspect associated ERR/RUN LED states on the I/O hardware.
- Communication handshake verification: Confirm controller-to-I/O communication after controlled installation. The terminal block itself is passive.
- IS configuration check: Verify the terminal block is matched with the documented IS carrier and I/O module combination.
- ESD handling: Use approved ESD controls during inspection and packing.
- Photo record: Capture label, connector, front, rear, and packaging-condition photographs before dispatch.

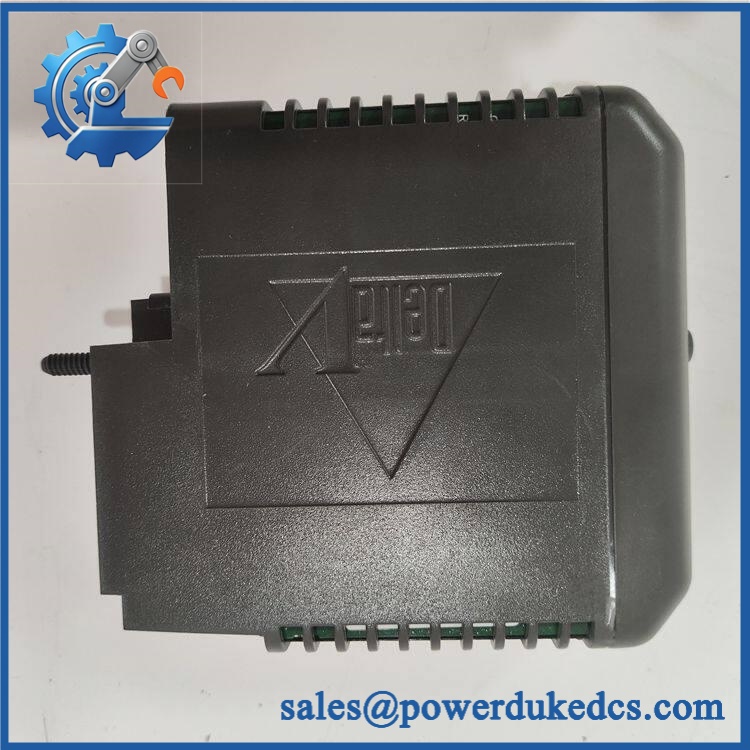

Emerson KJ4110X1-BA1
CRO-Driven Buyer FAQ
Is Emerson still available for legacy DeltaV systems?
The part is commonly listed as a legacy or discontinued DeltaV component, with 12P1867X012 frequently used as the alternate reference. Existing installations may therefore depend on verified remaining inventory.
Can be removed with the DeltaV system powered?
Do not assume so. The correct procedure depends on the installed DeltaV carrier, I/O module, and hazardous-area configuration. For IS assemblies, follow the applicable Emerson removal and insertion instructions and de-energize the required field circuits before disconnecting hardware.
Does the require firmware?
No firmware is normally loaded into the terminal block itself. Configuration and firmware requirements apply to the associated DeltaV I/O electronics, not to this passive termination component.
What warranty is provided?
Warranty: 12 months from shipment for the supplied unit, subject to the quoted condition and sales terms. Technical support covers part-number verification, documentation review, compatibility checks, and installation guidance. Plant commissioning, control-logic modification, and site engineering remain outside standard product support.
What information should be checked before ordering?
Send the installed terminal-block label, associated I/O module number, carrier reference, and clear photos of the existing assembly. This allows the exact configuration to be checked before shipment.
