Description
- Brand: Emerson
- Full Model Number: PMC-IO-ADAPTER
- System/Series Family: Emerson Embedded PMC and CompactPCI Platform
- Core Function: PMC or PrPMC carrier interface for a standard cPCI slot
- Top 3 Hardcore Specs: 3U 4HP form factor; 32/64-bit PCI bus; 33/66 MHz operation
- Architecture: Passive adapter/carrier design
- I/O: PMC bezel I/O; optional rear I/O through J2
- Bus Features: DMA capable; optional Slot 0 bus arbitration and clock distribution
- Stock Status: New Surplus subject to physical stock confirmation
Commercial-Technical Deep Dive
When a legacy cPCI chassis still depends on a PMC card, replacing the carrier can become harder than replacing the PMC itself. The PMC-IO-ADAPTER is documented in public technical references as a cPCI-to-PMC adapter architecture. It provides one PMC or PrPMC position within a 3U 4HP cPCI card format. The referenced architecture is passive, so the carrier does not require a dedicated adapter driver or add software processing between the host bus and the installed PMC.
The useful engineering figures are physical and bus-level. The documented architecture supports 32- or 64-bit operation at 33 or 66 MHz, with the actual interface limited by the slower attached device. The PMC connection also supports DMA, while optional Slot 0 functions can provide bus arbitration, reset, and clock distribution. A passive signal path avoids extra processing latency inside the carrier (actual throughput still depends on the PMC, host bridge, backplane, and chassis topology).
Compatibility & Installation Traps
Migration/Compatibility
Treat PMC-IO-ADAPTER as a hardware carrier, not as a controller requiring firmware migration. The documented cPCI-to-PMC architecture provides direct access to the installed PMC registers, and no carrier-specific software driver is required for the passive design.
Compatibility still depends on the host chassis and PMC electrical requirements. The referenced carrier uses a 3U 4HP cPCI format and routes cPCI power rails to the PMC. PMC VIO is tied to the cPCI bus reference, so the backplane and installed PMC must have compatible voltage requirements. Universal-voltage PMCs may support both 3.3 V and 5 V environments, but this must be confirmed from the specific PMC documentation.
⚠️ Field Traps (Watch Out)
Trap 1 — Bus-width and speed mismatch: A 66 MHz PMC does not make the complete system operate at 66 MHz automatically. The slower or narrower device determines the effective interface characteristics. Check the PMC specification and host backplane before installation.
Trap 2 — Voltage-reference error: PMC VIO is interconnected with the cPCI bus. Installing a PMC with an incompatible I/O voltage environment can cause hardware damage. The technical manual specifically warns that incompatible hardware can cause serious damage.

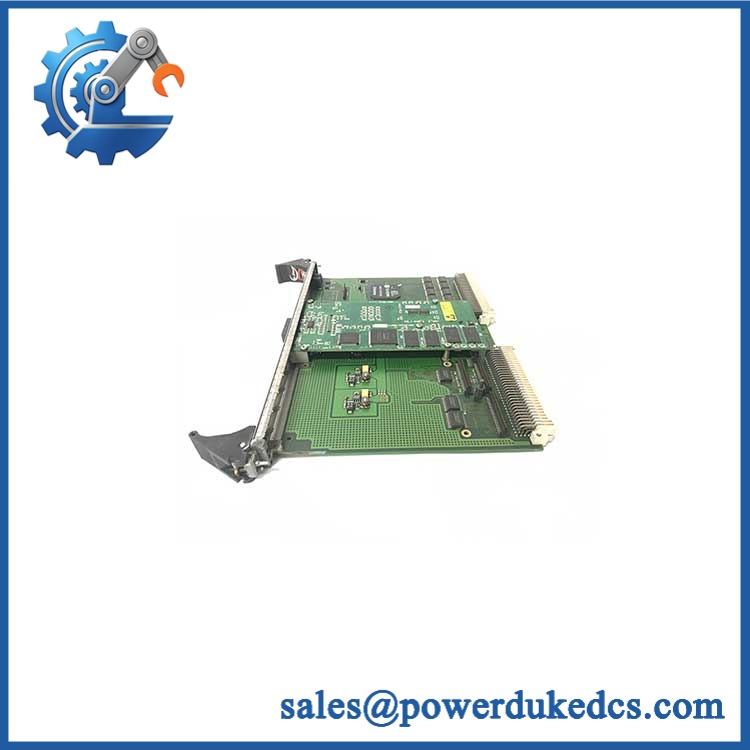

Emerson PMC-IO-ADAPTER
Quality Assurance SOP
Every available PMC-IO-ADAPTER unit should undergo controlled inspection before shipment.
- OEM anti-counterfeit visual inspection: Check Emerson markings, model label, PCB layout, connectors, mounting hardware, and revision identifiers.
- Mechanical inspection: Inspect the cPCI edge connector, PMC socket, ejectors, standoffs, bezel, and PCB for cracks or deformation.
- Part-number verification: Confirm PMC-IO-ADAPTER against the purchasing specification and physical label.
- PCB inspection: Check for corrosion, contamination, damaged components, lifted pads, and previous rework.
- Power-rail verification: Where a compatible test chassis is available, verify the carrier passes the expected cPCI supply rails to the PMC position.
- Bus enumeration check: Install a known-good compatible PMC and verify that the host system detects the expected PCI device during startup.
- I/O path verification: Where the specific configuration includes rear I/O, verify the applicable J2-to-PMC I/O routing.
- Communication handshake verification: Confirm host-to-PMC register access and normal device enumeration after controlled installation.
- ESD handling: Use grounded ESD controls during inspection, handling, and packing.
- Photo record: Record front, rear, PCB, connector, label, and packaging condition before dispatch.
The underlying carrier architecture is passive and does not require a dedicated carrier driver. The installed PMC’s own software and driver requirements remain applicable.
CRO-Driven Buyer FAQ
Is Emerson PMC-IO-ADAPTER obsolete?
Public references currently identify PMC-IO-ADAPTER as an Emerson-associated legacy automation part, while the technical architecture corresponds closely to a passive cPCI-to-PMC carrier. Exact lifecycle status should be confirmed from the physical part number and the installed Emerson system documentation.
Does PMC-IO-ADAPTER require firmware?
The documented passive cPCI-to-PMC architecture does not require a dedicated adapter driver. The installed PMC remains responsible for its own device-level software and configuration.
Can PMC-IO-ADAPTER be hot-swapped?
Do not assume hot-swap capability. The documentation reviewed describes a passive carrier, but that does not establish hot-insertion approval for every Emerson host chassis. Use a powered-down installation unless the specific chassis and system documentation explicitly permits live insertion. The installed PMC must also tolerate the applicable power state during removal or insertion.
What warranty is provided?
Warranty: 12 months from shipment for the supplied unit, subject to the quoted condition and sales terms. Technical support covers model verification, available documentation, compatibility review, and installation guidance. Site commissioning and application-specific software engineering are outside standard product support.
What should I verify before ordering?
Provide the existing PMC-IO-ADAPTER label, host chassis model, installed PMC model, cPCI backplane details, and clear photos of the carrier. Voltage, bus width, bus frequency, rear-I/O routing, and chassis slot requirements should be checked before replacement.
