Description
- Brand: Emerson EPRO
- Full Model Number: PR6423/00R-010 + CON031
- System/Series Family: EPRO PR642x Eddy Current Measurement System
- Core Function: Non-contact radial and axial shaft displacement measurement
- Top 3 Hardcore Specs: 8 mm probe tip / 2 mm linear range / 8 V/mm sensitivity
- Initial Air Gap: 0.5 mm
- Probe Mount: Reverse mount
- Case Thread: M10 x 1
- Cable: 5 m total sensor cable configuration
- Converter Supply: -24 VDC nominal
- Converter Output: -2 to -18 V or -4 to -20 V
- Stock Status: New Surplus — exact connector configuration to be verified
Commercial-Technical Deep Dive
A turbine protection channel can fail at the sensor chain even when the monitoring rack remains healthy. PR6423/00R-010 is an 8 mm non-contact eddy-current probe for measuring shaft displacement, position, eccentricity, and related rotating-equipment parameters. The reverse-mount configuration uses an M10 x 1 case thread. Emerson specifies a 2 mm linear measurement range, 0.5 mm initial air gap, and 8 V/mm incremental scale factor at 0 to 45°C. The sensor is intended for demanding machinery such as steam turbines, gas turbines, compressors, gearboxes, pumps, and fans.
The CON031 converts the probe’s high-frequency eddy-current measurement into a proportional DC voltage for the monitoring system. Its nominal supply is -24 VDC. Depending on configuration, the output is -2 to -18 V or -4 to -20 V, with a nominal 0 to 20 kHz response under the specified capacitive load. Emerson specifies PR6423 linearity at no more than ±1% for the standard measuring range, while long-term converter drift is 0.3% maximum over -30 to +70°C. Those figures matter during channel replacement: a sensor change is not only a mechanical task. Probe gap, target material, converter calibration, and cable configuration all affect the final measurement chain.

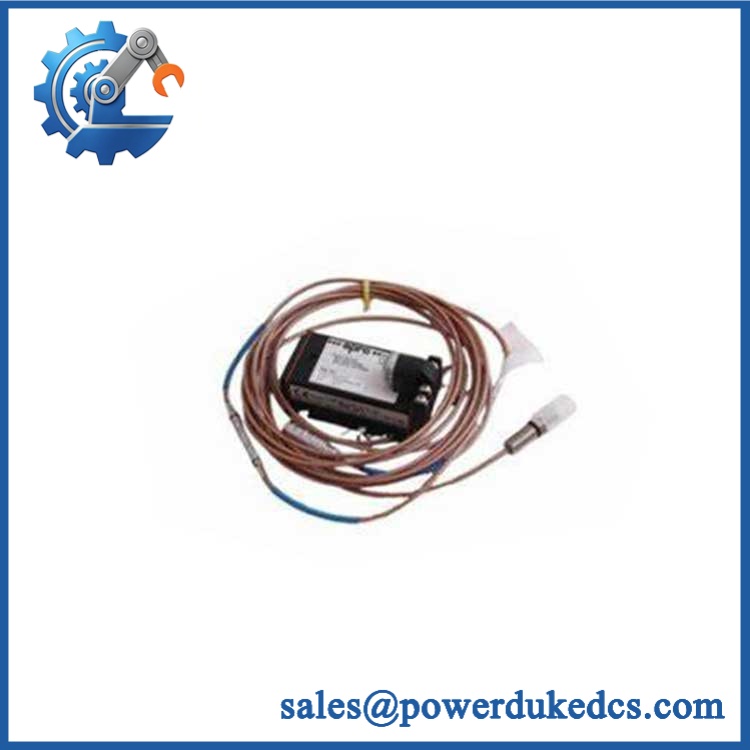

Emerson PR6423/00R-010+CON031
Compatibility & Installation Traps
Migration/Compatibility
PR6423/00R-010 should be treated as a specific PR6423 reverse-mount configuration, not as a generic 8 mm replacement. Emerson’s current order matrix identifies the PR6423 family by thread, armor, sensor length, reverse-mount option, adapter plug, cable length, and cable end. For this designation, the reverse-mount suffix and the cable configuration are part of the ordering identity.
The CON031 is the converter version using screw terminals for the sensor connection, while CON021 uses a LEMO socket. This creates an important verification point for a supplied /00R-010 + CON031 combination: the sensor order code indicates a specific cable-end configuration, while the current CON031 documentation specifies screw-terminal sensor wiring. Verify the actual converter terminal arrangement and any supplied adapter or terminated cable before installation. Do not assume that every cable configuration connects directly to every CON031 variant.
No PLC logic rewrite is normally involved when replacing an identical calibrated measuring chain. Recalibration may still be necessary. Emerson notes that exchange error depends on the sensor, cable, converter, and measuring target, with approximately 1.5–2% typical exchange error for specified reference configurations and a maximum assured exchange error of 5% relative to measuring-range end value.
⚠️ Field Traps (Watch Out)
- Initial air gap: uses a 0.5 mm initial air gap for its standard 2 mm measuring range. Mounting geometry directly affects output accuracy.
- Converter wiring: uses screw terminals. Verify polarity, sensor termination, -24 VDC supply, and output wiring before energizing. The converter provides a voltage output, not a conventional 4–20 mA current output.
- Adjacent probes: Two eddy-current measuring chains installed too closely can influence each other and create invalid measurements. Maintain the required physical separation for the installation.
- Target material: Emerson’s standard calibration reference is 42CrMo4 / SAE 4140 ferromagnetic steel. A different shaft material can change the measuring-chain characteristics and may require adjustment.
Quality Assurance SOP
The /00R-010 + assembly should be inspected as a complete measuring chain, not as two unrelated spare parts.
- Part-number verification: Confirm /00R-010 and markings against the purchase specification.
- OEM anti-counterfeit visual inspection: Check labels, engraving, connector construction, housing finish, cable jackets, and manufacturing markings.
- Mechanical inspection: Examine the stainless-steel sensor body, M10 x 1 thread, probe tip, cable, and converter housing for impact or corrosion.
- Cable inspection: Check the full cable length, bending points, termination, shielding, and connector or terminal arrangement.
- Power-on self-test (POST): Energize the on a controlled test fixture and confirm normal supply behavior and a valid probe-dependent output. This assembly does not use the PLC-style ERR/RUN LED architecture, so LED-status claims are not substituted for an actual electrical test.
- Measurement handshake verification: Connect the complete sensor chain to a suitable test target and verify that converter output changes proportionally with probe-to-target distance.
- Gap verification: Use a calibrated gauge to establish the specified initial air gap during functional testing.
- Output verification: Check output range and polarity against the installed configuration.
- Calibration check: Compare measured response with the applicable / calibration characteristics.
- Final inspection: Record serial numbers, test results, visible revision information, and packaging condition before shipment.
Emerson’s installation documentation specifically requires incoming inspection, correct cable connection, and controlled storage and transport. It also identifies the probe, mounting hardware, applicable cable arrangement, and documentation as parts of the expected sensor delivery.
CRO-Driven Buyer FAQ
Is /00R-010 an obsolete sensor?
The remains documented in Emerson’s current January 2026 installation material. It is part of the established PR642x eddy-current sensor family rather than a newly introduced platform. For replacement procurement, verify the exact order code, converter type, cable configuration, and calibration requirements before release.
Can /00R-010 be connected directly to ?
Verify the supplied cable and termination first. Current Emerson documentation specifies a LEMO connection for CON021 and screw terminals for . The exact sensor cable-end configuration therefore matters when purchasing a combined /00R-010 + assembly.
Does this system output 4–20 mA?
No. The standard documentation specifies a DC voltage output proportional to shaft displacement or vibration. Depending on the configuration, the output range is -2 to -18 V or -4 to -20 V. Do not substitute a 4–20 mA input card without checking the actual monitoring-system interface.
What should be checked when replacing the probe?
Check probe orientation, M10 x 1 mounting, initial air gap, target material, cable configuration, converter type, output range, and calibration. Emerson states that sensor and converter characteristics must be considered together, and replacement error can vary with the measuring chain configuration.
Can the sensor be removed while the system is energized?
Use the approved plant isolation procedure and de-energize the measuring chain before disconnecting sensor or converter wiring. Emerson’s installation documentation requires the supply to be switched off before work involving converter adjustment or wiring. Work affecting hazardous-area conformity must follow the applicable certification procedure.
A 12-month hardware warranty can be provided for supplied inventory under the agreed sales terms. Technical support covers model identification, configuration review, documentation, installation guidance, and basic sensor-chain testing. Application-specific turbine protection settings and plant control engineering remain outside standard hardware support.
