1. Emerson PR9268/303-000 | Authentic Vibration Monitoring Spare

2. Unboxing & Physical Snapshot

• Model & Brand: Emerson EPRO PR9268/303-000 Electrodynamic Velocity Sensor
• Product Type: Mechanical velocity sensor for absolute vibration measurement on critical rotating machinery, including turbines, compressors, pumps, and fans. The PR9268 series is designed for machinery protection systems and measures casing vibration velocity.
• Approximate Physical Dimensions (W × H × D): Approximately 45 × 45 × 100 mm sensor body (final dimensions vary with cable armor and connector configuration)
• Estimated Shipping Weight: Approximately 1 kg including protective packaging.
• What’s in the Box:
  • Emerson EPRO PR9268/303-000 velocity sensor
  • Integrated cable assembly (configuration dependent)
  • Mounting hardware when supplied
  • Protective connector/cable packaging
  • Calibration identification information
  • Original protective packaging when available

3. Product Introduction

The Emerson EPRO PR9268/303-000 is installed directly on machinery housings where absolute vibration measurement is required for rotating equipment protection. Its mechanical spring-mass sensing element converts casing movement into an electrical velocity signal used by machinery monitoring systems. (Mounting orientation matters; incorrect installation angle can affect measurement accuracy.)

This sensor is commonly applied on steam turbines, gas turbines, hydro turbines, compressors, pumps, and fans where vibration trends provide early warning of mechanical issues. The PR9268/303-000 belongs to the PR9268 electrodynamic velocity sensor family and is configured for horizontal installation orientation. Field replacement requires matching the exact orientation code, cable arrangement, calibration characteristics, and environmental approval requirements.

4. Core Technical Specifications

Parameter	Value
Manufacturer	Emerson EPRO
Model	PR9268/303-000
Product Type	Electrodynamic Velocity Sensor
Measurement Type	Absolute vibration velocity measurement
Application	Turbomachinery casing vibration monitoring
Sensor Orientation	Horizontal mounting configuration
Sensitivity	Approximately 17.5 mV/mm/s
Frequency Range	Approximately 14 Hz to 1000 Hz
Natural Frequency	Approximately 14 Hz ±7% at 20°C
Transverse Sensitivity	Less than 0.1 at 80 Hz
Maximum Vibration Amplitude	Approximately 500 µm peak-to-peak
Amplitude Linearity	Less than 2%
Maximum Acceleration	Approximately 10 g continuous, 20 g intermittent
Damping Factor	Approximately 0.6% at 20°C
Resistance	Approximately 1723 Ω ±2%
Inductance	≤90 mH
Installation Type	Machinery casing mounted
Power Requirement	Passive electrodynamic sensor; no external excitation required
Heat Dissipation	Minimal passive sensor heat generation

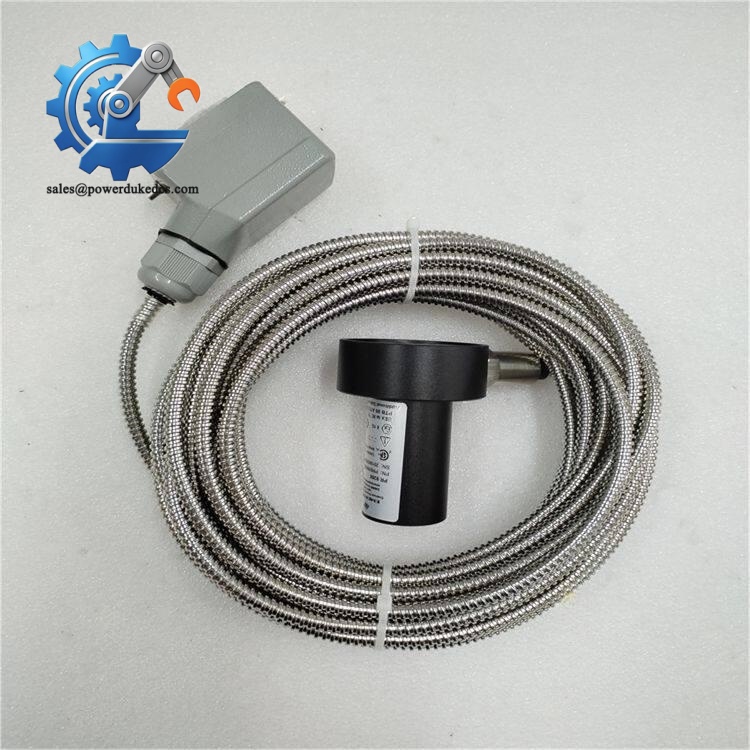

Emerson PR9268/303-000

5. ? Global Compliance & Industry Certifications

Expected regulatory considerations for the Emerson EPRO PR9268/303-000 include:

• CE Mark: Applicable for supported configurations meeting electromagnetic compatibility requirements.
• ATEX / IECEx: Available for selected PR9268 configurations used in hazardous-area machinery monitoring systems.
• UL/cUL Recognition: May apply through approved system installations.
• RoHS Compliance: Depends on manufacturing revision and production period.
• Marine Approvals (DNV GL): Applicable only when included in certified marine machinery monitoring packages.

For hazardous-area installations, the sensor approval cannot be evaluated alone. The complete measurement chain—including sensor, cable, barriers, junction equipment, and monitoring hardware—must remain within the approved design.

Verify specific lot certifications with OEM.

6. ? Long-Term Storage & Asset Preservation Guide

Keep the PR9268/303-000 inside sealed protective packaging during warehouse storage. Protect the cable termination and mounting threads from dust, moisture, and mechanical impact.

Maintain humidity below 60% RH and avoid storage near chemical processing areas. Corrosive vapors can degrade metallic surfaces and electrical connection points over long periods.

Inspect stored sensors every 12-24 months. Check the housing condition, cable jacket, identification label, and mounting threads. Before installation, verify the sensor orientation, sensitivity data, and calibration information against the machinery monitoring documentation.

7. Physical Installation Prerequisites

• Install the sensor on a clean, flat machinery casing surface.
• Confirm the mounting orientation matches the PR9268/303-000 configuration.
• Use the specified mounting hardware and torque values.
• Keep sensor cables away from high-current motor wiring and sources of electromagnetic interference.
• Verify grounding and shielding practices according to plant instrumentation standards.
• Protect the cable from abrasion, sharp bends, and excessive heat exposure.
• Maintain sufficient physical access for inspection and replacement.

8. Buyer’s FAQ (Logistics & Compliance Focus)

Q: What HS Tariff Code is commonly used for an Emerson PR9268/303-000 shipment?

A: Vibration measurement sensors are generally reviewed under HS classifications associated with measuring and testing instruments, commonly within heading 9031 or related instrumentation categories. The final classification depends on customs interpretation and declared function.

Q: Does Country of Origin affect import compliance?

A: Yes. COO documentation supports customs clearance, asset records, and customer audit requirements. Verify the country marking on the sensor label and supplier documentation before receiving.

Q: Should this vibration sensor ship with insurance coverage?

A: Recommended. The PR9268/303-000 contains precision mechanical sensing elements and calibrated measurement characteristics. Shipping damage may not be visually obvious but can affect vibration readings after installation.

Q: Does the PR9268/303-000 include firmware pre-loaded?

A: No. This is a passive electrodynamic velocity sensor and does not contain user-configurable firmware. The critical verification points are sensor model, orientation, sensitivity, cable configuration, and compatibility with the connected monitoring system.
