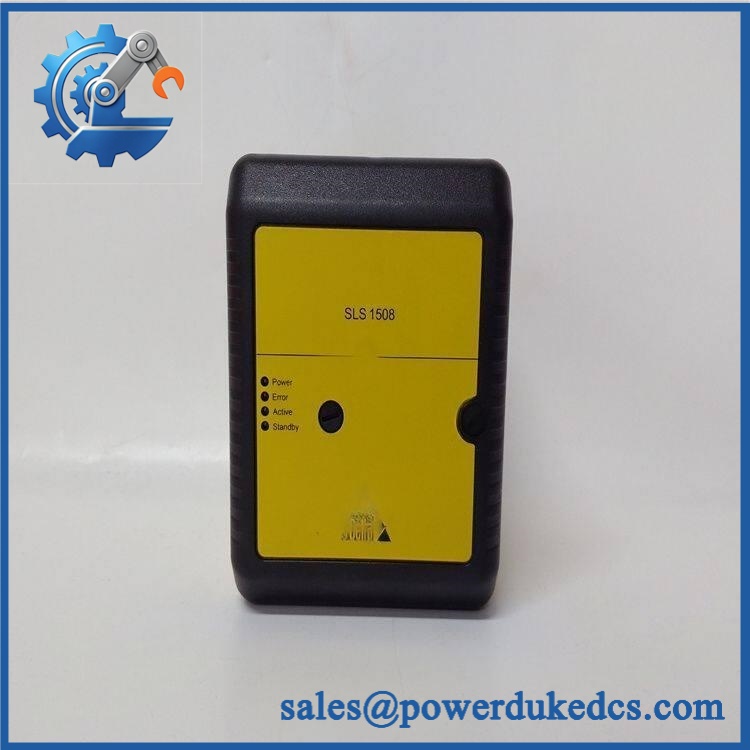

Emerson SLS1508 KJ2201X1-BA1 | ATEX Certified

Unboxing & Physical Snapshot

• Brand / Model: Emerson DeltaV SLS 1508 SIS Logic Solver, KJ2201X1-BA1. Emerson identifies this part specifically as an SLS 1508 Logic Solver.
• Physical dimensions: Approximately 84 × 102 × 112 mm (W × H × D) based on a published shipping specification for KJ2201X1-BA1. Treat this as a logistics reference rather than an OEM-certified dimensional drawing.
• Module weight: Published third-party references range from approximately 0.3–0.4 kg for the individual module, while a separate shipping specification lists approximately 0.9 kg. For freight planning, use the actual packed weight rather than the bare-module figure.
• System/redundant weight reference: Emerson’s current data sheet specifies 1.20 kg for the redundant SLS Logic Solver arrangement, with 24 W heat dissipation.
• What’s in the box: Logic Solver module; carrier/termination hardware only if explicitly included in the sales configuration; documentation should be confirmed against the purchase order. Do not assume terminal blocks or accessories are included.
• Identity control: Record the KJ2201X1-BA1 part number, serial number, date code, and product label before removing the ESD packaging (critical for traceability during SIS maintenance).

Product Introduction

Compliance-first architecture matters here. The KJ2201X1-BA1 is an Emerson DeltaV SIS SLS 1508 Logic Solver, not a generic PLC processor. The hardware is installed in the SIS architecture on an 8-wide carrier, using the designated yellow SIS terminal-block positions; redundant SLS arrangements occupy four carrier slots. Emerson specifies sixteen I/O channels for the SLS 1508, configurable for discrete and HART-related SIS functions.

The hazardous-area approval is equally important during physical replacement. Emerson’s instruction sheet identifies Class I Division 2, Class I Zone 2, and ATEX/UKEX Ex ec approvals for the KJ2201X1-BA1, with specific certificate numbers listed for the device family. Power must be removed before insertion or removal unless the installation area is confirmed non-hazardous (this is a field-maintenance requirement, not merely a shipping precaution).

Core Technical Specifications

Emerson specifically recommends separate power supplies for the SLS and the DeltaV controller/I/O. That distinction matters during cabinet power-budget reviews because the 4 A field-power figure represents field loads rather than simply processor consumption.

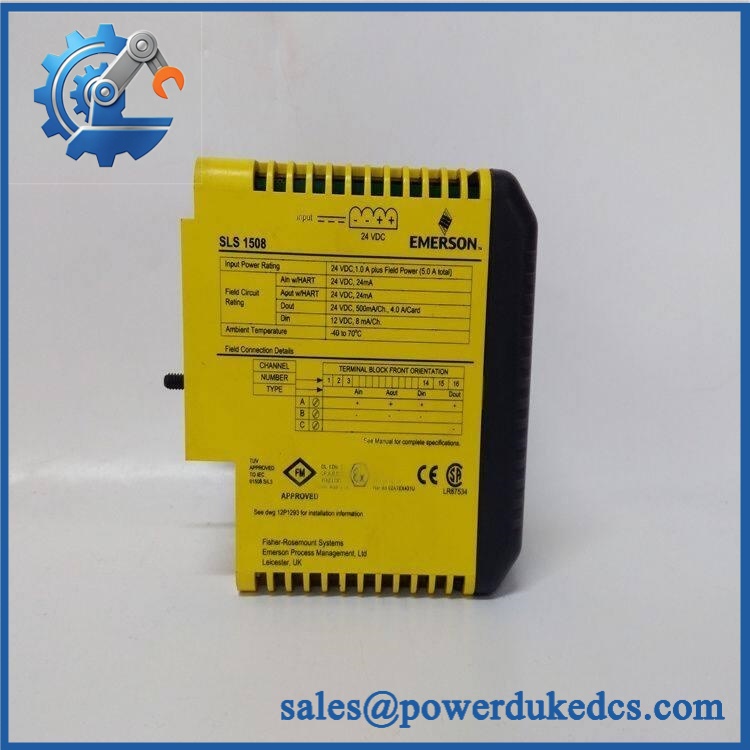

Emerson SLS1508 KJ2201X1-BA1

? Global Compliance & Industry Certifications

The has unusually important compliance documentation because it is SIS hardware intended for potentially hazardous process environments.

• ATEX: Emerson documentation identifies II 3G Ex ec IIC Gc, including certificate references FM16ATEX0056U and FM21UKEX0017U.
• North American hazardous locations: Emerson identifies Class I, Division 2, Groups A, B, C, D and Class I Zone 2 AEx/Ex ec IIC Gc, with FM and Canadian approval references.
• IECEx: Do not assume an IECEx certificate solely because an ATEX approval exists. Verify the exact product label and certificate package for the supplied revision.
• CE Mark: Check the physical nameplate and Emerson Declaration of Conformity for the exact product revision rather than treating CE status as a generic DeltaV-family attribute.
• Marine approvals: DNV or other marine approvals should not be presumed unless specifically stated on the product documentation for the supplied configuration.
• Functional safety: The SLS 1508 is identified by Emerson as a SIL 3-rated Logic Solver platform. Functional-safety compliance applies to the engineered SIS configuration and lifecycle procedures, not simply possession of a spare module.

A hazardous-location rating controls whether electrical equipment can be installed in a classified atmosphere without creating an unacceptable ignition risk under the applicable installation conditions. Never substitute a visually identical controller lacking the required certification marking.

Verify specific lot certifications with OEM.

? Long-Term Storage & Asset Preservation Guide

Keep the module inside its original ESD shielding bag until installation. The exposed connector and electronic assemblies should not sit directly on ordinary shelving, and repeated handling without an ESD-controlled workstation creates an avoidable latent-failure risk.

Control the warehouse environment. Emerson specifies an operating humidity range of 5–95% non-condensing, but long-term storage should be materially more conservative—target below 60% RH where practical, with no condensation or rapid temperature cycling. The G3 airborne-contaminant classification also means contaminated industrial storage areas deserve particular attention.

Preserve traceability with the hardware. Retain the original label, serial number, date code, certificate references, and packaging documentation together (especially important for SIS spares that may remain on the shelf for several turnaround cycles). Do not open, modify, or attempt component-level repair; Emerson’s instruction sheet states that the unit contains no user-serviceable parts.

Before deployment, inspect the connector surfaces, housing, retaining hardware, and label condition. If corrosion, contamination, cracked plastic, or compromised ESD packaging is found, quarantine the spare rather than placing it directly into a safety loop.

Emerson SLS1508 KJ2201X1-BA1

Physical Installation Prerequisites

• Install the SLS 1508 in the designated 8-wide DeltaV SIS carrier using the specified yellow SIS terminal-block arrangement.
• Do not treat this as a conventional DIN-rail PLC module; its mounting architecture is carrier-based.
• Maintain cabinet clearance in accordance with the current Emerson DeltaV M-Series hardware installation documentation. Do not impose a generic 50 mm clearance rule where the OEM cabinet drawing specifies something different.
• Provide a clean protective-earth/grounding arrangement for the carrier and cabinet according to the DeltaV installation documentation.
• Confirm the 24 VDC supply has adequate capacity for both the SLS and connected field loads.
• Keep SLS power separate from DeltaV controller/I/O supplies where required by the Emerson power architecture.
• For hazardous-area work, de-energize field power before removing or installing the device unless the area has been verified non-hazardous.
• After replacement, perform the required SIS functional verification before returning the safety function to service.

Buyer’s FAQ

What HS tariff code should be used for international shipment?

A published commercial listing gives HS/tariff code 8538907080 for this part, but that classification should be treated as a reference rather than a universal customs ruling. The correct HS code can depend on the importing country’s tariff schedule and the declared function of the equipment.

Does the Country of Origin affect the shipment?

Yes. COO must be established from the actual unit and commercial documentation, not inferred from the Emerson brand. Record the country shown on the product documentation and use the appropriate origin statement on the commercial invoice and Certificate of Origin when required.

Should I insure the shipment?

For a high-value SIS spare, yes—particularly when the replacement is being transported internationally or through multiple freight handoffs. Use the actual commercial value and packed weight, photograph the unopened package before dispatch, and retain serial-number evidence for any potential freight claim.

Does arrive with the latest firmware?

Do not assume it does. The hardware part number identifies the physical SLS 1508, while compatibility depends on the installed DeltaV SIS software environment and hardware revision. Emerson documentation identifies software prerequisites for SLS1508 systems, and the current platform documentation should be checked against the site’s DeltaV release before installation.

For an incoming spare, record the firmware/software revision if accessible, serial number, date code, and hardware identification before issuing it to maintenance. A physically correct SLS is not automatically a configuration-compatible SLS.
