- Emerson VE4006P2 | UL Industrial DCS Communication Card
2. Unboxing & Physical Snapshot
- Model & Brand: Emerson VE4006P2
- Product Type: DeltaV M-Series Serial Interface Card, 2-Port
- Application: DeltaV distributed control system communication interface module used for serial device integration. The VE4006P2 includes one serial interface card and one simplex terminal block. It supports connection of external serial devices through RS-232, RS-422, and RS-485 communication standards.
- Approximate Physical Dimensions (W × H × D):
- Estimated: 120 × 180 × 25 mm
- M-Series card format designed for DeltaV I/O subsystem installation.
- Estimated Shipping Weight: Approximately 0.3 kg (0.62 lb) for the card assembly; export packaging may increase shipping weight.
- What’s in the Box:

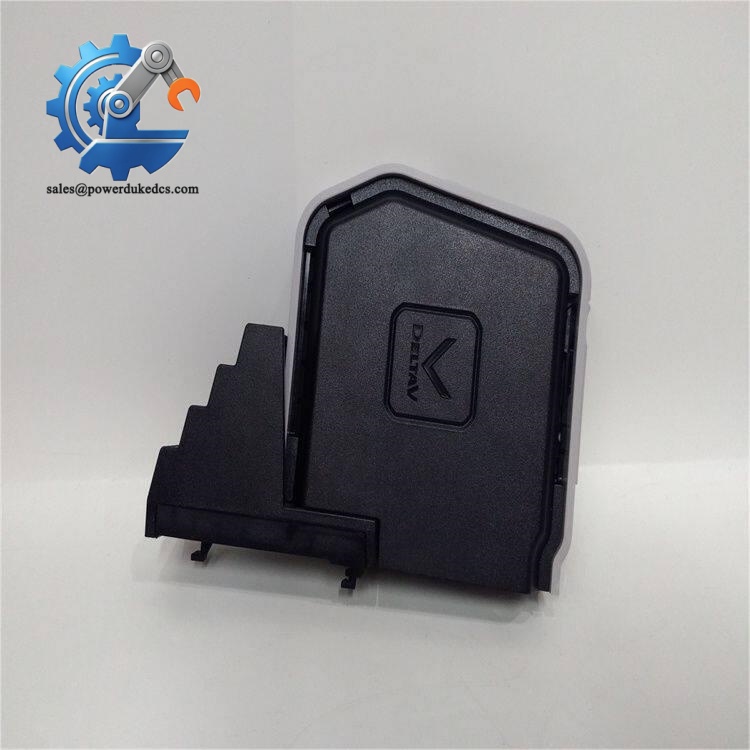

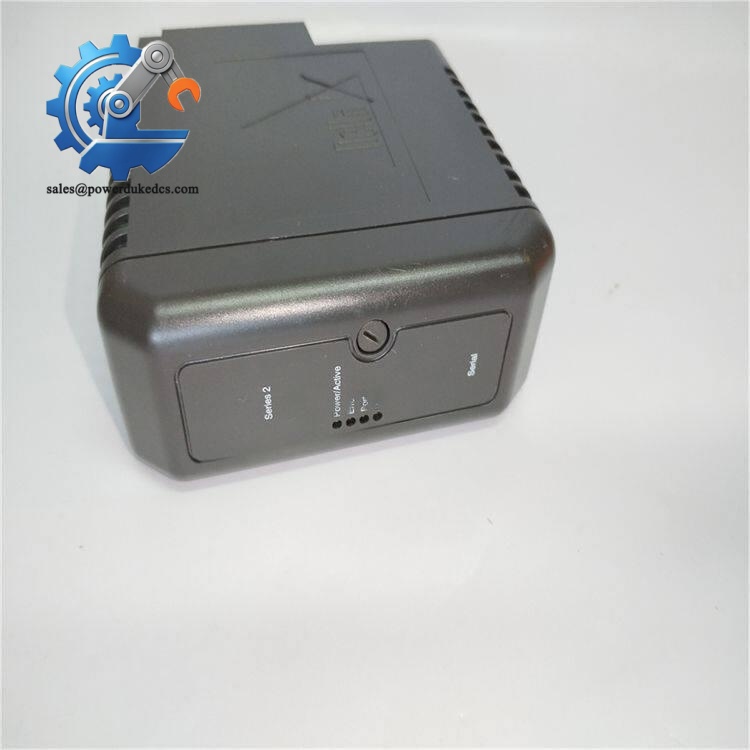

- Emerson VE4006P2 Serial Interface Card
- Simplex terminal block
- Card identification label
- Protective anti-static ESD packaging
- Documentation when supplied with controlled inventory
3. Product Introduction
The VE4006P2 mounts into the Emerson DeltaV M-Series I/O architecture, providing a controlled communication path between DeltaV controllers and external serial devices. The module is designed for integration with MQ, MX, and PK controller environments, supporting serial communications without requiring separate standalone communication hardware (which is important in brownfield upgrades where cabinet space is limited).
This module should be managed as a controlled automation spare. Inspect the card edge connector, terminal block contacts, retaining hardware, and PCB condition before installation. Serial interface faults are often caused by wiring, grounding, or parameter mismatches rather than the card itself. Verify baud rate, parity, and protocol settings before replacing a functioning communication path.
4. Core Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Emerson |
| Model Number | VE4006P2 |
| Product Family | DeltaV M-Series |
| Module Type | Serial Interface Card |
| Number of Ports | 2 serial ports |
| Included Terminal Block | Simplex terminal block |
| Compatible Controllers | DeltaV MQ, MX, PK controllers |
| Serial Interfaces | RS-232, RS-422/485 half duplex, RS-422/485 full duplex |
| Communication Protocol | Modbus drivers pre-installed |
| Data Capacity | 32 data sets per card (16 per port) |
| Baud Rate Range | 300 to 115200 baud |
| Parity Support | Even, Odd, None |
| Port Isolation | Each port isolated from system and other ports |
| Supply Voltage | 12 VDC |
| Current Consumption | Approximately 300 mA |
| Power Consumption | Approximately 3.6 W |
| Processor | Embedded communication electronics |
| Memory | Internal configuration storage |
| Firmware | Factory-installed module firmware |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5–95% RH, non-condensing |
| Protection Rating | IP20 |
Emerson VE4006P2
5. Global Compliance & Industry Certifications
Expected compliance considerations for the Emerson VE4006P2 include:
- CE Mark for applicable EMC requirements within DeltaV installations.
- UL/cUL Listed or Recognized status may apply when installed as part of the certified DeltaV control system.
- ATEX / IECEx Zone 2 approval consideration: DeltaV M-Series serial interface hardware documentation lists hazardous-area ratings including II 3G Ex nA IIC T4 Gc for applicable installations.
- FM Class I Division 2 approval consideration for North American hazardous locations.
- IEC 61508 relevance may apply when installed within a validated safety-related control architecture.
- Marine approvals such as DNV GL may apply only when incorporated into an approved marine automation package.
Hazardous-area certification matters because Class I Division 2 and Zone 2 ratings confirm that the equipment design limits ignition risk under defined abnormal operating conditions.
Verify specific lot certifications with OEM.
6. Long-Term Storage & Asset Preservation Guide
- Keep the VE4006P2 inside its original anti-static ESD shielding bag until installation. Protect the card edge connector from oxidation and contamination.
- Maintain storage humidity below 60% RH. Excess moisture can affect PCB coatings, connector surfaces, and terminal block contacts.
- Inspect stored cards every 12–24 months. Record serial number, hardware revision, firmware revision, and packaging condition.
Check the terminal block.
Avoid storing communication cards near high-current equipment, corrosive chemicals, or areas with large temperature fluctuations. Small connector issues can create difficult intermittent communication failures after startup.
7. Physical Installation Prerequisites
- Install only within a compatible DeltaV M-Series I/O subsystem carrier.
- Confirm controller compatibility before replacement:
- MQ Controller
- MX Controller
- PK Controller
- Verify terminal block seating before connecting field wiring.
- Maintain proper grounding for RS-422/485 communication wiring.
- Keep serial communication cables separated from high-voltage power conductors.
- Maintain cabinet airflow. Leave approximately 50 mm clearance around rack assemblies where cabinet design permits.
- Use grounded ESD protection during handling.
- Confirm communication parameters before commissioning:
- Baud rate
- Parity
- Data format
- Device address
Emerson VE4006P2
8. Buyer’s FAQ (Logistics & Compliance Focus)
Q: What HS Tariff Code is commonly reviewed for the Emerson VE4006P2?
A: Industrial communication interface cards are commonly evaluated under HS 8538 / HS 853890 categories as parts of electrical control equipment. Final classification depends on customs interpretation and destination-country requirements.
Q: Why does Country of Origin (COO) documentation matter for this DeltaV card?
A: COO supports customs clearance, automation asset traceability, and maintenance audit records. The COO should match the commercial invoice, packing list, and module identification label.
Q: Is shipping insurance recommended for the VE4006P2?
A: Yes. The module contains precision PCB assemblies and communication components. Use ESD packaging, anti-impact protection, and declared-value shipping coverage.
Q: Does the VE4006P2 include the latest firmware pre-loaded?
A: The module is supplied with factory-installed firmware, but the exact revision depends on production history. Confirm firmware compatibility with the installed DeltaV system version before commissioning.
