1. Emerson VE4003S2B10 | Traceable DeltaV Analog I/O Module

2. Unboxing & Physical Snapshot

• Brand & Model: Emerson VE4003S2B10
• Product Category: DeltaV M-Series Traditional I/O Analog Input Terminal Block
• Application: DeltaV DCS Series 2 Plus analog input termination hardware. The VE4003S2B10 is identified as a 16-channel 2-wire and 4-wire analog input terminal block for Series 2 Plus applications.
• Approximate Physical Dimensions: Approximately 5.0 × 4.0 × 2.0 in (127 × 102 × 51 mm), depending on terminal cover and mounting accessories.
• Estimated Shipping Weight: Approximately 1.0-1.5 lb (0.45-0.7 kg) with protective packaging.
• What’s in the Box:
  • Emerson DeltaV VE4003S2B10 terminal block assembly
  • Terminal cover and identification markings (when supplied)
  • Mounting hardware where included
  • Original anti-static packaging for controlled inventory storage
  • Documentation when provided with OEM shipment

3. Product Introduction

The Emerson VE4003S2B10 is installed at the field termination layer of a DeltaV control system, where accurate signal routing and reliable cabinet organization directly affect commissioning quality. This Series 2 Plus analog input terminal block supports 16-channel AI connections for compatible DeltaV I/O architectures (verify the associated I/O card model before replacement).

This component does not process signals independently; it provides the physical interface between field wiring and the DeltaV analog input hardware. Installation quality matters. Inspect terminal screws, connector interfaces, and mounting clips before service work (loose hardware can create intermittent field signal issues that are difficult to reproduce).

4. Core Technical Specifications

Parameter	Value
Manufacturer	Emerson
Model Number	VE4003S2B10
Product Family	DeltaV M-Series Traditional I/O
Product Type	Analog Input Terminal Block
I/O Type	Analog Input
Channel Capacity	16 channels
Signal Support	2-wire and 4-wire analog input devices
Compatible Platform	DeltaV Series 2 Plus I/O
Mounting Method	DeltaV I/O carrier / cabinet mounting system
Connection Type	Field terminal wiring interface
Power Requirement	Supplied through associated DeltaV I/O system
Power Consumption	Passive termination hardware; minimal internal consumption
Heat Dissipation	Negligible compared with active I/O electronics
Operating Environment	Industrial control cabinet
Wiring Function	Field signal termination and routing
Protection Requirement	Controlled cabinet environment

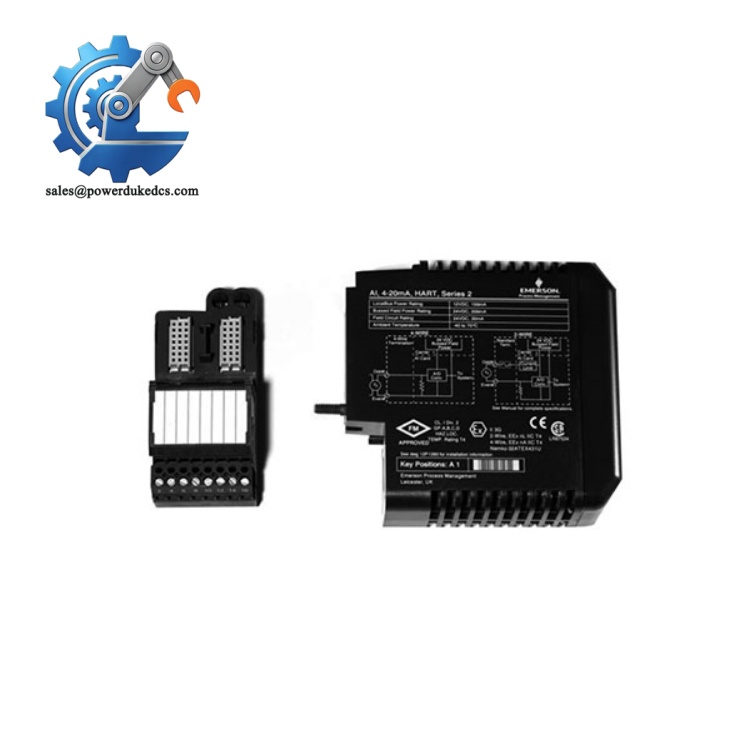

Emerson VE4003S2B10

5. Global Compliance & Industry Certifications

Expected regulatory approvals and compliance considerations for this class of industrial DCS hardware may include:

• CE Mark for applicable EMC and electrical requirements.
• UL/cUL Recognition or Listing when installed as part of an approved DeltaV control assembly.
• ATEX/IECEx consideration when used with certified hazardous-area signal interfaces.
• Marine approvals such as DNV GL where installed in approved offshore or vessel automation systems.

For hazardous-area installations, certification compatibility between the terminal block, barriers, I/O cards, and field devices is essential. A single mismatched component can invalidate the approved installation design.

Verify specific lot certifications with OEM.

6. Long-Term Storage & Asset Preservation Guide

• Store the VE4003S2B10 inside its original protective packaging until installation. Keep terminal contacts covered to prevent dust contamination and oxidation.
• Maintain storage humidity below 60% RH. Excess moisture can affect terminal plating and mounting hardware over long periods.
• Inspect stored units annually for corrosion, damaged terminal screws, and label deterioration. Avoid stacking heavy cartons directly on terminal assemblies (plastic housings and clips can deform under long-term pressure).

7. Physical Installation Prerequisites

• Confirm compatibility with the DeltaV Series 2 Plus I/O card before installation.
• Install inside a clean, grounded control cabinet with controlled environmental conditions.
• Maintain approximately 50 mm clearance above and below cabinet assemblies where required for airflow and maintenance access.
• Verify cabinet grounding and shield termination practices before landing field wiring.
• Tighten field terminals according to approved installation procedures.
• Separate analog signal wiring from high-current power conductors to reduce electrical interference.

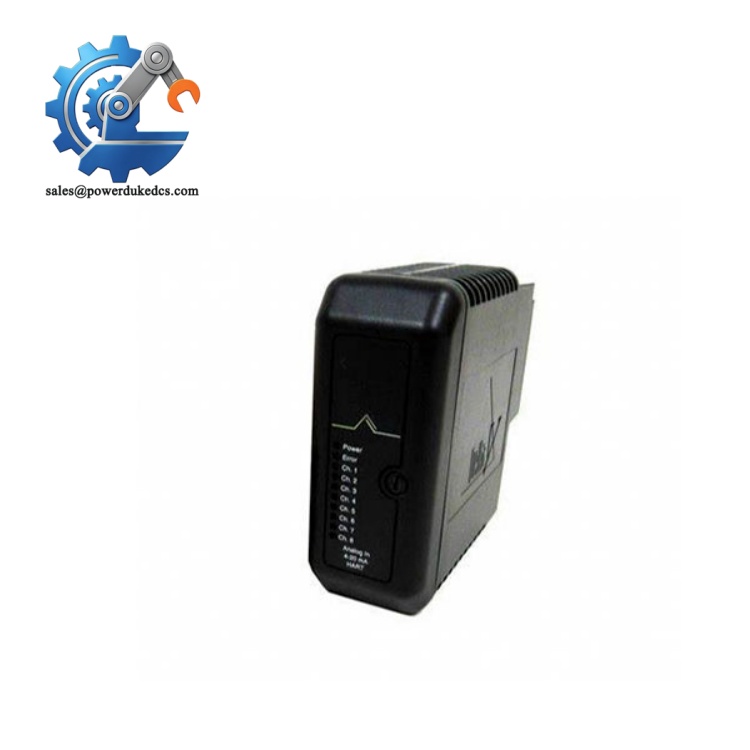

  Emerson VE4003S2B10

8. Buyer’s FAQ (Logistics & Compliance Focus)

Q: What HS Tariff Code is commonly reviewed for the Emerson VE4003S2B10?
A: Industrial DCS terminal blocks are commonly evaluated under electrical control and connection equipment classifications. The final HS code depends on customs interpretation, destination country requirements, and the declared function of the hardware.

Q: Does Country of Origin (COO) documentation matter for this DeltaV spare?
A: Yes. COO records support customs clearance, supplier qualification, and lifecycle asset tracking. Retain OEM labels, supplier paperwork, and receiving inspection records.

Q: Should shipping insurance be purchased for this terminal block?
A: Yes. Although passive, terminal assemblies can suffer physical damage during transport, including cracked housings, bent clips, or damaged screw terminals. Use rigid packaging and declared-value coverage.

Q: Does the VE4003S2B10 include the latest firmware pre-loaded?
A: No. This is a passive termination component and does not contain firmware. System compatibility depends on the associated DeltaV I/O card, controller configuration, and software revision.
