EPRO MMS6120 | Original EPRO Condition Monitoring Spare

2. Unboxing & Physical Snapshot

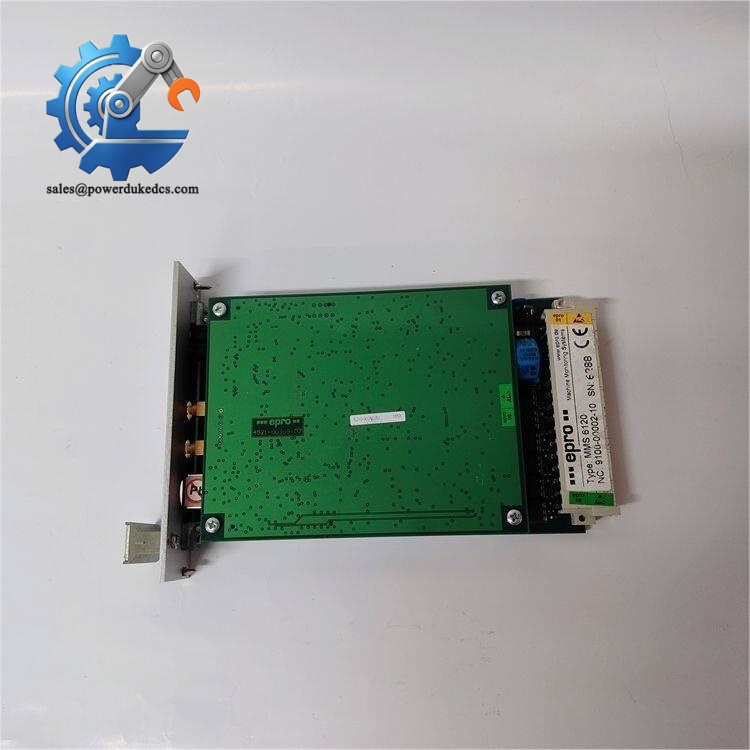

Model & Brand: EPRO MMS6120 Dual Channel Bearing Vibration Monitor, part of the MMS6000 machinery protection system. The module monitors bearing vibration using compatible electrodynamic vibration sensors such as PR 9266 and PR 9268 series devices.
Approximate Physical Dimensions:
- DIN 41494 EURO card format
- Width: 30 mm (6 TE)
- Height: 128.4 mm (3 HE)
- Length: 160 mm
- PCB size: 100 × 160 mm
Estimated Shipping Weight:
- Net weight: approximately 320 g (0.7 lb)
- Gross weight with export packaging: approximately 450 g (1.0 lb)
What’s in the Box:
- EPRO MMS6120 vibration monitor module
- ESD shielding bag
- Protective foam insert
- Module identification label
- Installation documentation when supplied
- Configuration accessories only when ordered separately

3. Product Introduction

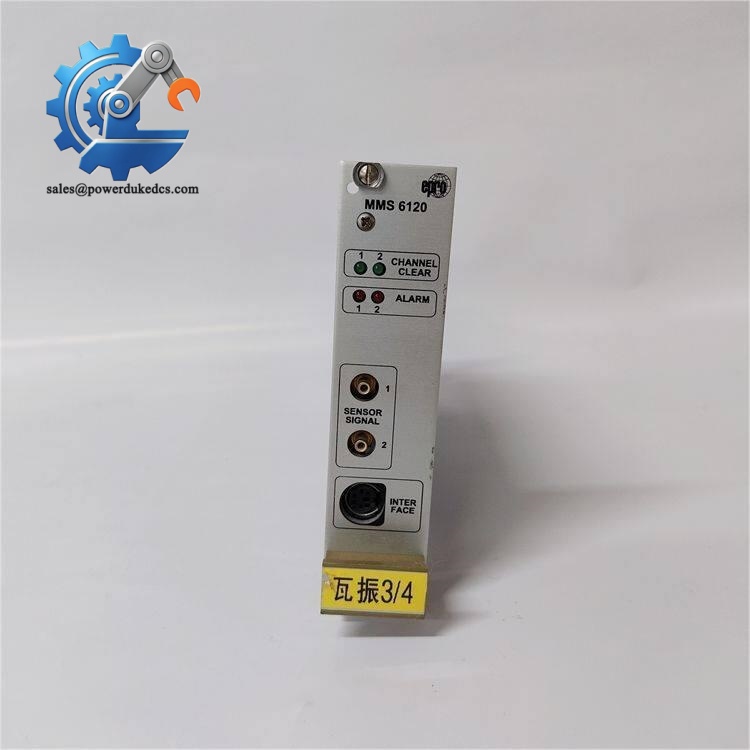

The MMS6120 occupies a dedicated slot within an EPRO MMS6000 19-inch machinery protection rack, where the EURO card assembly connects through the rear backplane interface. It provides two independent vibration measurement channels for rotating equipment protection, with front-panel access for configuration and diagnostics (which is critical during turbine maintenance activities where replacement time is limited).

This module is built for machinery protection applications rather than general condition monitoring. Steam turbines, gas turbines, compressors, pumps, and similar rotating assets rely on accurate bearing vibration measurement to identify mechanical problems before damage occurs. Inspect the edge connector, front-panel interface, and card guides before installation. Contact contamination can produce unstable readings that resemble sensor faults.

4. Core Technical Specifications

Parameter	Value
Manufacturer	EPRO
Model Number	MMS6120
Product Type	Dual Channel Bearing Vibration Monitor
System Family	MMS6000 Machinery Protection System
Order Number	9100-00002
Measurement Channels	2 independent channels
Sensor Type	Electrodynamic vibration velocity sensors
Compatible Sensors	PR 9266 / PR 9268 series
Input Resistance	>100 kΩ
Input Voltage Range	-5 to +15 VDC
Measurement Frequency Range	10 Hz to 1000 Hz
Vibration Velocity Range	5 mm/s to 100 mm/s VRMS
Displacement Measurement	Approximately ±25 μm to ±500 μm
Measurement Resolution	10-bit
Accuracy	Approximately ±2% of reading
Alarm Functions	Two adjustable alarm levels per channel
Power Supply	24 VDC redundant inputs
Communication Interface	RS-232 local configuration / RS-485 network
Output Signals	0–20 mA or 4–20 mA characteristic outputs
Dynamic Output	0–20 Vpp analysis output
Mounting Format	DIN 41494 EURO card
Operating Temperature	Approximately -20°C to +60°C
Storage Temperature	Approximately -30°C to +85°C
Power Dissipation	Low-power monitoring electronics

EPRO MMS6120

5. Global Compliance & Industry Certifications

Expected regulatory approvals and compliance considerations for the EPRO MMS6120 include:

CE Mark compliance
RoHS compliance depending on manufacturing revision
API 670 application compatibility when integrated into approved machinery protection systems
VDI 2056 / VDI 2059 vibration monitoring standards alignment
ATEX/IECEx suitability only when installed within an approved hazardous-area system arrangement
UL/cUL recognition where applicable to the complete rack assembly
Marine approvals such as DNV GL only when included in a qualified marine package

CE compliance is important because machinery protection modules must maintain electromagnetic compatibility and electrical safety performance in industrial environments. Hazardous-area suitability depends on the complete installation design, including rack, enclosure, wiring, and connected sensors.

Verify specific lot certifications with OEM.

6. Long-Term Storage & Asset Preservation Guide

Keep the MMS6120 sealed inside its original anti-static (ESD) packaging during warehouse storage. Protect the EURO card edge connector because oxidation on those contacts can create intermittent rack communication problems.

Maintain storage humidity below 60% RH and avoid locations exposed to corrosive gases, conductive dust, or chemical vapors. The PCB surface and connector plating require a clean storage environment.

Inspect before issuing the spare. Record the serial number, hardware revision, date code, and previous configuration history. For machinery protection cards, configuration records are often as important as the physical module itself.

7. Physical Installation Prerequisites

Install only in a compatible EPRO MMS6000 rack system.
Confirm the correct rack slot assignment before insertion.
Use ESD protection when handling the circuit board.
Verify rear connector alignment before applying insertion force.
Secure the retaining hardware after installation.
Maintain approximately 50 mm clearance above and below cabinet ventilation paths where practical.
Confirm redundant 24 VDC supply wiring and cabinet grounding.
Inspect sensor wiring shields and termination points before commissioning.
EPRO MMS6120

8. Buyer’s FAQ (Logistics & Compliance Focus)

Q: What HS Tariff Code is commonly used for the EPRO MMS6120?

A: The MMS6120 is generally evaluated under HS classifications covering electronic monitoring and control equipment, commonly within HS 8537 categories. The final Harmonized System classification depends on the importing country’s customs interpretation and declared equipment function. Confirm the tariff code with your customs broker before export.

Q: Does Country of Origin affect this machinery protection module?

A: Yes. Country of Origin affects customs clearance, project documentation, and supplier qualification records. EPRO products are historically associated with German manufacturing, but the actual COO must be verified against the physical label and shipping documents.

Q: Should shipping insurance be purchased for the MMS6120?

A: Recommended. The module is physically small, but it supports critical rotating equipment protection functions. Use ESD packaging, shock-resistant materials, and insured freight with receiving inspection records.

Q: Does the EPRO MMS6120 include the latest firmware pre-loaded?

A: Firmware and configuration status depend on the module revision and previous service history. The MMS6120 is a configurable protection module, not a consumer plug-in device. Verify rack compatibility, parameter settings, and approved configuration files before commissioning.
