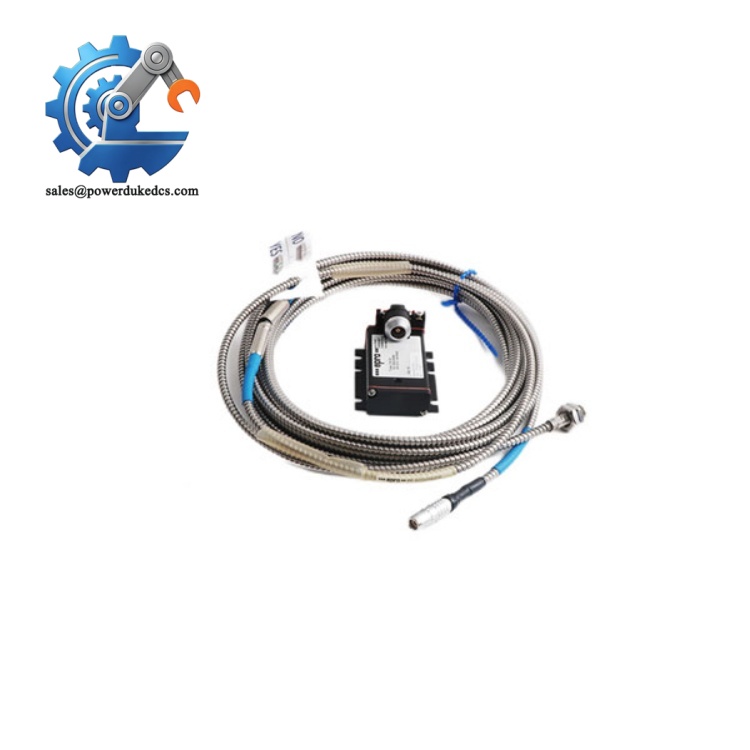

- EPRO PR6423/010-040+CON021 | Authentic Displacement Set
2. Unboxing & Physical Snapshot
- Model & Brand: EPRO PR6423/010-040 + CON021
- Product Type: 8 mm eddy current displacement measurement system consisting of PR6423 proximity probe and CON021 signal converter. The assembly is designed for shaft displacement, vibration, eccentricity, and position monitoring on rotating machinery.
- Approximate Physical Dimensions (W × H × D):
- PR6423/010-040 Probe: Approximately 8 mm probe diameter with extended cable assembly; total cable length configuration is approximately 8 m.
- CON021 Converter: Approximately 56 × 56 × 72 mm panel-mount housing.
- Estimated Shipping Weight: Approximately 0.5-1.2 kg including converter, probe, protective packaging, and transport inserts.
- What’s in the Box:
- EPRO PR6423/010-040 eddy current probe
- CON021 signal converter
- LEMO sensor connection interface
- Mounting hardware for converter
- Protective ESD packaging
- Calibration identification information
- Documentation package when supplied
3. Product Introduction
The EPRO PR6423/010-040 + CON021 measurement chain is installed where the machinery protection cabinet depends on accurate shaft displacement feedback. The stainless-steel probe mounts near the rotating target surface, while the CON021 converter transforms the eddy current signal into a monitoring output used by vibration protection systems (which is critical during turbine startup, load changes, and trip events).
This configuration is commonly applied on steam turbines, gas turbines, compressors, pumps, and other rotating assets requiring continuous condition monitoring. The PR6423/010-040 version uses an 8 m cable configuration, and the converter provides the required signal conditioning for the measurement chain. Verify probe gap, calibration range, and converter compatibility before installation because incorrect pairing can produce inaccurate shaft position readings.
4. Core Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | EPRO / Emerson |
| Model | PR6423/010-040 + CON021 |
| Product Type | Eddy Current Displacement Measurement System |
| Probe Type | Non-contact 8 mm proximity probe |
| Converter Type | CON021 Signal Converter |
| Measurement Principle | Eddy current electromagnetic sensing |
| Primary Applications | Shaft displacement, vibration, eccentricity, speed/key monitoring |
| Cable Length | Approximately 8 m |
| Probe Thread | M10 × 1 or 3/8″-24 UNF configuration depending order code |
| Measuring Range | Approximately ±0.5 mm linear range |
| Sensitivity | 8 V/mm ±5% |
| Initial Air Gap | Approximately 0.5 mm reference gap |
| Frequency Response | 0-20 kHz |
| Probe Operating Temperature | Approximately -35°C to +180°C |
| Converter Operating Temperature | Approximately -30°C to +100°C |
| Converter Supply Voltage | Approximately -23 to -32 VDC |
| Converter Output | Voltage output configuration dependent |
| Probe Protection | Approximately IP66/IP67 class depending installation |
| Converter Protection | IP20 |
| Converter Weight | Approximately 120 g |
| Heat Dissipation | Low; converter generates primary thermal load |
EPRO PR6423/010-040+CON021
5. ? Global Compliance & Industry Certifications
Expected regulatory approvals and compliance considerations for the EPRO PR6423/010-040 + CON021 include:
- CE Mark: Applicable for supported Emerson EPRO machinery monitoring configurations.
- ATEX / IECEx: Available for selected sensor and converter combinations when ordered with the correct hazardous-area approval options.
- UL/cUL Recognition: May apply depending on system configuration and regional market requirements.
- Marine Approvals (DNV GL): Applicable only when included within approved marine machinery monitoring systems.
- API 670 Compatibility: The PR6423 family is commonly applied in machinery protection systems following API 670 practices.
For hazardous-area service, the certification boundary includes the complete measurement loop: probe, converter, cable, barriers, and monitoring hardware. A certified probe alone does not guarantee an approved installation.
Verify specific lot certifications with OEM.
6. ? Long-Term Storage & Asset Preservation Guide
Keep the PR6423/010-040 probe and CON021 converter inside original anti-static shielding packaging until deployment. The LEMO connector, converter terminals, and calibration-sensitive electronics should not be exposed unnecessarily.
Maintain warehouse humidity below 60% RH. Avoid storage near chemical processing areas, salt air, or battery charging rooms because connector surfaces and metallic probe components can develop oxidation.
Inspect every 12-24 months. Check the probe tip, cable jacket, converter housing, terminal screws, and identification labels. Before installation, confirm the calibration information and verify the probe gap procedure against the machinery monitoring documentation.
7. Physical Installation Prerequisites
- Install the PR6423 probe perpendicular to the shaft measurement surface.
- Verify the target material is compatible with eddy current measurement.
- Adjust the probe gap according to calibration requirements before operation.
- Mount the CON021 converter on a clean panel surface using the specified mounting holes.
- Maintain at least 50 mm clearance around cabinet ventilation paths where enclosure design permits.
- Connect protective earth according to plant instrumentation standards.
- Route sensor cables away from motor feeders, VFD output cables, and high-current conductors.
- Protect the probe cable from abrasion, sharp bends, and excessive heat exposure.
8. Buyer’s FAQ (Logistics & Compliance Focus)
Q: What HS Tariff Code is commonly used for EPRO PR6423/010-040 + CON021 shipments?
A: Eddy current displacement measurement equipment is generally reviewed under HS classifications associated with measuring and testing instruments, commonly within heading 9031. Final classification depends on customs interpretation and declared product function.
Q: Why does Country of Origin documentation matter for this sensor system?
A: COO records support customs clearance, warranty tracking, and machinery protection asset audits. Confirm the origin marking on both the probe and converter documentation before receiving inspection.
Q: Is shipping insurance recommended for this item?
A: Yes. The probe contains precision sensing components, while the converter contains calibration-related electronics. Transportation shock or moisture exposure may create failures that only appear during commissioning.
Q: Does the PR6423/010-040 + CON021 include the latest firmware pre-loaded?
A: No. The PR6423 probe and CON021 converter are measurement hardware devices and do not operate with user-loaded firmware. Verification should focus on calibration data, converter type, probe length, and compatibility with the installed machinery protection system.
