1. Emerson A6370D | Authentic Turbine Protection Module

2. Unboxing & Physical Snapshot

• Model & Brand: Emerson EPRO A6370D
• Product Type: AMS 6300 SIS Overspeed Protection Monitor, single-channel speed monitoring module with display interface for safety instrumented systems. The A6370D is part of the AMS 6300 SIS platform and is installed with an A6371 system backplane in a 19-inch rack assembly.
• Approximate Physical Dimensions (W × H × D): Approximately 40 × 128 × 250 mm per plug-in module format (final rack dimensions depend on the A6371 backplane and cabinet arrangement)
• Estimated Shipping Weight: Approximately 1.0-1.5 kg including ESD packaging and protective inserts
• What’s in the Box:
  • Emerson EPRO A6370D Overspeed Protection Monitor
  • Front display assembly
  • Rear connector interface
  • Protective ESD shielding bag
  • Conductive transport foam
  • Identification label with serial number and revision data
  • Documentation package when available

3. Product Introduction

The Emerson EPRO A6370D is installed as part of the AMS 6300 SIS overspeed protection architecture, where the physical rack arrangement directly affects safety system availability. The module mounts into the A6371 backplane inside a 19-inch rack and processes speed sensor signals from eddy-current, Hall-effect, or magnetic pickup sensors. (Rack slot assignment and backplane wiring must match the approved safety design.)

Designed for critical rotating equipment, the A6370D provides one-channel speed monitoring for overspeed protection applications such as turbines and high-energy rotating machinery. It supports sensor input evaluation, safety logic processing, diagnostics, and output signaling within the AMS 6300 SIS platform. This module is commonly maintained as a controlled spare because replacement hardware must match the certified safety configuration.

4. Core Technical Specifications

Parameter	Value
Manufacturer	Emerson EPRO
Model	A6370D
Product Family	AMS 6300 SIS Overspeed Protection System
Product Type	Single-channel overspeed protection monitor
Mounting System	19-inch rack with A6371 backplane
Rack Height	3U system height
Rack Width	84 HP system width
Sensor Compatibility	Eddy-current, Hall-effect, magnetic VR sensors
Sensor Input Frequency Range	0 to 20 kHz
Eddy Current/Hall Input Range	0 to 26 V
Magnetic Sensor Input Range	Minimum 1 Vpp to maximum 30 V RMS
Sensor Supply Voltage	-24.5 VDC ±1.5 V
Sensor Supply Current	Maximum 35 mA
Digital Inputs	4 galvanically separated inputs
Current Outputs	2 isolated 0/4-20 mA outputs
Power Supply	24 VDC nominal system supply
Maximum Power Consumption	Approximately 30 W system value
Communication Option	Profibus version available as A6370D/DP
Safety Application	Overspeed protection monitoring
Heat Dissipation	Approximately 30 W maximum system thermal load

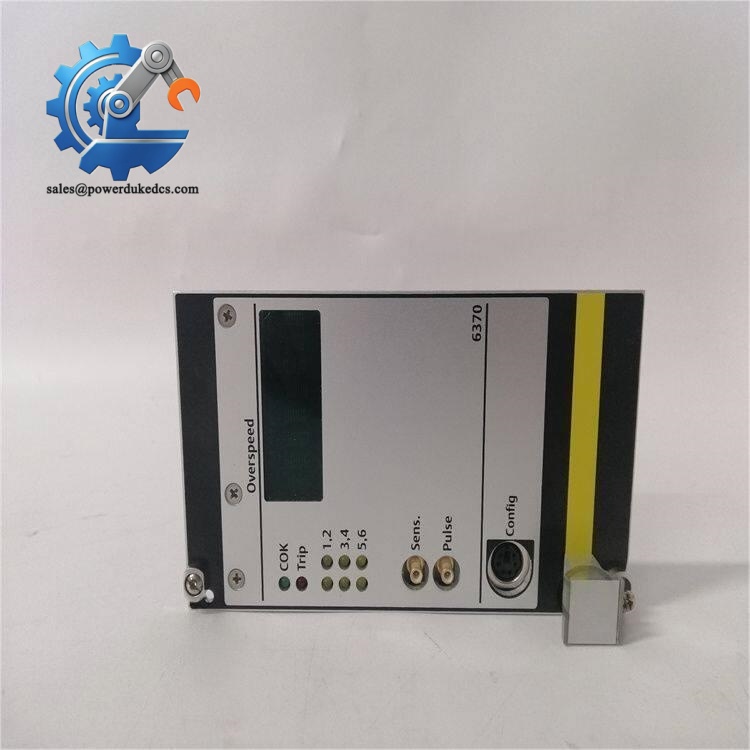

Emerson A6370D

5. ? Global Compliance & Industry Certifications

Expected regulatory approvals and compliance considerations for the Emerson EPRO A6370D include:

• CE Mark: Applicable for supported AMS 6300 SIS configurations meeting EMC requirements.
• IEC 61508 SIL Certification: The AMS 6300 SIS platform is designed for safety instrumented applications requiring functional safety evaluation.
• ATEX / IECEx: Applicable only for approved system configurations installed with certified sensors and associated equipment.
• UL/cUL Recognition: May apply depending on the complete safety system installation.
• Marine Approvals (DNV GL): Applicable only when included in a certified marine machinery protection package.

Functional safety certification is especially important for overspeed protection because the system may be responsible for initiating shutdown of high-energy rotating equipment. The complete loop—including sensor, wiring, backplane, power supply, and final shutdown logic—must remain within the approved safety architecture.

Verify specific lot certifications with OEM.

6. ? Long-Term Storage & Asset Preservation Guide

Keep the Emerson A6370D inside its original anti-static shielding bag during storage. The rear connector pins, display electronics, and internal processor assemblies require protection from static discharge and airborne contamination.

Maintain warehouse humidity below 60% RH and avoid locations with chemical vapors or corrosive atmospheres. Connector oxidation can create intermittent communication or sensor faults after installation.

Inspect stored modules every 12-24 months. Check the connector condition, front display, housing surface, and identification label. Before installation, compare the module firmware revision, safety configuration, and hardware revision against the installed AMS 6300 SIS system records.

7. Physical Installation Prerequisites

• Install the A6370D only in the approved AMS 6300 SIS rack assembly.
• Mount the module with the correct A6371 backplane arrangement.
• Maintain approximately 50 mm clearance around cabinet airflow paths where enclosure design permits.
• Confirm protective earth grounding before inserting the module.
• Inspect rack connectors for contamination, bent pins, or oxidation.
• Verify sensor wiring polarity and shielding requirements.
• Confirm redundant power supply arrangements where required by the safety design.
• Use approved rack extraction handles for insertion and removal.

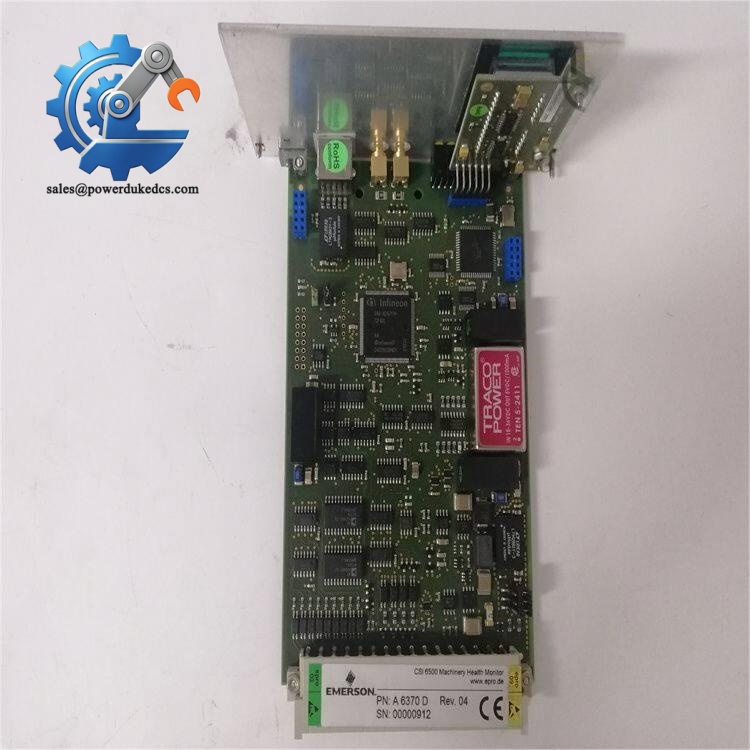

  Emerson A6370D

8. Buyer’s FAQ (Logistics & Compliance Focus)

Q: What HS Tariff Code is commonly used for an Emerson A6370D shipment?

A: Safety monitoring modules are typically evaluated under HS classifications related to electronic control, measuring, or protection equipment, depending on customs interpretation. The final Harmonized System code should be confirmed with the importing country’s customs broker.

Q: Does Country of Origin affect acceptance of this safety module?

A: Yes. COO documentation supports customs clearance, traceability records, and safety system audit documentation. Verify the product label and supplier records before receiving inspection.

Q: Should this module ship with insurance coverage?

A: Recommended. The A6370D contains specialized safety electronics and is used in critical machinery shutdown systems. Protect shipments against impact damage, moisture exposure, and loss.

Q: Does the Emerson A6370D include the latest firmware pre-loaded?

A: Firmware status depends on the module revision and supplier inventory condition. Confirm firmware version, safety configuration, and compatibility with the existing AMS 6300 SIS platform before commissioning.
