GE 369-HI-R-M-F-E-H-E | 110-250V Control Asset

Description

1. GE 369-HI-R-M-F-E-H-E | 110-250V Control Asset

Unboxing & Physical Snapshot

• Brand & Model: GE Multilin 369-HI-R-M-F-E-H-E Motor Management Relay
• Product Family: GE Multilin 369 Motor Management Relay platform designed for motor protection, monitoring, and control applications.
• Approximate Physical Dimensions: 6.8 × 6.5 × 8.5 in (173 × 165 × 216 mm)
• Estimated Shipping Weight: Approximately 8–10 lb (3.6–4.5 kg) including protective packaging
• Mounting Style: Panel-mounted non-drawout relay enclosure

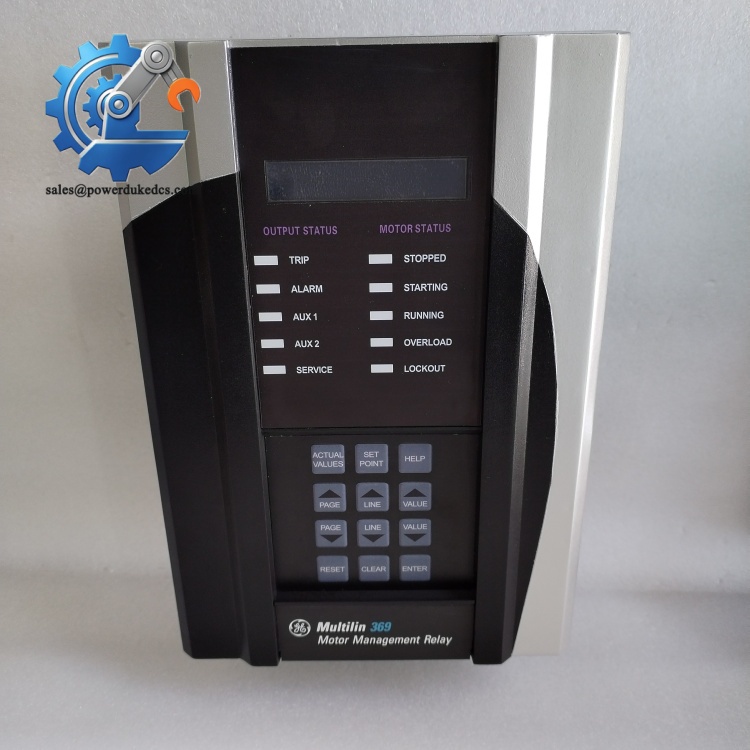

• Front Panel Features: LCD display, keypad interface, status indicators, communication access

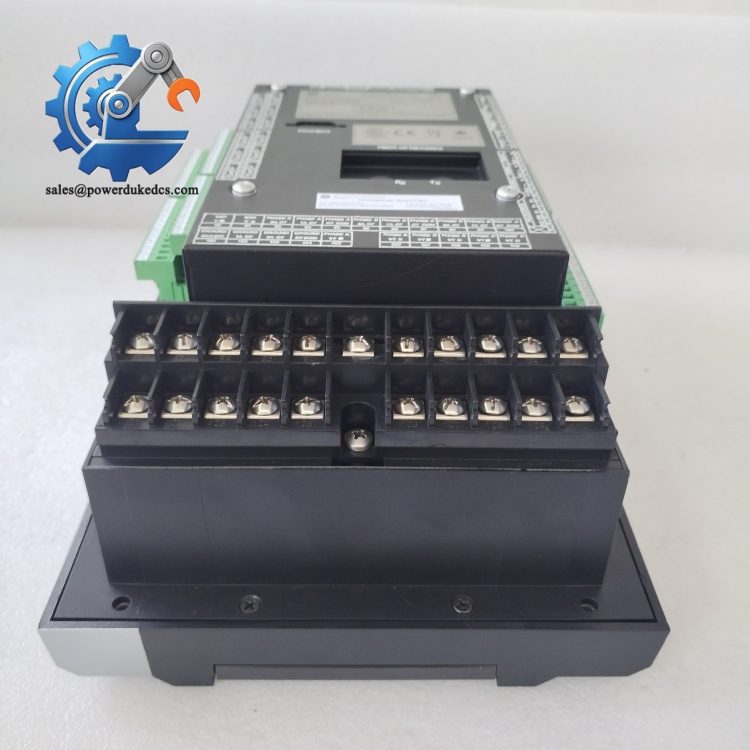

• Housing Construction: Metal protective chassis with rear terminal connections
• Model Configuration Highlights:
  • HI control power option
  • Rear terminal configuration
  • Metering option
  • Fiber optic communications
  • Ethernet communications
  • Enhanced diagnostics
  • Harsh environment conformal coating option
• What’s in the Box:
  • GE Multilin 369-HI-R-M-F-E-H-E relay assembly
  • Rear terminal blocks (configuration dependent)
  • Mounting hardware
  • Product documentation when supplied
  • ESD protective packaging

Product Introduction

The GE Multilin 369-HI-R-M-F-E-H-E is built for environments where motor protection equipment must remain stable under electrical noise, vibration, and industrial temperature variations. The harsh-environment option adds additional protection measures for demanding installations (which is important in processing plants, power stations, and outdoor electrical rooms).

This relay mounts into a motor control or protection panel with rear wiring access for CT inputs, RTD connections, trip circuits, and communication interfaces. The ordering code is significant. Verify every option letter before replacement because installed communications, terminal arrangements, and protection features may differ between similar-looking units. The 369 series supports factory-installed options selected through its ordering structure.

Core Technical Specifications

GE 369-HI-R-M-F-E-H-E

Global Compliance & Industry Certifications

Expected regulatory approvals for this GE Multilin 369 configuration may include:

• CE Mark — confirms conformity with applicable European safety and EMC requirements when installed according to approved conditions.
• UL/cUL Listed — commonly associated with industrial protection equipment approval requirements.
• IEC 60255 Series Compliance — relevant for protection relay performance and environmental testing.
• IEC 61000 EMC Testing — important because motor control panels experience switching noise and electrical disturbances.
• ATEX/IECEx — not typically a standalone relay certification; requires a complete approved hazardous-area installation.
• Marine approvals such as DNV GL — only applicable to specifically certified applications.

The harsh environment option is significant because conformal coating helps protect electronic assemblies against contamination, moisture, and corrosive industrial atmospheres. It does not replace proper enclosure selection.

Verify specific lot certifications with OEM.

Long-Term Storage & Asset Preservation Guide

• Keep the relay inside its original ESD shielding bag and sealed packaging until installation. The terminal assemblies, display electronics, and internal boards should not be exposed unnecessarily during warehouse storage.
• Maintain storage humidity below 60% RH. Moisture exposure can accelerate oxidation on terminal screws, connector surfaces, and internal electronic contacts.
• Inspect stored relays annually. Record serial number, firmware revision, calibration information, and packaging condition (this information supports future reliability audits).
• Avoid prolonged storage in direct sunlight or near chemical process areas. The front display materials and enclosure finishes can degrade under harsh environmental exposure.
• Before commissioning after extended storage, verify the control power range and compare firmware settings against the approved motor protection documentation.

GE 369-HI-R-M-F-E-H-E

Physical Installation Prerequisites

• Install the GE 369 relay inside a properly ventilated motor control center or protection cabinet.
• Maintain at least 50 mm (2 in.) clearance above and below the relay when cabinet airflow depends on convection cooling.
• Ensure the mounting panel provides a low-impedance protective earth connection.
• Verify CT polarity, CT shorting provisions, RTD wiring, and trip circuit connections before energization.
• Confirm communication cable routing. Fiber optic connections require correct bend radius control to prevent signal degradation.
• Tighten rear terminal connections according to OEM torque requirements.

Buyer’s FAQ (Logistics & Compliance Focus)

Q: What HS Tariff Code is normally considered for a GE 369 motor relay?

A: Industrial protection relays are commonly evaluated under HS classifications such as 8536.49 for electrical relays, depending on the declared function and importing country’s tariff interpretation. Confirm the final classification with a customs professional before shipment.

Q: Does the Country of Origin affect this relay’s documentation package?

A: Yes. COO affects customs records, warranty traceability, and procurement documentation. Retain the GE nameplate information, serial number, and supplier records with the asset file.

Q: Should shipping insurance be purchased for this relay?

A: Recommended. Motor protection relays contain precision measurement circuits, communication hardware, and display assemblies that may suffer hidden impact damage during transport. Insure according to replacement value.

Q: Does the 369-HI-R-M-F-E-H-E ship with the newest firmware installed?

A: Not automatically. Firmware depends on the manufacturing date and service history. The relay stores firmware information that should be checked before integration into an operating protection system. Verify compatibility with the approved motor protection settings database before installation.
