GE 469-P1-HI-A20 | Multilin Motor Protection Management Relay

Description

• Brand: GE Multilin
• Full Model Number: 469-P1-HI-A20
• Lifecycle Status: Obsolete / Legacy
• Core Function: Medium- and large-motor protection, management, monitoring, and control
• Top 3 Technical Specs: 1 A phase CT secondaries; 90–300 VDC / 70–265 VAC control power; 4–20 mA analog outputs
• Stock & Condition: Physical stock verification required; New Surplus / Tested Refurbished; Emergency dispatch subject to QA release

Module 3: Obsolescence & Supply Chain Deep Dive

When a GE Multilin 469 fails in an operating motor protection circuit, the outage exposure can extend well beyond the relay itself. The 469-P1-HI-A20 is a legacy configuration of the Multilin 469 Motor Protection System, and the 469 platform is no longer in current production. The P1 configuration is associated with 1 A phase CT secondaries, while HI identifies the high-range control supply of 90–300 VDC or 70–265 VAC at 48–62 Hz. The A20 configuration provides 4–20 mA analog outputs. Exact ordering-code matching therefore matters when sourcing a replacement.

For a plant still standardized on the 469 platform, sourcing the exact configuration can be substantially cheaper than forcing a complete protection-system migration. The TCO difference comes from avoiding new panel engineering, CT/VT rewiring, control logic changes, relay coordination studies, commissioning, outage labor, and revised spare-parts holdings. The 469 combines motor protection, metering, event recording, RTD monitoring, communications, and control functions in one relay. A verified legacy replacement can preserve that installed architecture while giving the site time to plan a controlled migration—though CT input, control-power range, firmware, communications, and the existing configuration file should all be confirmed before the PO is released.

Module 4: Compatibility & Replacement Matrix

Estimated switch cost/time: An exact replacement already staged at the facility can typically be planned as a 3–8 hour maintenance and commissioning activity, subject to site isolation, wiring verification, relay configuration, and functional testing. A newly sourced unit may require 1–5 business days for inspection and expedited transportation, depending on destination and carrier cutoff. These figures are planning estimates.

Field Traps — Watch Out

• P1 vs. P5 CT input: P1 specifies 1 A phase CT secondaries, while P5 specifies 5 A phase CT secondaries. These versions should not be treated as interchangeable.
• HI vs. LO control power: HI corresponds to 90–300 VDC / 70–265 VAC, while the low-voltage configuration has a different supply range. Confirm the existing panel supply before substitution.
• A20 output configuration: A20 is associated with 4–20 mA analog outputs. A relay with a different A-code may not reproduce the installed instrumentation interface.
• Firmware/configuration: Record the firmware version and save the existing settings before replacement. A physically compatible relay still requires configuration verification.

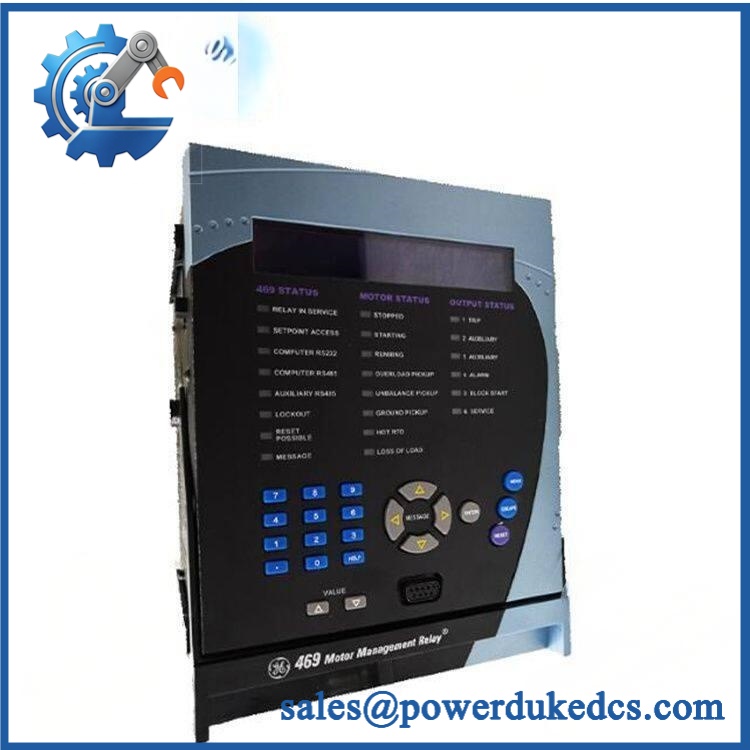

GE 469-P1-HI-A20

Module 5: Quality Assurance & Testing SOP

A legacy protection relay should be released only after documented inspection and functional verification. Age alone is not an acceptable condition grade.

• Part-number verification: Confirm 469-P1-HI-A20, full nameplate data, serial number, revision, and option codes.
• OEM anti-counterfeit visual inspection: Examine GE Multilin markings, front-panel labeling, enclosure geometry, connectors, PCB assemblies, terminal identification, and evidence of unauthorized rework.
• CT configuration verification: Confirm the relay is the P1 1 A phase-CT version.
• Control-power verification: Test the HI configuration using a controlled AC/DC source within the specified operating range.
• Power-on self-test (POST): Verify display initialization, keypad response, status indications, alarm/self-test behavior, and absence of unexpected fault conditions.
• Protection-function testing: Simulate applicable overcurrent, current-unbalance, undervoltage/overvoltage, thermal, ground-fault, and other configured protection elements.
• RTD input testing: Simulate representative RTD resistance values where the test fixture supports the installed channels.
• Analog-output testing: Verify the configured 4–20 mA analog outputs across representative operating values.
• Digital I/O testing: Exercise programmable inputs and relay outputs using controlled test signals.
• Communication testing: Verify the applicable communications interface and confirm successful data exchange with the associated configuration environment.
• Event/data-recording check: Confirm event recording and monitoring functions respond correctly during simulated conditions.
• I/O load testing: Apply representative simulated loads and monitor relay behavior, indications, and thermal condition.
• Extended observation: Maintain the relay under controlled energized conditions to identify intermittent display, input, output, communication, or thermal issues.
• Final QC release: Record serial number, firmware version, option configuration, measured results, photographs, condition grade, test date, and QC authorization.

The test record should accompany the procurement file. For an obsolete protection relay, traceability is part of qualification.

Module 6: Procurement & Lifecycle FAQ

Q1. Is the GE 469-P1-HI-A20 genuinely in stock, and what is the cutoff for emergency shipping?
Physical inventory should be verified against the exact nameplate configuration before the PO is accepted. Emergency dispatch depends on QA completion, warehouse location, carrier collection time, and destination. Same-day shipment should be confirmed only after the specific unit has been physically identified and cleared.

Q2. How do you guarantee the condition and authenticity of an obsolete 469-P1-HI-A20?
Require exact part-number and option-code verification, OEM visual inspection, controlled power-up, functional protection testing, I/O checks, communication verification, and a documented QC record. Serial-number photographs and firmware records also provide useful traceability.

Q3. Are firmware compatibility issues something engineers should check before issuing the PO?
Yes. Record the firmware revision of the existing relay before removal and preserve the current settings file. The replacement should then be checked for firmware and configuration compatibility before commissioning.

Q4. Can any GE Multilin 469 replace the 469-P1-HI-A20?
No. The complete ordering code matters. P1 identifies the 1 A phase-CT configuration, HI identifies the high-range control supply, and A20 identifies the analog-output configuration. A relay with different option codes should not be approved solely because it belongs to the same 469 family.

Q5. What warranty and return terms should be written into the PO?
Specify the warranty duration, DOA coverage, functional-failure coverage, return authorization procedure, inspection window, and serial-number traceability requirements. For refurbished stock, require the applicable test report and define whether commissioning-stage failures are covered.
