GE 469-P5-HI-A20-E | 5A 120VAC Motor Protection Relay

Description

• Brand: GE Multilin
• Full Model Number: 469-P5-HI-A20-E
• Product Type: Motor Management / Protection Relay
• System/Series Family: GE Multilin 469 Motor Management Relay
• Core Function: Protection, monitoring, metering, and control of medium-voltage and large industrial motors
• Top 3 Hardcore Specs: 5 A CT input class | 120 VAC control power class | 469 motor management platform
• Current Input: 5 A CT secondary class
• Application: Medium-voltage and large industrial motor protection
• Communications: Serial communications available on applicable 469 configurations
• Stock Status: New surplus / condition to be confirmed per available unit

Module 3: Technical Product Introduction

A motor protection relay has to distinguish a genuine electrical fault from a normal high-current starting condition.  It sits between the motor’s instrumentation and the plant protection/control architecture, using measured electrical conditions to supervise motor operation and initiate configured protective actions.

The P5 designation identifies the 5 A CT-input class, while the HI configuration is associated with the relay’s control-power and hardware configuration; the complete suffix must be matched against the installed unit. The 469 platform supports extensive motor protection and monitoring functions rather than functioning as a simple overload relay. —CT ratio, motor full-load current, starting characteristics, and protection coordination must all be verified before commissioning a replacement.

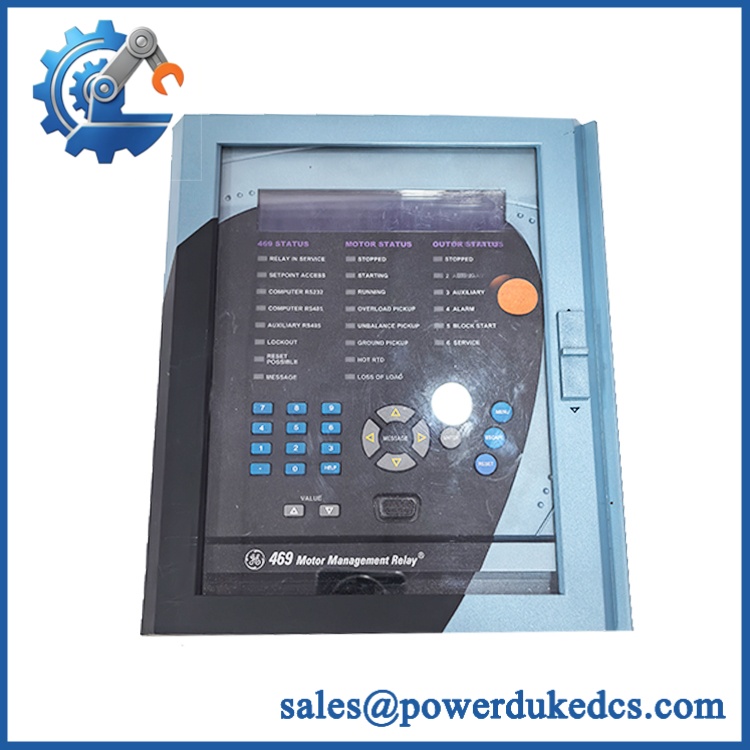

GE 469-P5-HI-A20-E

Module 4: Application Scenarios & Field Realities

• For medium-voltage pump, compressor, and fan motors, the 469 can monitor current and other motor operating conditions while coordinating protective actions with the upstream switchgear. CT ratio and motor data should be entered from the actual motor documentation.
• On high-inertia machinery, starting current and acceleration time deserve particular attention. A replacement relay configured with generic overload values may trip during a normal start even though the original installation operated correctly.
• In critical process plants, protection settings should be coordinated with the motor breaker, contactor, upstream protection, and process requirements. The relay should not be commissioned as an isolated device.
• Where plant SCADA collects relay data, verify the communication configuration after replacement. A locally functioning relay can still report no useful data to the control room if the address, serial parameters, network wiring, or register mapping is incorrect.

Module 5: Migration, Compatibility & Installation Traps

Replacement Matrix

Field Traps — Watch Out

1. Verify the CT secondary rating.
The P5 configuration is associated with a 5 A CT input. Do not connect a relay configured for a different CT secondary directly to the existing transformer circuit.

2. Preserve the motor protection settings.
Record motor full-load current, CT ratio, overload characteristics, acceleration time, thermal model parameters, ground-fault settings, and other site-approved values before removing the existing relay.

3. CT circuits require special care.
Never casually open an energized CT secondary circuit. Follow the site’s approved CT shorting and isolation procedure before disconnecting relay wiring.

4. Verify control power and I/O wiring.
The complete 469-P5-HI-A20-E suffix matters. Confirm control voltage, trip contacts, auxiliary inputs, RTD connections, and communication interfaces against the installed relay documentation.

Module 6: Quality Assurance SOP

Before shipment, each available GE 469-P5-HI-A20-E should pass a documented inspection sequence:

1. OEM identification inspection — Verify GE Multilin markings, complete 469-P5-HI- ordering code, serial information, hardware revision, and nameplate data.
2. OEM anti-counterfeit visual inspection — Examine the enclosure, front display/keypad, terminal blocks, PCB workmanship, labels, connectors, and fasteners for unauthorized modification.
3. Physical inspection — Check the housing, display, keypad, mounting points, terminals, communication ports, and board surfaces for corrosion, cracking, contamination, or impact damage.
4. Part-number verification — Confirm the physical relay against the exact 469-P5-HI- requirement before electrical testing.
5. Controlled power-on test — Apply the specified control supply under protected laboratory conditions and verify normal initialization and diagnostic status.
6. Display/keypad verification — Test representative menu functions, display segments, navigation keys, and operator inputs.
7. Metering verification — Apply controlled simulated electrical inputs within the applicable test limits and verify current and other supported measurements.
8. Protection-function simulation — Using an appropriate relay test set, simulate representative overload, phase imbalance, undercurrent, ground-fault, and other applicable protection conditions.
9. Trip-output verification — Confirm the appropriate output contacts operate when configured protection elements reach their test thresholds.
10. Communication handshake verification — Connect the relay to a compatible communications test environment and verify addressing, data exchange, and applicable monitoring values.
11. Diagnostic/event verification — Check self-diagnostics and event records for unexpected hardware faults or abnormal status.
12. Extended stability test — Operate the relay under controlled conditions and monitor for resets, display faults, abnormal temperature, or communication interruptions.
13. Final visual inspection — Recheck terminals, connectors, labels, housing, and mounting hardware after testing.
14. Test record and packaging — Record model number, revision, test results, inspection date, and packaging condition before dispatch.

QA note: A GE Multilin 469 should not be accepted solely because its display powers on. For this protection relay, simulated current inputs, protection-element testing, trip-contact verification, metering checks, and communication testing provide substantially stronger evidence of operational condition.
