Description
- Brand: GE General Electric
- Full Model Number: 531X309SPCAJG1
- System/Series Family: GE 531X Series / DC2000 Digital Adjustable Speed Drive
- One-Sentence Core Function: Signal processing interface for drive I/O, encoder/tachometer feedback, current-reference conversion, and RS-422 signal processing
- Top 3 Hardcore Specs: SDCC Drive Control Card compatibility; RS-422 serial signal processing; configurable switches, jumpers, and potentiometers
- Stock Status: New Surplus / Stock Confirmation Required

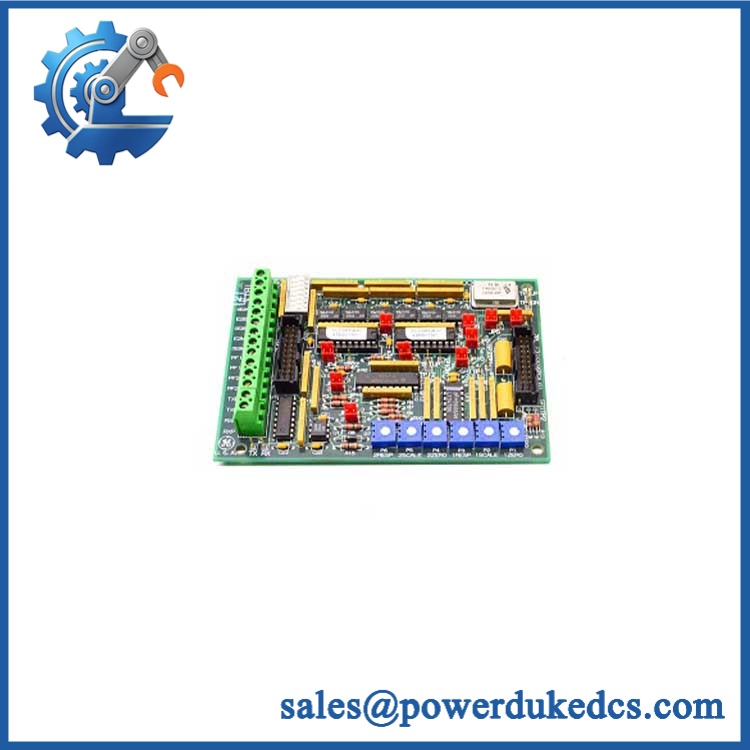

The 531X309SPCAJG1 is identified as a signal processor board used with the SDCC Drive Control Card in GE DC2000 drive systems. Its documented functions include LAN and drive I/O processing, encoder/tachometer interfacing, current-reference conversion, and RS-422 signal processing.
Module 3: Commercial-Technical Deep Dive
A failed signal-processing card can stop an otherwise serviceable GE drive from accepting correct feedback or processing the control signals required by the motor-control section. The 531X309SPCAJG1 sits in that signal path rather than functioning as a standalone PLC I/O module. In the documented DC2000 architecture, it works with the SDCC Drive Control Card, handling LAN-board and drive-board I/O while providing the interface for external encoders and tachometers. RS-422 signals are also processed before reaching the motor-control processor.
The practical value is architecture-specific: replacing the correct board preserves the existing drive-control hardware instead of forcing a complete drive migration. Hardware configuration matters here. The board incorporates switches, jumpers, and potentiometers used for functions such as signal filtering and gain adjustment; one published hardware record identifies ten jumpers on a revision-J board, so the replacement should be matched by exact part number and board configuration rather than physical appearance alone. Technically, this is a configurable signal-processing assembly, not a generic analog input card.
GE 531X309SPCAJG1
Module 4: Compatibility & Installation Traps
Migration/Compatibility
The 531X309SPCAJG1 is documented for GE 531X drive architectures and is used with the SDCC Drive Control Card, particularly within the DC2000 Digital Adjustable Speed Drive family. It should be treated as an exact-part-number replacement, not a universal 531X substitute. Available documentation identifies the related manual family as GEH-6005, while another hardware record lists GEI-100024A for the board.
A firmware flash should not be assumed from the part number alone. Before installation, compare the existing board identification, revision, jumper positions, switch settings, and potentiometer configuration against the replacement and the applicable drive documentation. No verified source establishes that a routine logic rewrite is required for a like-for-like board replacement.
⚠️ Field Traps (Watch Out)
- Configuration mismatch: Switches, jumpers, and potentiometers are functional configuration elements. Photograph the failed board before removal and reproduce verified settings on the replacement; changing filtering or gain settings can alter the drive’s signal response.
- Feedback wiring error: The board interfaces with encoder and tachometer feedback and processes RS-422 signals. Do not assume that a visually identical connector position proves correct wiring; verify conductor placement and signal polarity against the drive documentation before energization.
Module 5: Quality Assurance SOP
Before shipment, each available 531X309SPCAJG1 unit should pass a documented inspection sequence rather than a cosmetic check alone.
- OEM anti-counterfeit visual inspection — Compare GE markings, board identifiers, part-number labels, PCB construction, connector condition, component placement, and revision markings against known board references.
- Physical inspection — Check the PCB for cracked substrates, corrosion, contamination, lifted components, damaged connectors, bent pins, and evidence of unauthorized rework.
- Configuration capture — Record the positions of applicable switches, jumpers, and potentiometers before functional handling.
- Power-on self-test (POST) — Where the available test setup supports the assembly, perform controlled power-up and record expected ERR/RUN LED behavior or other applicable status indications. No unexplained fault indication is accepted.
- Communication handshake verification — Verify the applicable RS-422 signal path and drive-side communication behavior using a compatible test arrangement rather than relying only on continuity measurements.
- I/O and feedback verification — Exercise supported signal paths, including applicable encoder/tachometer feedback and signal-processing functions, within the limits of the test fixture.
- Final QC record — Record part number, revision, serial/traceability data where present, test results, photographs, inspector approval, and packaging condition before release.
Because this is a board-level drive component, test scope depends on the available GE-compatible test fixture. A visual pass alone is not treated as proof of operational condition.
Module 6: CRO-Driven Buyer FAQ
Is the GE 531X309SPCAJG1 obsolete, and how do I verify authenticity?
Some current industrial spare-part references identify the part as discontinued, which makes exact-number sourcing and traceability important. The board is consistently identified as a GE 531X-series signal processor card for GE drive systems. Verify the full 531X309SPCAJG1 marking and the corresponding board identifier before purchase.
Can I hot-swap the 531X309SPCAJG1?
Do not treat this board as a hot-swap module. It is a board-level component associated with a drive control assembly, and the cited technical material does not establish a hot-swap procedure. Use the equipment manufacturer’s power-down, isolation, and discharge procedure before board removal. Apply ESD controls during handling.
Does replacing this board require a program or logic rewrite?
A like-for-like replacement should not automatically imply a control-logic rewrite. The critical checks are exact part number, board revision, hardware configuration, wiring, and compatibility with the installed SDCC/DC2000 architecture. Firmware requirements should be verified against the specific drive documentation rather than assumed.
What warranty is available?
Warranty duration depends on the actual inventory condition and sales terms for the unit supplied. For a production spare, request the warranty period in writing on the quotation or order confirmation rather than relying on a generic warranty statement.
What technical support is included?
Technical support should cover part identification, configuration cross-checks, installation documentation, and test-result review within the limits of the supplied unit. It does not replace GE drive engineering or site-specific commissioning responsibility. For a critical shutdown replacement, provide the existing board revision and drive model so compatibility can be checked before shipment.
