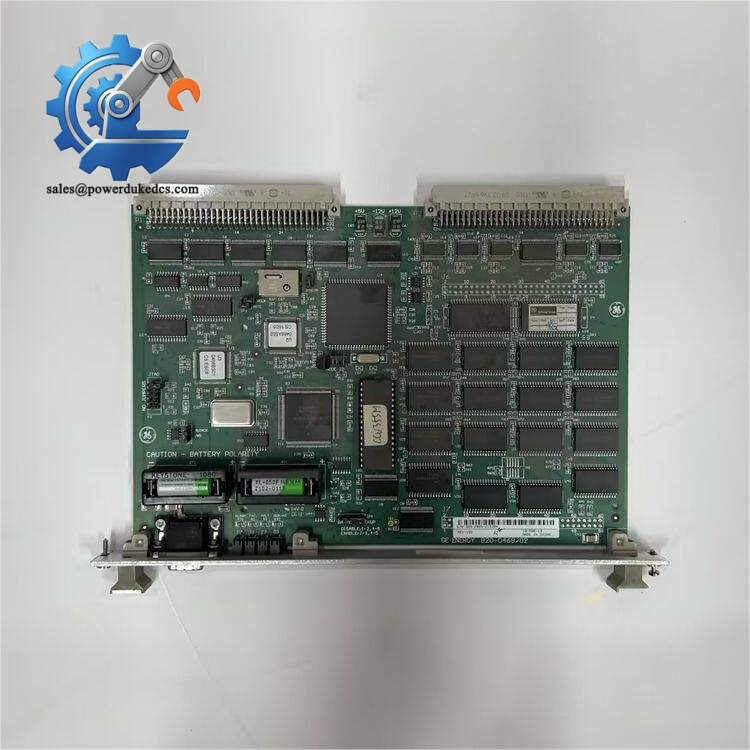

GE D20ME-VME | Traceable VME Main Processor Card

2. Unboxing & Physical Snapshot

Model & Brand: GE D20ME-VME (GE Energy / GE Digital Energy)
Product Type: VME-compatible D20/D200 substation controller main processor module used in utility RTU and SCADA applications. The D20ME-VME is designed for standard D20 or D200 VME chassis installations requiring multiple processors and/or VME peripheral expansion.
Approximate Physical Dimensions (W × H × D): Approximately 160 × 233 × 20 mm (6U VME Eurocard format; exact depth depends on front/rear I/O configuration)
Estimated Shipping Weight: Approximately 1.0-1.5 kg (2.2-3.3 lb) with ESD packaging and protective inserts
What’s in the Box:
- GE D20ME-VME processor module
- Front panel assembly with extraction handles
- VME edge connector protection cover or conductive foam
- Original anti-static ESD shielding bag (when factory packaged)
- Product identification label and serial tracking information
- Documentation package when available

3. Product Introduction

The D20ME-VME sits at the center of the D20/D200 VME chassis architecture. It occupies a VME card slot and operates as the main processor responsible for collecting field data, coordinating peripheral modules, and managing communication functions inside the RTU platform. (Backplane condition is critical because aging VME contacts can create intermittent field communication faults that appear as processor failures.)

Built for utility automation environments, this module serves as a data concentrator and central controller for substation applications. The VME version provides access to external global memory and VME-based peripherals such as Ethernet expansion cards. Maintenance teams supporting legacy grid installations typically replace this module as an exact hardware match rather than modifying validated protection and control cabinets.

4. Core Technical Specifications

Parameter	Value
Manufacturer	GE Energy / GE Digital Energy
Model	D20ME-VME
Part Number	526-2005
Product Type	VME Main Processor Module
System Platform	GE D20 / D200 RTU
Form Factor	VME-compatible Eurocard module
Chassis Compatibility	Standard D20 and D200 VME chassis
Processor Function	Central processor and data concentrator
Firmware Support	D20 Base firmware or CCU Base firmware selectable through configuration tools
Serial Interfaces	7 serial communication ports (variant dependent)
VME Expansion Support	Supports VME-based peripherals including Ethernet modules
Memory Type	SRAM / NVRAM / Flash storage configuration dependent
Real-Time Clock	High-accuracy time synchronization clock
Power Input	Supplied through D20/D200 chassis power architecture
Cooling Method	Forced cabinet airflow and chassis ventilation
Operating Temperature	Industrial temperature range; verify exact board revision
Storage Temperature	Verify specific hardware revision documentation
Heat Dissipation	Dependent on processor load and installed communication peripherals

GE D20ME-VME

5. ? Global Compliance & Industry Certifications

Expected regulatory considerations for the GE D20ME-VME include:

CE Mark: Applicable for supported system configurations meeting electromagnetic compatibility requirements.
UL/cUL Listed or Recognized: May apply to the complete RTU assembly rather than the individual processor card.
RoHS Compliance: Depends on manufacturing date and revision level.
IEC 61000 EMC Considerations: Relevant for substation environments where electromagnetic interference resistance is required.
ATEX/IECEx: Not normally a standalone approval for this processor module; applicability depends on installation inside certified hazardous-area equipment.
Marine Approvals (DNV GL): Only applicable if supplied as part of a certified marine control package.

For electrical substations, EMC compliance is especially important. A processor module operating inside a high-voltage environment must tolerate electrical noise, switching transients, and communication disturbances without creating unsafe control behavior.

Verify specific lot certifications with OEM.

6. ? Long-Term Storage & Asset Preservation Guide

Keep the GE D20ME-VME sealed inside its original anti-static shielding bag during warehouse storage. The VME edge connector fingers, memory devices, and exposed PCB surfaces are vulnerable to electrostatic discharge and contamination.

Maintain controlled storage conditions with humidity below 60% relative humidity. Avoid locations near battery rooms, chemical storage, or areas with sulfur contamination because corrosive gases can attack connector plating over extended periods.

Inspect spare modules every 12-24 months. Check the lithium backup battery condition if installed, inspect capacitor surfaces for leakage or swelling, and verify that the front-panel hardware and retaining clips remain mechanically secure (a small inspection prevents a difficult field replacement later).

7. Physical Installation Prerequisites

Install only in a compatible GE D20/D200 VME chassis with the correct backplane configuration.
Confirm the chassis grounding system before inserting the module.
Leave at least 50 mm above and below airflow paths where cabinet design permits.
Verify forced-air cooling fans are operational before startup.
Inspect the VME backplane connector for contamination, bent contacts, or oxidation.
Use the front-panel ejector handles to seat the board evenly into the backplane.
Confirm communication wiring and serial interface assignments match the existing RTU configuration.

8. Buyer’s FAQ (Logistics & Compliance Focus)

Q: What HS Tariff Code is normally used for a GE D20ME-VME shipment?

A: The classification depends on the declared function and customs interpretation. Industrial processor modules may be reviewed under HS categories such as 8471 or related electronic control equipment classifications. Confirm the final Harmonized System code with your customs broker before export documentation is completed.

Q: Why should the Country of Origin be verified before purchase?

A: COO affects import records, customer compliance documentation, and traceability requirements. Legacy GE Energy hardware may have different manufacturing origins depending on production period and supply chain history.

Q: Is shipping insurance necessary for this VME processor board?

A: Recommended. The D20ME-VME is a legacy control asset with specialized hardware, memory components, and VME connectors. Damage during transport may not be repairable through standard component replacement channels.

Q: Does the D20ME-VME ship with the newest firmware installed?

A: Not automatically. Firmware depends on the board revision, previous service history, and supplier condition. Confirm the installed firmware version against the existing D20/D200 configuration
