GE DS200SHVMG1AFE | Replacement for DS200SHVMG1A Board

Description

• Brand: GE General Electric
• Full Model Number: DS200SHVMG1AFE
• System/Series Family: Speedtronic Mark V / EX2000
• One-Sentence Core Function: SCR high-voltage M-frame interface between the drive SCR bridge and DCFB/SDCI and PCCA circuitry
• Top 3 Hardcore Specs: 24 VDC supply; ±500 mV input signal range; 0–500 kHz differential-frequency output
• Stock Status: New Surplus — physical condition and exact revision confirmed before shipment

Module 3: Commercial-Technical Deep Dive

A failed DS200SHVMG1AFE can stop troubleshooting at the wrong point: the drive may still have a healthy controller while the SCR feedback path has lost its interface to the power-supply and power-connect circuitry. Built for GE Mark V and EX2000 M-frame applications, this SHVM board provides the signal interface between the SCR bridge, DCFB or SDCI power-supply circuitry, and PCCA power-connect circuitry. Its design also handles current and voltage feedback conditioning, making the exact jumper configuration part of the commissioning equation. GE documentation identifies the SHVM function under manual GEI-100174, while available technical references identify this specific part as a revised DS200SHVMG1-family board.

The electrical details matter more than the catalog description. Published specifications identify a 24 VDC input, an input signal range of approximately -500 mV to +500 mV, and a differential-frequency output extending from 0 to 500 kHz; configurable 10:1 current-transformer attenuation is also used for higher-current feedback applications. That frequency-based signal conversion gives the downstream control circuitry a defined feedback format rather than passing the raw low-level measurement directly through the cabinet. Before replacement, record every jumper position and compare the board revision against the removed unit — a technically compatible board can still behave incorrectly when its attenuation or feedback configuration does not match the drive.

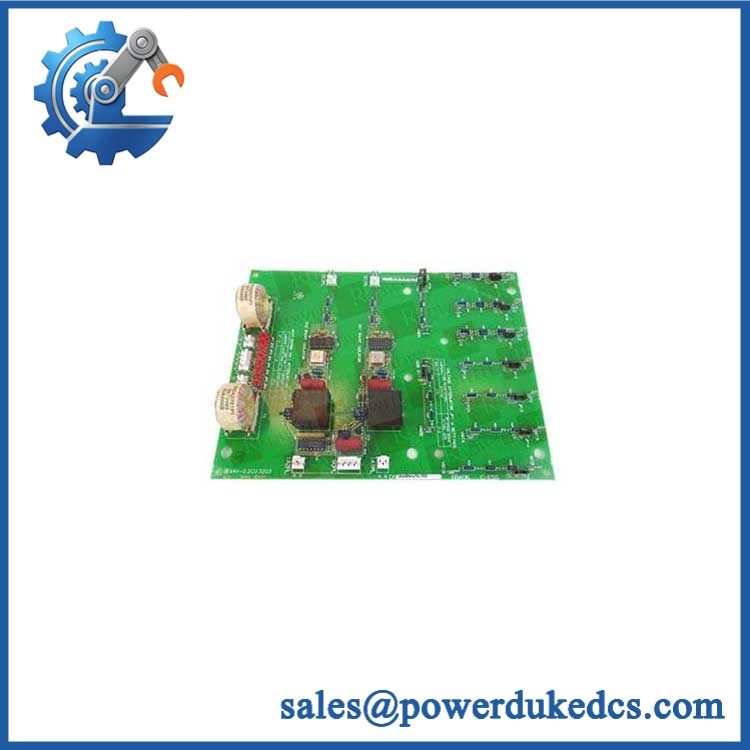

GE DS200SHVMG1AFE

Module 4: Compatibility & Installation Traps

Migration/Compatibility

• Replacement status: Intended as a revised replacement within the DS200SHVMG1 family; available technical references identify the first two revisions as backward-compatible. Do not treat suffix revisions as interchangeable without checking the existing drive configuration.
• Firmware requirement: No separate controller firmware flash is normally the defining replacement step for this passive/interface board. The critical work is hardware revision verification, wiring validation, and jumper/configuration matching.
• Logic rewrite: Normally not required when replacing the same board function in the same Mark V or EX2000 M-frame architecture.
• Shutdown requirement: Treat the installation as a power-down maintenance task. Isolate the associated drive/excitation equipment, verify zero hazardous voltage, and follow the plant’s approved LOTO procedure before touching the board.

⚠️ Field Traps (Watch Out)

• Jumper configuration: The board uses configurable signal-conditioning circuitry, including selectable current-transformer attenuation. Copy the removed board’s jumper positions before extraction and verify them against the applicable GE wiring documentation. A visually identical replacement with different settings is not a valid commissioning shortcut.
• Feedback wiring: Confirm the SCR bridge feedback wiring, DCFB/SDCI connections, and PCCA interface before energization. Never rely on connector position alone — cabinet-specific revisions and field modifications can invalidate a simple visual comparison.
• ESD control: Use an ESD-safe workstation and grounded handling procedure. Keep the board in its antistatic packaging until installation.

Module 5: Quality Assurance SOP

Every DS200SHVMG1AFE supplied from our inventory should pass a documented pre-shipment inspection appropriate to a Mark V interface board:

1. OEM anti-counterfeit visual inspection — GE identification, board markings, part number, revision code, PCB condition, connector condition, component population, and manufacturing labels checked against available reference material.
2. Revision verification — DS200SHVMG1AFE part number and revision suffix recorded; supplied unit compared with the customer’s removed board where photographs or serial data are available.
3. PCB and connector inspection — no cracked solder joints, lifted terminals, damaged headers, corrosion, contamination, or bent connector pins.
4. Jumper/configuration record — installed jumper positions photographed and logged before packaging so the customer has a physical configuration record.
5. Power-on self-test (POST) — where the available test setup permits, power application is monitored for abnormal current draw, visible damage, and expected board status indications; any ERR/RUN LED behavior is documented rather than assumed acceptable.
6. Communication handshake verification — where an appropriate GE Mark V/EX2000 test environment is available, interface signal paths and expected control-system feedback are checked before release.
7. Final QC record — part number, revision, inspection findings, test results, photographs, and packing condition retained with the shipment record.
8. ESD packaging — antistatic protection, mechanical cushioning, and moisture protection applied before final carton sealing.

Module 6: CRO-Driven Buyer FAQ

1. Is the GE DS200SHVMG1AFE obsolete, and how do I verify authenticity?

The DS200SHVMG1AFE belongs to the legacy GE Speedtronic Mark V family, so current OEM production availability should not be assumed. Authenticity should be established from the PCB part number, revision identifiers, board construction, component population, and traceable inspection records. For a replacement order, send photographs of the existing board label and revision markings so the supplied configuration can be compared before shipment.

2. Can I replace the while the Mark V cabinet is energized?

Do not hot-swap this board as a routine maintenance procedure. The SHVM is part of the drive feedback interface, not a plug-in hot-swap I/O module. Use the site’s approved shutdown and LOTO procedure, isolate hazardous energy, verify absence of voltage, and only then remove or install the PCB.

3. Does the require a firmware update?

The main replacement concern is not a firmware flash. This is an interface board, so hardware revision, connector wiring, jumper configuration, and application-specific signal conditioning are more important. Check the existing board and GE documentation before energizing the replacement.

4. Is a direct replacement for DS200SHVMG1A?

It is part of the same DS200SHVMG1 family and is identified by technical references as a revised version, with backward compatibility reported for the first two revisions. Exact cabinet compatibility still needs to be verified against the installed revision and application configuration.

5. What warranty and technical support should I expect?

Warranty coverage should be stated on the quotation and tied to the specific unit supplied. Technical support covers identification, revision matching, installation checks, and documented pre-shipment test results; it does not replace the plant’s electrical safety procedures or guarantee compatibility when the cabinet has undocumented field modifications.
