GE DS200SIOBH1ACA | Mark V SC2000 VME I/O Control Board

• Brand: GE General Electric
• Full Model Number: DS200SIOBH1ACA
• Lifecycle Status: Legacy / Obsolete
• Core Function: SC2000 VME input/output board for GE control-system applications
• Top 3 Technical Specs: VME bus architecture; up to 16-bit data transfer; J1/J2 I/O connectors
• Hardware Configuration: 20 jumpers; 3 switch blocks × 6 switches; 18 switches total
• Interface: Standard VME connector; J1/J2 external I/O connections
• Compatible System Family: GE SC2000 / Mark V-related applications
• Stock & Condition: Physical stock confirmation required; New Surplus or Tested Refurbished subject to lot
• Emergency Shipping: Same-day dispatch subject to stock verification and carrier cutoff

The DS200SIOBH1ACA is documented as an SC2000 VME I/O board and is associated with GE’s LS2100/Mark V-era control hardware. Available technical references identify the J1/J2 I/O connectors, VME interface, and 16-bit data-transfer capability.

Obsolescence & Supply Chain Deep Dive

When an installed GE control system depends on legacy VME hardware, a failed SIOB board can turn a routine maintenance event into a sourcing problem. The DS200SIOBH1ACA is an SC2000 VME I/O board designed to work with the established VME-based control architecture and external I/O connections. Documentation identifies J1 and J2 connectors for connection to associated terminal boards, while the board uses hardware jumpers and switch blocks for configuration. For maintenance teams supporting an operating legacy installation, retaining an identified spare reduces dependence on uncertain repair turnaround or extended international sourcing.

The financial case is tied to avoided replacement-project costs. A board-level replacement can preserve the existing rack, field cabling, terminal boards, application configuration, engineering documentation, and commissioning procedures instead of forcing a wider control-system migration for one failed PCB. The saving is most significant where the installed system remains technically serviceable and only spare-part availability has become difficult. Configuration still requires engineering control: the replacement board’s jumper and switch positions should be checked against the removed unit and the applicable GE documentation before installation.

Compatibility & Replacement Matrix

The board has documented configuration hardware, including 20 jumpers and three six-position switch blocks. The correct settings are application-dependent, so a replacement should not simply be installed using assumed factory settings.

Field Traps to Watch Out For

Jumper and switch configuration mismatch: Photograph the original DS200SIOBH1ACA before removal. Record every accessible jumper and switch position, then compare the replacement against that record before energization.

Suffix substitution: DS200SIOBH1AAA, DS200SIOBH1ABA, and appear together in legacy SIOB inventories, but similar catalog numbers do not establish electrical interchangeability. Do not approve a different suffix based only on physical appearance. Cross-reference the applicable GE documentation and installed terminal-board arrangement first.

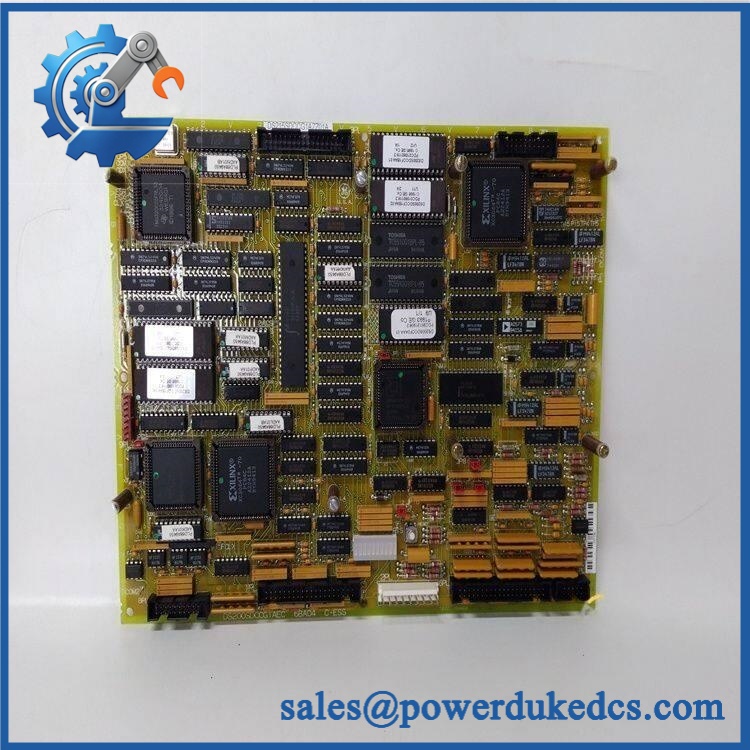

GE DS200SIOBH1ACA

Quality Assurance & Testing SOP

Part-number verification: Confirm the PCB identification reads . Record available serial, revision, and manufacturing markings. Compare the physical board against documented SIOB characteristics before functional testing.

OEM anti-counterfeit visual inspection: Inspect PCB layout, component population, connector construction, labels, board markings, solder condition, and conformal-coating condition. Any unexplained rework, substituted components, altered labels, or damaged connector hardware triggers a hold for engineering review.

Connector and PCB inspection: Examine the VME connector and J1/J2 interfaces for bent contacts, oxidation, contamination, cracked solder joints, PCB damage, and evidence of moisture or excessive heat.

Configuration capture: Photograph the hardware jumper positions and all three switch blocks before changing the board configuration. Compare the replacement configuration with the customer’s original unit or approved engineering record.

Power-on self-test (POST): Mount the board in an approved VME test environment and apply controlled power. Monitor the onboard status indication and confirm that the board powers up without abnormal behavior. The available documentation identifies an LED status indicator; an unsupported claim of separate ERR/RUN LEDs should not be made for this model.

I/O load testing: Connect the board to a compatible test setup and exercise the available I/O paths under controlled conditions. Verify signal transfer through the intended interface and check for intermittent responses, unstable readings, or communication faults.

Electrical checks: Measure applicable supply rails and perform continuity checks on relevant connector paths using calibrated test equipment. Record measured values and test conditions in the inspection report.

Final acceptance: Record part number, revision, serial number where available, configuration photographs, POST result, connector inspection, I/O load-test result, technician identification, and test date. Approved units are placed in ESD-protective packaging for shipment.

Procurement & Lifecycle FAQ

Is the genuinely in stock and what is the emergency-shipping cutoff?

Physical stock must be confirmed against the actual unit before a purchase order is released. Available supplier listings show inventory, but online listings alone should not be treated as proof of current physical availability. For an emergency order, confirm quantity, condition, destination, export documentation requirements, and carrier cutoff before payment.

How do you verify the condition and authenticity of an obsolete ?

The inspection should begin with exact part-number and revision verification, followed by PCB and connector examination, label review, jumper/switch documentation, controlled power-up, and I/O testing. The commercial description should also state whether the specific unit is New Surplus, Tested Surplus, or Tested Refurbished rather than using a generic “new” designation.

Are there firmware compatibility issues before issuing the PO?

No firmware-flash requirement was identified in the hardware references reviewed. The more important engineering concern is the board configuration and the relationship between J1/J2 connections, terminal boards, and the existing application. Exact part-number and suffix verification should be completed before purchase approval.

Is the a direct replacement?

For an existing , an exact-part replacement is treated as a board-level drop-in replacement without planned rack modification. Substituting another DS200SIOB suffix is a separate compatibility decision and should be validated against the installed configuration before shipment.

What warranty and return terms should procurement require?

The PO should specify the exact model, supplied condition, inspection status, warranty duration, DOA definition, return period, and return-freight responsibility. For obsolete inventory, these terms are particularly important because New Surplus and Tested Refurbished units can have different commercial conditions.
