Description
- GE DS3800HVDB | Legacy Control Card Replacement Unit
2. Unboxing & Physical Snapshot
- Model & Brand: GE DS3800HVDB
- Product Type: Mark IV DS3800 Video Driver Board
- Application: GE Mark IV Speedtronic turbine control system video interface board. The DS3800HVDB functions as a Video Driver Board used within GE DS3800 control hardware. It includes a modular rear connector, retention levers, a 20-pin ribbon cable connector, EPROM devices, and configuration jumpers.
- Approximate Physical Dimensions (W × H × D):
- Approximately 280 × 130 × 25 mm
- PCB-style rack card format (exact dimensions depend on installed connector hardware and revision).
- Estimated Shipping Weight: Approximately 0.5–1.0 kg including ESD packaging and protective transport materials.
- What’s in the Box:
- GE DS3800HVDB Video Driver Board
- Rear modular connector assembly
- 20-pin ribbon cable interface connector
- EPROM devices installed on PCB
- Configuration jumpers
- Anti-static ESD shielding bag
- Documentation when supplied with controlled inventory
3. Product Introduction
The DS3800HVDB installs as a plug-in board within the GE Mark IV DS3800 control rack architecture. The board interfaces with the turbine control system display hardware, providing video drive functions through its dedicated connector structure. The modular connector and retention mechanism allow controlled insertion into the rack assembly without stressing attached wiring (which is important when maintaining legacy turbine cabinets with limited spare access).
This board should be managed as a controlled electronic spare. Inspect the edge connector, retention levers, EPROM sockets, jumpers, and PCB surface before installation. Legacy Mark IV boards can remain operational for decades, but storage conditions directly affect connector plating, solder joints, and memory device reliability. Confirm board revision and functional replacement compatibility before energizing the cabinet.
4. Core Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | General Electric (GE) |
| Model Number | DS3800HVDB |
| Product Family | Mark IV DS3800 Speedtronic |
| Board Type | Video Driver Board |
| Function | Turbine control display/video interface |
| Board Format | Rack-mounted PCB assembly |
| Rear Interface | Modular rack connector |
| Front/Secondary Interface | 20-pin ribbon cable connector |
| Memory Devices | EPROM components installed |
| Configuration Hardware | Multiple jumper settings |
| Processor | No dedicated CPU |
| Firmware Storage | EPROM-based board data |
| Power Supply | Rack backplane supplied |
| Power Consumption | Dependent on rack loading and display interface |
| Heat Dissipation | Low-level PCB heat generation |
| Cooling Method | Cabinet airflow cooling |
| Mounting Method | Mark IV card rack installation |
| Operating Temperature | Industrial cabinet environment |
| Storage Requirement | Controlled dry electronic storage |

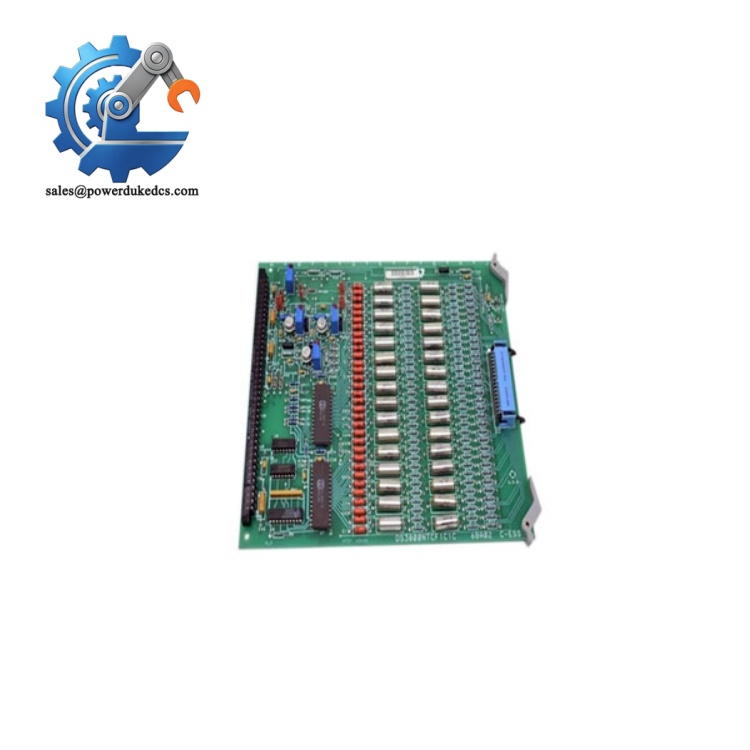

GE DS3800HVDB
5. Global Compliance & Industry Certifications
Expected compliance considerations for the GE DS3800HVDB include:
- CE Mark consideration when installed within an approved GE Mark IV turbine control cabinet.
- UL/cUL Listed or Recognized status may apply to the complete GE control system assembly rather than the individual replacement PCB.
- IEC 61508 relevance may apply when the board is installed within a turbine protection architecture, depending on the certified system design.
- ATEX/IECEx consideration for turbine packages operating in hazardous-area environments.
- Marine approvals such as DNV GL may apply where the complete turbine control system is approved for marine service.
For compliance audits, the board revision and installed EPROM identification are important because legacy control hardware often exists across multiple approved configurations.
Verify specific lot certifications with OEM.
6. Long-Term Storage & Asset Preservation Guide
- Store the DS3800HVDB inside its original anti-static (ESD) shielding bag. Keep the edge connector protected from dust and oxidation.
- Maintain warehouse humidity below 60% RH to reduce corrosion risk on connector contacts, jumper pins, and solder joints.
- Inspect stored boards every 12–24 months. Record serial numbers, board revision markings, EPROM labels, and packaging condition.
Check the EPROM labels.
Avoid exposing stored boards to UV light, chemical vapors, or rapid temperature swings. Older memory components are sensitive to long-term environmental stress.
7. Physical Installation Prerequisites
- Install only into a compatible GE Mark IV DS3800 rack assembly.
- Verify board orientation before insertion.
- Inspect the rear modular connector for contamination or bent contacts.
- Confirm jumper settings match the approved replacement configuration.
- Avoid touching gold-plated edge contacts directly.
- Connect ribbon cables after board installation when applicable to reduce cable strain.
- Maintain cabinet airflow clearance. Leave approximately 50 mm above and below rack assemblies where practical.
- Verify cabinet grounding and protective earth bonding before operation.
8. Buyer’s FAQ (Logistics & Compliance Focus)
Q: What HS Tariff Code is commonly reviewed for the GE DS3800HVDB?
A: Industrial control circuit boards are commonly evaluated under HS 8538 / HS 853890 classifications as parts of electrical control equipment. The final code depends on the importing country’s customs interpretation and declared function.
Q: Why does Country of Origin (COO) documentation matter for this board?
A: COO documentation supports customs clearance, supplier audits, and turbine maintenance traceability. Match the COO information with the invoice, packing list, board label, and receiving inspection records.
Q: Is shipping insurance recommended for the DS3800HVDB?
A: Yes. Although the board is lightweight, it contains EPROM devices, connectors, and precision PCB assemblies. Use ESD protection, anti-shock packaging, and declared-value freight coverage.
Q: Does the DS3800HVDB include the latest firmware pre-loaded?
A: The board uses EPROM-based data storage rather than modern field-loaded firmware. The installed EPROM identification should be verified against the approved Mark IV configuration before installation.
