GE HE693RTD600 | Series 90-30 RTD Input Module

Description

• Brand: GE / GE Fanuc
• Full Model Number: HE693RTD600
• Lifecycle Status: Legacy Series 90-30 RTD module; older GE Fanuc catalogs list the model as Active, while present-day manufacturing availability should be verified
• Core Function: 6-channel RTD temperature input
• Top 3 Technical Specs: 6 RTD channels; 0.5°C or 0.5°F resolution; 50 channels/second update rate
• RTD Support: 3-wire Pt-100E, Pt-100C, Pt-100Z, Pt-1000, Ni-120, Cu-10, Cu-50, Cu-53, Cu-100, TD5R and other listed resistance inputs depending on configuration/document revision
• PLC Data Interface: GE Series 90-30 %AI input table
• Conversion: 18-bit integrating A/D conversion
• Condition: Verify New Original / New Surplus / Refurbished condition at quotation
• Stock & Condition: Availability and serial-number-specific condition to be confirmed before PO

The HE693RTD600 is a six-channel RTD input module associated with the GE Fanuc Series 90-30 control platform. Its purpose is direct connection of RTD temperature sensors without requiring an external signal transmitter. GE Fanuc documentation identifies it as the low-resolution member of the HE693 RTD module family.

Obsolescence & Supply Chain Deep Dive

The main procurement risk with the GE HE693RTD600 is not simply finding an analog input module with six channels. The replacement has to preserve the existing sensor type, wiring arrangement, PLC data mapping, resolution requirements, and application scaling. The HE693RTD600 uses six RTD channels and writes temperature values to the Series 90-30 %AI input table. It supports direct RTD connection and performs the analog and digital processing on the module.

This is a legacy-platform spare, so maintenance teams should treat availability as an inventory-planning issue rather than waiting for a failed module before sourcing. Older GE Fanuc catalog material lists HE693RTD600 as an active product, but that documentation is historical; present manufacturing status and factory supply should be verified for each procurement cycle. The module family was also produced by Horner Electric APG for Series 90-30 applications, which is important when checking provenance and replacement documentation.

For a running plant, replacing one failed RTD module can be substantially less disruptive than changing the complete PLC architecture. The economic calculation should include engineering hours, panel modification, PLC software changes, loop testing, commissioning downtime, and spare-parts requalification—not just the purchase price of the module. (For critical temperature loops, retaining one tested spare can also reduce the exposure associated with emergency sourcing.)

Compatibility & Replacement Matrix

The HE693RTD601 is not an identical specification replacement: GE Fanuc documentation identifies the RTD600 as the low-resolution version at 0.5°C/0.5°F, while the RTD601 provides finer selectable resolution.

Field Traps — Watch Out

RTD sensor type matters.
Do not substitute a module solely because it has six RTD channels. The supports specific RTD and resistance types, including Pt-100 variants, Pt-1000, Ni-120 and copper RTD types. Confirm the actual field sensor before approving an alternate module.

Resolution can affect existing scaling and alarm behavior.
The RTD600 is specified at 0.5°C or 0.5°F resolution. Moving to a higher-resolution module does not automatically mean the existing PLC application has been validated for the change. Check engineering units, scaling, alarm thresholds and historical data requirements.

Do not confuse GE branding with current manufacturing origin.
Documentation identifies the within the GE Fanuc Series 90-30 ecosystem, while industry documentation states that these HE693 modules were made by Horner Electric APG for Series 90-30 applications. Procurement records should therefore preserve the complete part number and manufacturer identification found on the physical unit.

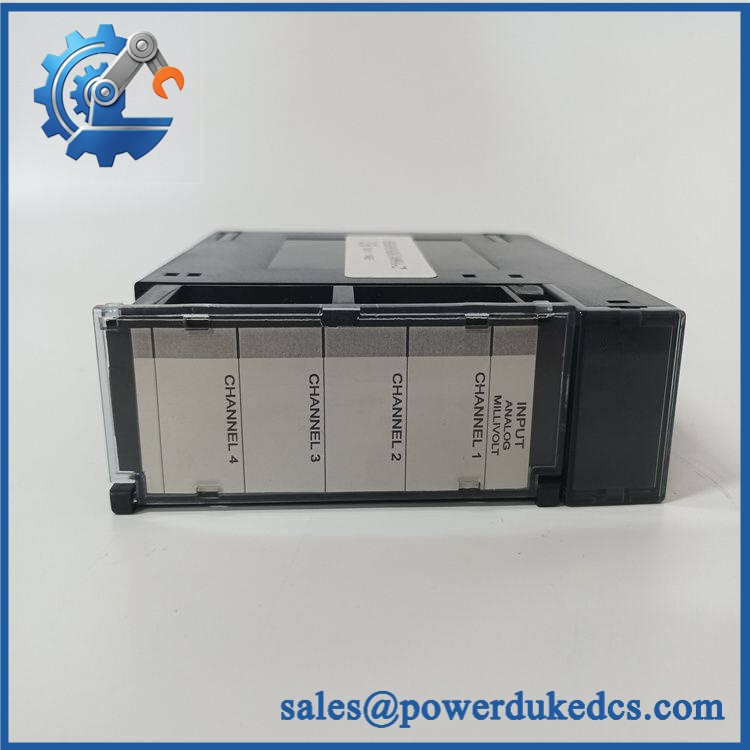

GE HE693RTD600

Quality Assurance & Testing SOP

Each supplied for critical PLC maintenance should be checked against the exact procurement part number before shipment.

Incoming identity check

• Verify model marking
• Record serial number and hardware/revision information where available
• Compare front-panel labeling with the requested part number
• Inspect terminal block and connector condition
• Check housing, terminal screws, PCB area and protective components for visible damage
• Confirm supplied accessories against the purchase requirement

Electrical inspection

• Inspect for contamination, corrosion, cracked components and damaged terminals
• Check for abnormal resistance or short conditions before energization
• Verify module power-interface condition
• Inspect the RTD input circuitry and terminal wiring points

Functional test

• Install the module in an appropriate Series 90-30 test environment
• Confirm PLC recognition and normal module operation
• Connect representative RTD inputs to multiple channels
• Verify temperature values appear in the expected %AI input locations
• Compare readings against calibrated reference resistance values
• Check all six channels individually
• Confirm expected resolution and response behavior
• Verify abnormal-input behavior where the test setup permits
• Record test results by serial number

The documented architecture uses six RTD channels, 50 channels/second update capability, 18-bit integrating A/D conversion and approximately 330 µA average RTD current for a Pt-100 input. These specifications should be used as test references rather than as substitutes for the applicable module manual.

Final release inspection

• Photograph model and serial identification
• Record test date and technician
• Attach applicable test report
• Apply ESD protection
• Protect terminal areas during export packing
• Use shock-resistant packaging appropriate for electronic control equipment

Procurement & Lifecycle FAQ

Is the GE still manufactured?

Historical GE Fanuc catalog documentation lists the as Active, but that status comes from older Series 90-30 documentation. For a current purchase, factory production status and actual supplier inventory should be verified rather than treating the historical catalog status as proof of current manufacture.

Is the a temperature transmitter?

No. It is an RTD input module. The module accepts RTD signals directly and performs the associated analog and digital processing before presenting temperature data to the Series 90-30 PLC.

How many RTD channels does provide?

It provides six RTD input channels. The module is intended for direct RTD sensor connection and supports multiple RTD and resistance sensor types documented for the HE693 family.

Can HE693RTD601 replace ?

It should not be treated as an automatic identical replacement. Both are six-channel RTD modules, but the RTD601 is the higher-resolution version. The application should be checked for configuration, scaling, resolution and sensor requirements before substitution.

What should be confirmed before purchasing a replacement?

Provide the complete part number, available hardware/revision information, photographs of the existing module if possible, PLC platform, RTD sensor type, required quantity, required condition, and delivery deadline. For a critical shutdown spare, also request serial-specific inspection information and functio
