Description
- Brand: GE Fanuc
- Full Model Number: IC660ELD100A
- System/Series Family: GE Genius I/O
- One-Sentence Core Function: Electronics assembly for the 115 VAC 8-circuit grouped Genius I/O block used with IC660CBD100-family hardware
- Top 3 Hardcore Specs: 115 VAC nominal block application; 8 grouped I/O circuits; 2 A circuit class
- Stock Status: New surplus / fully tested refurbished
The GE IC660ELD100A is an electronics assembly for the legacy Genius I/O block family, rather than a complete terminal-and-electronics block. GE’s Genius documentation identifies the related IC660CBD100 as a 115 VAC, 8-circuit, 2 A grouped I/O block, with IC660ELD100 serving as its electronics assembly.
Module 3: Commercial-Technical Deep Dive
A failed electronics assembly inside a Genius I/O block does not necessarily mean the complete terminal assembly must be discarded. The GE IC660ELD100A is part of the original IC660CBD100 architecture, where the electronics assembly handles the intelligent I/O functions while the terminal assembly provides the field-wiring interface. GE’s Genius documentation identifies the associated block as an 8-circuit combination input/output unit, rated for a nominal 115 VAC application with 2 A circuit capability. This makes the ELD100A particularly relevant when the field terminal assembly remains mechanically sound but the electronics section ha
The replacement strategy must account for the revision history. GE documentation states that IC660EBD100 replaces IC660ELD100, while IC660EBD101 subsequently replaces both IC660ELD100 and IC660EBD100. The same documentation also warns that newer terminal assemblies are not universally compatible with earlier electronics assemblies. In other words, the key engineering task is not merely matching the ELD100A label—it is confirming the complete electronics revision, terminal assembly generation, and the exact Genius block configuration before inst

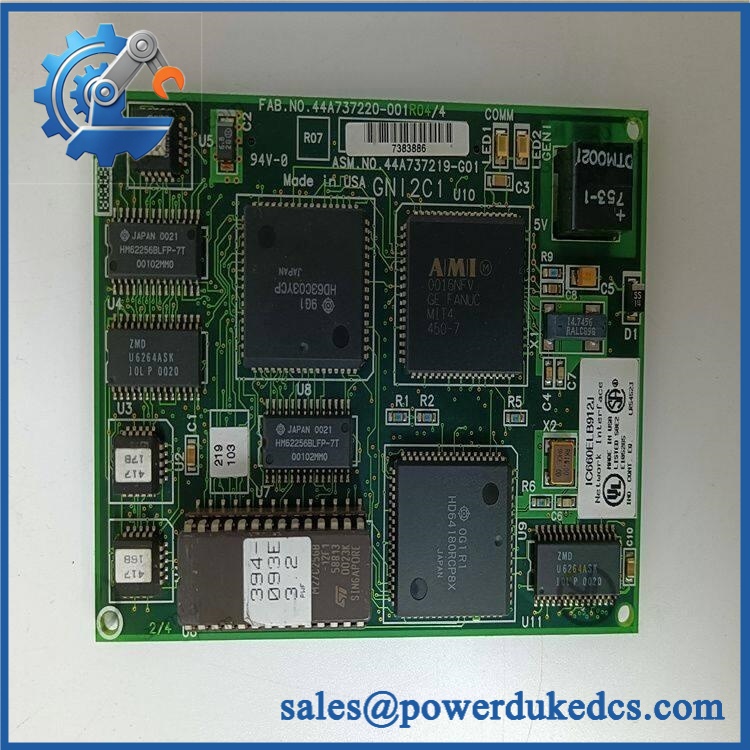

GE IC660ELD100A
Module 4: Compatibility & Installation Traps
Migration/Compatibility
- Replacement type: GE Genius I/O electronics assembly
- Model: IC660ELD100A
- Associated complete block: IC660CBD100
- I/O architecture: 8-circuit grouped input/output
- Nominal block voltage: 115 VAC
- Circuit class: 2 A
- Firmware flash: Not normally treated as a standalone firmware-loading operation
- Logic rewrite: Normally not required, provided the correct Genius block configuration is restored
- Drop-in status: Revision-dependent; do not assume universal interchangeability
- Documented replacement lineage: IC660EBD100 replaces IC660ELD100; IC660EBD101 replaces both the ELD100 and EBD100 as
⚠️ Field Traps (Watch Out)
1. The ELD100A is not the same thing as the complete BBD/CBD block.
The IC660ELD100A is an electronics assembly. The associated terminal assembly is a separate component. GE documentation explicitly distinguishes the electronics assembly from the terminal assembly, so confirm whether the procurement requirement is for the electronics only or the complete Geni
2. Revision compatibility matters.
GE’s documentation states that later electronics assemblies replaced earlier versions and that later terminal assemblies can be incompatible with earlier electronics revisions. Check the exact terminal assembly number before fitting an ELD100A into an existing e
3. Preserve the original block configuration.
The Genius block has configurable network and I/O parameters. Replacing the electronics assembly does not automatically guarantee that the replacement retains the original station configuration. Record the Genius address, baud rate, I/O configuration, and diagnostic settings before removal.
4. Do not test the electronics assembly as if it were a standalone PLC.
The ELD100A operates as part of the Genius block assembly. A meaningful functional test requires a compatible terminal assembly, appropriate field-power conditions, and a Genius Bus test environment.
5. Verify the 115 VAC application before energizing.
The associated IC660CBD100 block is a 115 VAC grouped I/O product. Do not substitute a low-voltage DC Genius electronics configuration simply because the board connector appears
Module 5: Quality Assurance SOP
Each GE IC660ELD100A unit should pass a documented pre-shipment inspection sequence:
- OEM anti-counterfeit visual inspection: Verify GE Fanuc identification, marking, PCB layout, connector arrangement, component population, and manufacturing codes.
- Exact part-number verification: Match the complete identifier against the purchase order and installed Genius I/O BOM.
- Revision inspection: Record all visible revision markings and determine whether the supplied electronics correspond to the existing terminal assembly.
- Mechanical inspection: Check the PCB, connectors, mounting points, terminal-interface contacts, LED section, and housing interfaces for corrosion, contamination, cracks, impact damage, or unauthorized rework.
- Power-path inspection: Check accessible AC supply components, protective devices, and PCB traces for signs of overheating or electrical overstress.
- Power-on self-test (POST): The ELD100A is not an independent processor module with a standalone PLC-style POST. Install it in an approved complete Genius block test fixture and verify normal initialization and diagnostic behavior.
- I/O functional verification: Exercise all 8 grouped I/O circuits through the appropriate terminal assembly and verify correct input/output response under controlled conditions.
- Genius communication handshake verification: Connect the completed block to a compatible Genius Bus controller and verify network communication, block identification, and I/O data exchange.
- Configuration verification: Confirm the station address, bus rate, I/O configuration, fault reporting, and other retained parameters against the approved test record.
- Electrical verification: Where the test fixture permits, confirm correct operation within the associated 115 VAC / 2 A applicatio
- Final QC: Photograph the part number and revision, record the terminal-assembly pairing, retain communication and I/O test results, and package the electronics assembly in ESD-safe material.
Module 6: CRO-Driven Buyer FAQ
1. What is GE ?
The is a GE Genius electronics assembly used in the legacy IC660CBD100 115 VAC 8-circuit grouped I/O architecture. It is not simply a standalone digital in
2. What complete Genius block is associated with ?
GE documentation associates the ELD100 electronics assembly with the block family. The complete block combines the electronics assembly with its corresponding terminal
3. Is interchangeable with IC660EBD100 or IC660EBD101?
Not automatically. GE documents IC660EBD100 as a replacement for IC660ELD100 and IC660EBD101 as a later replacement for both. Terminal-assembly compatibility also has to be checked because later terminal revisions are not universally compatible with earlier electronics as
4. What are the key electrical characteristics of the associated block?
The associated architecture is documented as an 8-circuit combination input/output block for 115 VAC operation with a 2 A circuit class. These figures describe the complete block application and should not be interpreted as standalone specifications for the bare electronics
5. Can be hot-swapped?
Do not assume hot-swap capability. The electronics assembly belongs to a Genius I/O block carrying field wiring and AC power, so replacement should follow the applicable GE Genius maintenance procedure with the block de-energized before removal.
6. What warranty and technical support are provided?
Warranty duration should be stated on the quotation for the exact inventory condition supplied. Technical support should cover exact revision identification, terminal-assembly compatibility, Genius Bus configuration, I/O testing, and documented inspection results. Field rewiring, controller configuration changes, and energized maintenance remain the responsibility of qualified controls personel.
