GE IC670MDL240J | Field Control 120VAC 16 Input Module

Description

• Brand: GE Fanuc
• Full Model Number: IC670MDL240J
• Base Model: IC670MDL240
• System/Series Family: GE Field Control Distributed I/O
• One-Sentence Core Function: 16-point grouped 120 VAC discrete input module for GE Field Control I/O stations
• Top 3 Hardcore Specs: 16 discrete inputs; 0–132 VAC input range; 15 mA per point at 120 VAC
• Frequency: 47–63 Hz
• Input Response: 12 ms typical ON; 25 ms typical OFF
• Isolation: 250 VAC continuous; 1500 VAC for 1 minute
• Bus Interface: Field Control Bus Interface Unit
• Stock Status: New Surplus / Fully Tested Refurbished subject to actual inventory inspection

Module 3: Commercial-Technical Deep Dive

A failed AC input module can remove an entire group of field signals from a legacy Field Control station, even when the Bus Interface Unit and neighboring modules remain healthy. The GE IC670MDL240J belongs to the IC670MDL240 family, documented by GE as a 120 VAC grouped discrete input module with 16 inputs. The module receives its operating logic power from the Bus Interface Unit, while an external 120 VAC source powers the field input devices. GE specifies a 0–132 VAC input range at 47–63 Hz, with one status LED for each input and a separate PWR indication.

The practical advantage is predictable grouped AC signal acquisition without requiring a separate input circuit for each field device. Each point draws approximately 15 mA at 120 VAC, with an input impedance of about 8.6 kΩ reactive; the documented ON threshold is 70–120 VAC, while OFF is 0–20 VAC. Response time is approximately 12 ms typical / 20 ms maximum for ON and 25 ms typical / 40 ms maximum for OFF. The module provides 250 VAC continuous isolation between user input and logic, user input and frame ground, and between groups, with a 1500 VAC one-minute withstand rating; individual points within the same group are not isolated from one another.

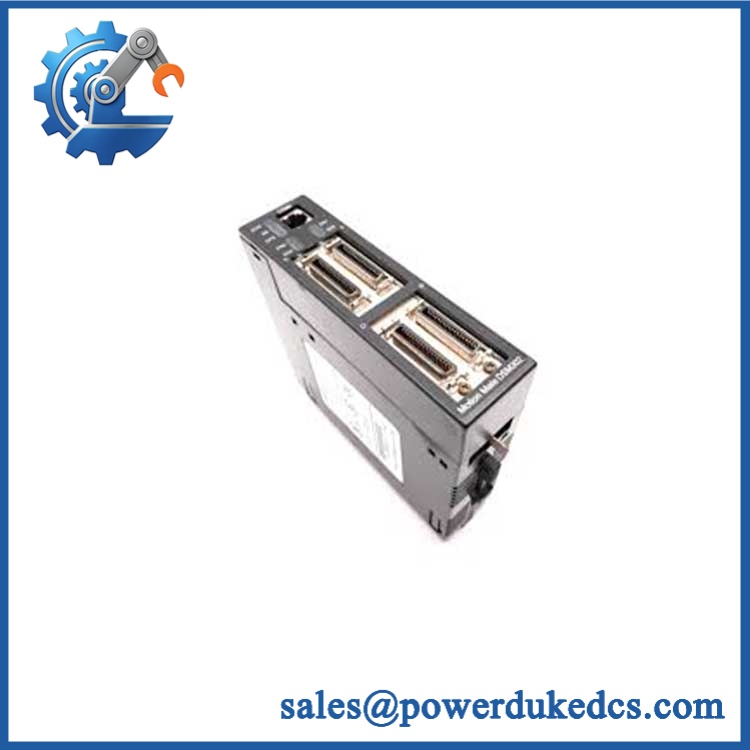

GE IC670MDL240J

Module 4: Compatibility & Installation Traps

Migration/Compatibility

• Replacement status: GE Fanuc Field Control 120 VAC Grouped Discrete Input Module
• Logic rewrite: Normally not required for a like-for-like replacement when the existing Field Control station configuration and module position are retained.
• Firmware flash: Not applicable to the I/O module itself.
• Drop-in status: Generally direct when the existing installation uses the same IC670MDL240 family and compatible Field Control terminal block.
• Inputs: 16 grouped discrete inputs.
• Rated voltage: 120 VAC
• Input range: 0–132 VAC, 47–63 Hz.
• Input current: 15 mA per point at 120 VAC.
• Power source: Module logic power comes from the Bus Interface Unit; external AC powers the field input devices.
• Data width: 16 bits / 2 bytes of discrete input data presented through the Bus Interface Unit.
• Revision note: The supplied J suffix should be matched against the physical module marking. The technical documentation reviewed here establishes the IC670MDL240 family specifications but does not independently define every suffix-level revision difference.

⚠️ Field Traps (Watch Out)

• Grouped-input wiring: The 16 inputs share a common group structure. Do not treat individual points as separately isolated channels; GE explicitly states there is no isolation between individual points within the group.
• 120 VAC threshold: A field device producing substantially less than the specified ON threshold may not register reliably. Verify the actual voltage at the module terminals, not only at the upstream source.
• Neutral/common wiring: The terminal arrangement depends on the Field Control base being used. Record every input and common connection before transferring the wiring.
• Bus Interface Unit dependency: The module does not operate as a standalone smart Ethernet I/O device. The BIU supplies module power and handles the host interface, so a healthy module can still appear unavailable when the BIU or Field Control network is faulty.
• AC isolation: Although the module has substantial input-to-logic isolation, individual points in the same group are not isolated from each other. Verify the circuit topology before mixing independent AC sources.

Module 5: Quality Assurance SOP

Before shipment, the GE IC670MDL240J should undergo a Field Control discrete-input inspection:

1. OEM anti-counterfeit visual inspection — verify GE Fanuc markings, IC670MDL240J identification, module label, terminal/keying arrangement, enclosure, and PCB construction.
2. Revision verification — record the complete suffix and compare the physical marking with the customer’s installed module.
3. Mechanical inspection — inspect terminal interfaces, module latch, keying features, housing, LEDs, and connector surfaces for damage or contamination.
4. Keying verification — confirm the mechanical keying corresponds to the MDL240 module family before installation in the test base.
5. Controlled Field Control power-up — mount the module on a compatible terminal base and supply the required Bus Interface Unit power.
6. Power-on self-test (POST) — verify PWR indication and expected module initialization.
7. Bus Interface Unit handshake — install the module in a compatible Field Control station and verify module recognition and data exchange through the BIU.
8. Input-voltage verification — apply calibrated AC signals across representative channels and verify correct ON/OFF state recognition.
9. Threshold testing — verify representative switching behavior around the documented ON and OFF voltage regions.
10. Response-time testing — confirm representative ON/OFF response against the specified timing using calibrated signal-generation equipment.
11. Channel-indicator verification — confirm each tested input’s corresponding LED follows the actual field state.
12. Isolation verification — perform the applicable insulation/withstand tests using the approved procedure and limits.
13. Final QC record — document exact part number, revision, test base, BIU configuration, injected voltages, switching results, photographs, and packaging condition.

For a 120 VAC input module, a simple LED test is not sufficient. BIU recognition, input thresholds, response timing, channel indication, and electrical isolation are the meaningful acceptance checks.

Module 6: CRO-Driven Buyer FAQ

1. Is GE IC670MDL240J obsolete, and how do I verify an authentic replacement?

The IC670MDL240 is legacy GE Fanuc Field Control hardware and is documented as a 120 VAC grouped 16-point input module. For procurement, verify the complete IC670MDL240J marking, mechanical keying, revision, and Field Control terminal-base compatibility rather than purchasing a generic 120 VAC input module.

2. Can I hot-swap the ?

Field Control documentation includes provisions for hot insertion/removal of certain I/O modules, but do not treat energized removal as universally safe for a 120 VAC field-input module. Isolate the affected field circuits and follow the installation procedure for the exact station and operating environment before removing the module.

3. Will replacing the require PLC programming?

Normally no for a like-for-like module replacement. The key checks are module position, Field Control configuration, BIU recognition, input wiring, and signal-state verification. The control application normally does not need to be rewritten simply because the physical input module was replaced.

4. What voltage does the accept?

The IC670MDL240 family is rated for 120 VAC, with a documented input range of 0–132 VAC at 47–63 Hz. The specified ON-state range is 70–120 VAC, while the OFF-state range is 0–20 VAC.

5. Are all 16 inputs individually isolated?

No. GE specifies 250 VAC continuous isolation from user input to logic, user input to frame ground, and between groups, but there is no isolation between individual points within the same group. This is important when different AC sources or circuits are being considered for the same module.

Warranty and Technical Support

Warranty duration should be stated according to the actual inventory condition, such as new surplus or tested refurbished. Technical support should cover exact identification, Field Control/BIU compatibility, terminal mapping, 120 VAC signal verification, input-threshold testing, and documented pre-shipment QA. Live AC field wiring and process commissioning remain the responsibility of qualified electrical and controls personnel.
