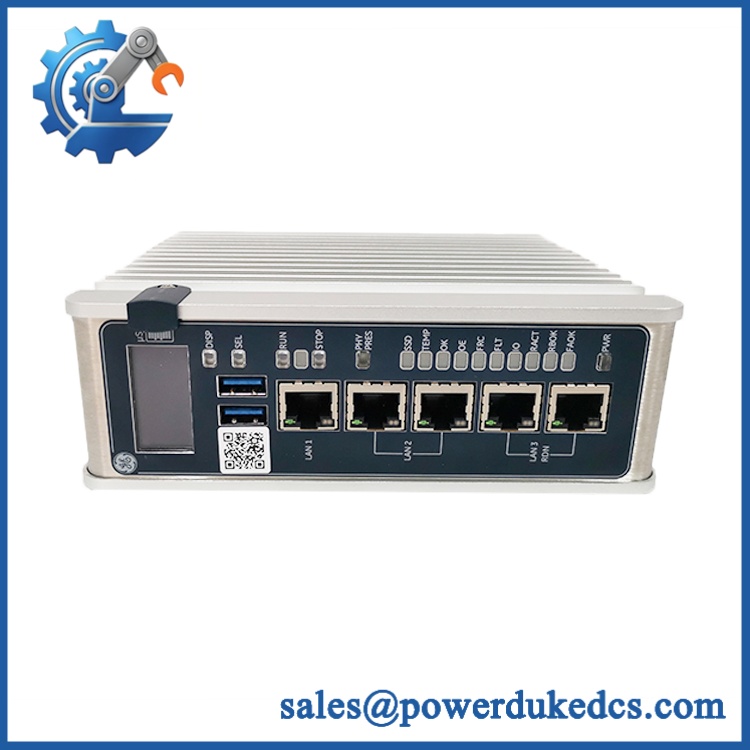

GE IC695CPE400-ABAB | Replacement RX3i Rackless Controller

Description

• Brand: GE / GE Intelligent Platforms / Emerson
• Full Model Number: IC695CPE400-ABAB
• System/Series Family: PACSystems RX3i
• Core Function: Rackless PLC CPU and embedded edge controller for PACSystems applications
• Processor: 1.2 GHz
• Memory: 64 MB RAM + 64 MB non-volatile Flash
• Ethernet: 10/100/1000 Mbps Ethernet interfaces
• Serial: 1 × RS-232
• USB: 2 × USB-A 3.0
• Power Input: 18–30 VDC
• Maximum Input Power: 20 W
• Operating Temperature: -40°C to +70°C
• Dimensions: 203.5 × 56.7 × 153.6 mm
• Programming: Ladder Diagram, Structured Text, Function Block Diagram, C
• Memory Backup: Optional IC695ACC403 Energy Pack
• Stock Status: New Surplus / Fully Tested Refurbished — verify exact hardware revision, firmware, and accessories

Emerson’s current documentation identifies the IC695CPE400 as an RX3i CPE400 controller with 1.2 GHz processing, 64 MB RAM, 64 MB non-volatile Flash, multiple Gigabit Ethernet interfaces, RS-232, and USB connectivity. Emerson’s current product documentation also lists firmware information for the CPE400 platform.

Module 3: Commercial-Technical Deep Dive

A failed rackless CPU can stop an RX3i machine even when the distributed I/O remains fully operational. The GE IC695CPE400-ABAB is a PACSystems RX3i CPE400 controller that combines PLC execution with high-speed Ethernet and embedded edge-computing capabilities. The controller uses a 1.2 GHz processor, 64 MB RAM, and 64 MB non-volatile Flash, while its Ethernet architecture supports 10/100/1000 Mbps operation. Emerson also documents one RS-232 interface and two USB-A 3.0 ports, providing practical options for programming, diagnostics, and connected applications.

The hard ROI is architectural: the CPE400 eliminates the need for a traditional RX3i rack-mounted CPU in applications suited to its rackless design while retaining PACSystems programming and communications capabilities. The controller accepts 18–30 VDC and has a maximum input power requirement of 20 W, while an optional IC695ACC403 Energy Pack can preserve data during an unexpected power interruption. Emerson’s current platform documentation also confirms support for industrial protocols including SRTP, Modbus TCP, EGD, PROFINET, OPC UA, and DNP3, subject to the installed software and configuration. —Do not assume every protocol is enabled on every shipped controller; verify the firmware and licensed software configuration before commissioning.

GE IC695CPE400-ABAB

Module 4: Compatibility & Installation Traps

Migration/Compatibility

For an existing PACSystems RX3i installation specified for IC695CPE400-ABAB, the preferred strategy is a like-for-like CPE400 replacement. The controller is designed as a rackless CPU and supports RX3i PACSystems applications through the common PACSystems programming environment.

A complete application rewrite is not normally required. The practical migration task is restoring the approved PLC project, firmware-compatible configuration, network settings, retained data, and any required Energy Pack or removable-storage configuration. Emerson currently lists CPE400 firmware R11.01 as the latest firmware version on its product documentation page, but the appropriate firmware should be matched to the customer’s existing application and hardware revision rather than automatically applying the newest release.

⚠️ Field Traps (Watch Out)

• LAN-port architecture: The CPE400 has distinct Ethernet interfaces, including an unswitched LAN1 and switched LAN2/LAN3 interfaces, while the Field Agent connection uses another Ethernet path. Reconnecting the wrong network to the wrong port can produce an apparently healthy CPU with missing PLC or edge communications.
• Firmware mismatch: Record the existing firmware and application version before replacement. Emerson maintains multiple CPE400 firmware releases, and the correct combination depends on the installed controller configuration.
• Energy Pack dependency: If the application relies on the IC695ACC403 memory-backup mechanism, verify the Energy Pack condition and connection before returning the replacement controller to service.
• 18–30 VDC input: Verify the actual cabinet supply voltage and polarity. The CPE400 is not a 24 VDC-only device in the narrow sense; Emerson specifies an input range of 18–30 VDC.
• Rackless mounting: The CPE400 is not a conventional RX3i rack-mounted CPU. Confirm the cabinet mounting arrangement, clearances, Ethernet routing, and power wiring before installation.

Module 5: Quality Assurance SOP

1. OEM anti-counterfeit visual inspection — verify GE/PACSystems identification, complete IC695CPE400-ABAB code, serial number, OLED display, Ethernet ports, USB ports, and enclosure markings.
2. Part-number reconciliation — photograph the complete ordering code, hardware revision, serial data, firmware information, and all accessory identifiers.
3. Mechanical inspection — inspect the enclosure, mounting points, RJ45 connectors, USB ports, RS-232 connector, power connector, display, and Energy Pack interface for damage.
4. Power-on self-test (POST) — apply a controlled 18–30 VDC supply and verify startup sequence, OLED operation, processor initialization, and diagnostic indications.
5. Firmware verification — record the installed firmware revision and compare it against the customer-required version and approved PACSystems project.
6. Ethernet link verification — independently test the relevant Ethernet ports at 10/100/1000 Mbps and verify link and traffic behavior.
7. Serial interface verification — test the RS-232 interface using an approved diagnostic or protocol configuration.
8. USB interface inspection — verify both USB-A 3.0 ports for correct enumeration using an approved test device.
9. PLC application execution test — load an approved test project and verify controller execution, task scheduling, diagnostics, and expected program behavior.
10. Protocol handshake verification — test representative SRTP, Modbus TCP, EGD, or PROFINET communications according to the customer’s installed architecture.
11. Energy Pack verification — where supplied and applicable, verify detection and approved memory-backup behavior of the IC695ACC403 Energy Pack.
12. Stability observation — operate the controller under representative program and network load while monitoring for resets, watchdog events, link loss, abnormal temperature, or storage errors.
13. Final QC release — retain identification photographs, firmware information, communication logs, application-test results, and packaging inspection records.

For a CPE400 controller, successful boot-up is only the first gate. The stronger acceptance result is verified PLC execution plus confirmed Ethernet, serial, and memory-backup behavior where applicable.

Module 6: CRO-Driven Buyer FAQ

1. What is GE IC695CPE400-ABAB?

It is a PACSystems RX3i CPE400 rackless PLC CPU with a 1.2 GHz processor, 64 MB RAM, 64 MB non-volatile Flash, Gigabit Ethernet capability, RS-232, USB, and embedded Field Agent/edge functionality.

2. Is IC695CPE400-ABAB interchangeable with other CPE400 units?

Do not assume complete interchangeability from the CPE400 designation alone. Verify the full ordering code, hardware revision, firmware compatibility, required Ethernet topology, and installed Field Agent or PACEdge configuration before substitution.

3. Does CPE400 require an Energy Pack?

The controller can use the IC695ACC403 Energy Pack as a memory-backup mechanism. Whether the installed machine requires it depends on the application’s retention strategy and power-failure requirements.

4. Can the IC695CPE400 be hot-swapped?

Do not assume hot-swap capability. The controller is connected to DC power, active Ethernet networks, serial equipment, and potentially retained-data hardware. Follow the applicable PACSystems installation and maintenance procedure before removal.

5. Does replacing CPE400 require PLC programming?

The application does not normally need to be rewritten solely because the CPU is replaced. The correct PLC project, firmware-compatible configuration, IP settings, retained data, and required edge/Field Agent configuration must be restored and verified before production operation.

6. What warranty and technical support should I expect?
