1. GE IC697CPM914 | Authentic Series 90-70 Controller Unit

2. Unboxing & Physical Snapshot

• Model & Brand: GE Fanuc IC697CPM914 CPU Module for the Series 90-70 PLC platform. This processor module uses an Intel 80486DX-based CPU architecture with floating-point processing capability.
• Physical Dimensions (Approximate W × H × D): 127 × 89 × 38 mm (5.0 × 3.5 × 1.5 in.).
• Estimated Shipping Weight: Approximately 0.8 kg (1.75 lb) including protective ESD packaging and export carton.
• What’s in the Box:
  • GE Fanuc IC697CPM914 CPU Module
  • Front faceplate assembly
  • Battery-backed memory section
  • 15-pin serial communication connector interface
  • Anti-static (ESD) shielding bag
  • Protective foam packaging
  • Product identification label
  • Documentation when supplied

3. Product Introduction

The IC697CPM914 mounts directly into the GE Series 90-70 PLC rack and functions as the central processing unit for control execution, communication, and application management. Confirm the rack slot position before installation. The card-edge connector, retaining hardware, and backplane interface require careful inspection because mechanical damage can prevent startup even when the processor board appears visually intact.

This CPU module was designed for industrial control applications requiring deterministic PLC execution, floating-point calculations, and large I/O handling capability. It uses a 32 MHz 80486DX processor and supports up to 512 KB of battery-backed RAM, with a serial interface for programming and workstation communication. Check the battery condition before returning long-stored units to service (which is critical for preventing loss of retained application data).

4. Core Technical Specifications

Parameter	Value
Manufacturer	GE Fanuc / Emerson Automation
Model Number	IC697CPM914
Product Type	PLC CPU Module
Product Family	Series 90-70
Processor	Intel 80486DX 32-bit CPU
Clock Speed	32 MHz
Instruction Type	32-bit instruction processing
Floating Point Support	Yes
User Memory	512 KB SRAM
Memory Backup	Lithium battery-backed retention
Battery Retention Period	Approximately 6 months
Power Input	5 VDC
Current Consumption	2.8 A
Maximum Power Dissipation	Approximately 14 W
Serial Port	One RS-422/RS-485 compatible port
Connector Type	15-pin D-sub serial connector
Discrete I/O Capacity	Up to 2000 points
Analog I/O Capacity	Up to 8000 points
Supported I/O	GE Series 90-70 modules
Mounting Method	Single PLC rack slot
Operating Temperature	0°C to 60°C typical
Storage Temperature	-40°C to 85°C typical
Weight	Approximately 0.79 kg

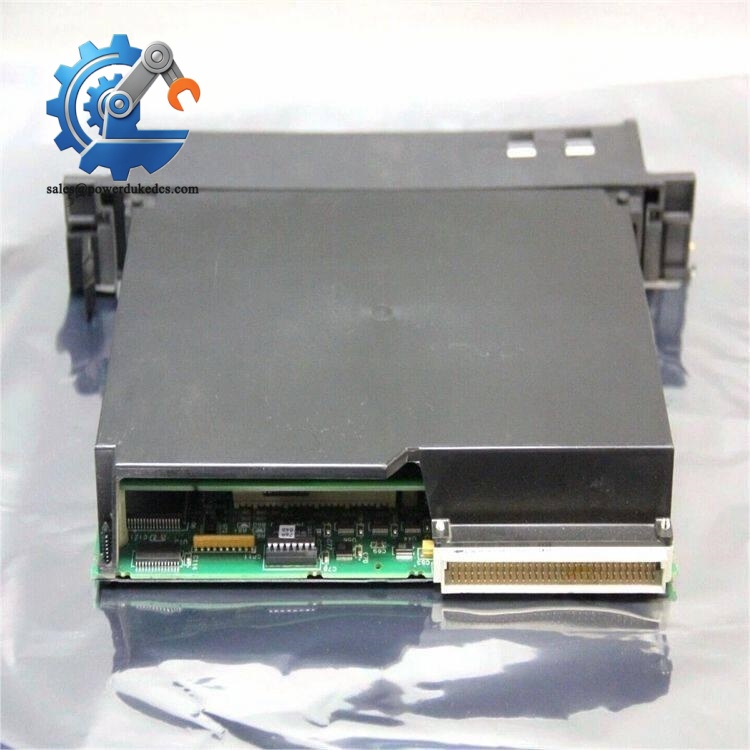

GE IC697CPM914

5. Global Compliance & Industry Certifications

Expected compliance considerations for the GE IC697CPM914 include:

• CE Mark compliance for applicable Series 90-70 system installations
• UL/cUL Listed status where applicable to the complete PLC system assembly
• IEC 61010 industrial control equipment safety considerations
• ATEX/IECEx suitability only when installed within an approved hazardous-area enclosure and system design
• Marine approvals such as DNV GL only when included in a certified marine automation package

UL recognition is important for industrial control processors because it confirms that electrical spacing, insulation, and component requirements have been evaluated within the approved equipment category.

Verify specific lot certifications with OEM.

6. Long-Term Storage & Asset Preservation Guide

Keep the IC697CPM914 inside its original anti-static (ESD) shielding bag during warehouse storage. The edge connector fingers and battery compartment require protection from dust and oxidation.

Check the lithium battery date before installation. Long-stored CPU modules may retain memory incorrectly if the battery has aged beyond its service life.

Maintain storage humidity below 60% RH. Avoid high-temperature areas, direct sunlight, and locations near corrosive chemicals because older PCB assemblies can be more sensitive to environmental exposure.

Before commissioning, inspect the PCB surface, battery holder, serial connector, retaining clips, and backplane contacts. Record firmware revision, hardware revision, and serial number in the spare asset database.

7. Physical Installation Prerequisites

• Install only in compatible GE Series 90-70 PLC racks.
• Remove rack power before inserting or removing the CPU module.
• Verify the backplane connector is clean and undamaged.
• Confirm the lithium battery condition before startup.
• Ensure cabinet grounding follows plant electrical standards.
• Maintain sufficient airflow around the rack assembly.
• Leave at least 50 mm clearance above and below the rack where practical.
• Avoid installing near high-frequency drives or heavy electromagnetic sources.
• Verify PLC configuration compatibility before downloading application software.

8. Buyer’s FAQ (Logistics & Compliance Focus)

Q: What HS Tariff Code is commonly used for the GE IC697CPM914?

A: PLC CPU modules are commonly evaluated under HS 8537 classifications for electrical control equipment. The exact customs code depends on the importing country’s interpretation and the declared function of the module.

Q: Does Country of Origin (COO) affect importing this CPU module?

A: Yes. COO affects customs declarations, duty treatment, contractual compliance, and industrial asset traceability. Confirm the origin shown on the module label, commercial invoice, and packing documentation.

Q: Should shipping insurance be arranged for the IC697CPM914?

A: Recommended. This CPU module contains processor circuitry, memory components, and a battery-backed retention system. Shock, moisture, or ESD exposure during transport can create failures that may not be visible during receiving inspection.

Q: Does the IC697CPM914 include the latest firmware pre-loaded?

A: Firmware depends on the specific hardware revision and previous service history. GE released multiple IC697CPM914 revisions, so verify the installed firmware level against the existing Series 90-70 application before commissioning.
