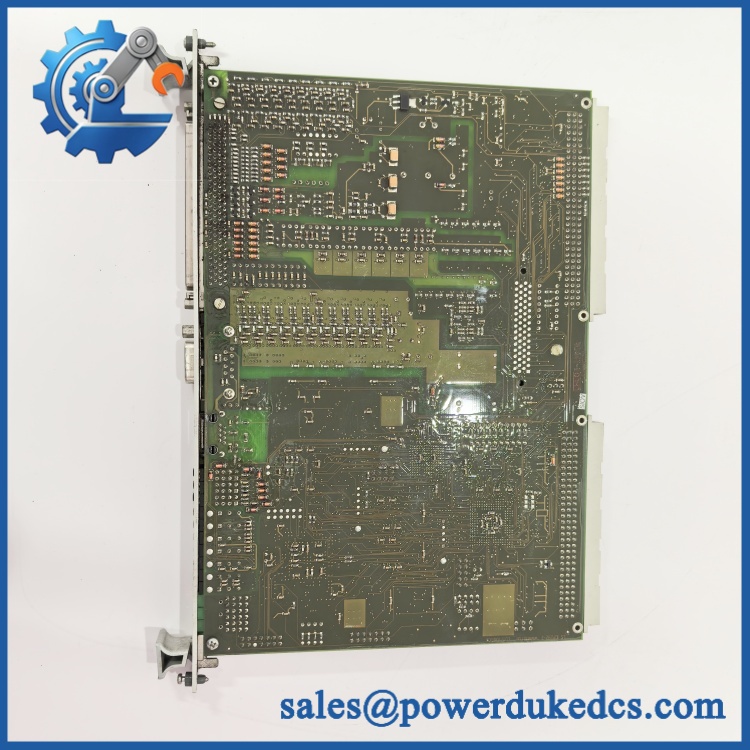

GE ICP232.2-5V 029.361114 | Replacement Control Interface

Description

• Brand: GE
• Full Model Number: ICP232.2-5V / 029.361114
• System/Series Family: GE Industrial Control / Interface Electronics
• Core Function: Industrial electronic interface/control module identified by GE catalog marking ICP232.2-5V
• Top 3 Hardcore Specs: 5 VDC designation; GE part number 029.361114; ICP232.2 module designation
• Stock Status: New Surplus — exact hardware revision and application to be confirmed before shipment

Module 3: Technical Product Introduction

A part number such as ICP232.2-5V 029.361114 should not be treated as a generic 5 V interface board without first matching the installed equipment. The available public documentation for this exact marking is limited, and I cannot verify a reliable GE technical datasheet that establishes its complete I/O architecture, communication protocol, current consumption, dimensions, or supported controller family. For procurement purposes, the safest identification is therefore the complete marking: ICP232.2-5V / 029.361114.

The “-5V” designation strongly indicates a 5 V supply or 5 V electrical variant, but it should not be converted into a complete electrical specification without the corresponding GE drawing or equipment manual. In particular, do not infer RS-232, RS-485, TTL, analog, or digital I/O functionality from the ICP232 designation alone. The actual PCB revision and host-system documentation should determine the replacement decision. That caution is important for legacy GE electronics, where visually similar assemblies can have different electrical interfaces.

Module 4: Application Scenarios & Field Realities

• When maintaining a legacy GE control cabinet, use the complete 029.361114 number as the primary purchasing reference. The board designation alone may not uniquely identify the required hardware revision.
• For an intermittent control-interface fault, inspect the associated power rail, connector contacts, backplane, and external wiring before replacing the module. A 5 V logic assembly can appear completely inactive when the actual problem is upstream power distribution.
• During a planned cabinet refurbishment, photograph the original board from both sides before removal. Record every visible GE marking, revision code, connector label, and jumper position. Those details can be more useful than a generic product description when the original documentation is unavailable.
• If the module is being used as part of a machine or process-control retrofit, verify the host equipment first. The exact application cannot be established reliably from .2-5V 029.361114 alone, so electrical substitution should wait until the installed system has been identified.

GE ICP232.2-5V 029.361114

Module 5: Migration, Compatibility & Installation Traps

Replacement Matrix

Field Trap 1 — Do not infer the interface from the model name:
The designation should not automatically be interpreted as an RS-232 interface or any other specific communications standard. Without an authoritative GE drawing for 029.361114, the interface type remains unverified.

Field Trap 2 — 5 V does not define the complete power requirement:
Even if the module is a 5 V variant, the correct installation requires verification of supply polarity, allowable voltage tolerance, current requirement, grounding, and connector pinout. Applying power based solely on the “5V” marking is unsafe.

Installation note: Before energizing a replacement, compare the original module’s connector pinout with the replacement. Use ESD protection when handling the PCB and verify the host rack’s supply voltage with a calibrated meter. If the exact GE equipment manual is unavailable, perform a controlled bench identification before installing the module into production equipment.

Module 6: Quality Assurance SOP

1. OEM identification inspection — Verify , 029.361114, all revision markings, serial information, and PCB identification codes.
2. Physical PCB inspection — Check the board for corrosion, cracked solder joints, damaged connectors, burned components, contamination, bent pins, and evidence of previous repair.
3. OEM anti-counterfeit visual inspection — Compare GE labels, PCB construction, component layout, connector arrangement, and manufacturing markings against authenticated reference hardware.
4. Power-rail verification — Before applying power, establish the correct supply voltage, polarity, and pinout from an authoritative drawing or verified reference unit. Do not use the “5V” marking as the only basis for connection.
5. Power-on self-test (POST) — Where the host test fixture is available, energize the module under controlled conditions and monitor current consumption, status indicators, and any applicable diagnostic response.
6. Interface verification — Identify the actual electrical interface from the approved GE documentation or known-good test system, then verify representative input/output or communication behavior.
7. Communication handshake verification — If the module is confirmed to contain a communication interface, establish a controlled connection with the appropriate host equipment and verify expected data exchange.
8. Thermal observation — Monitor the module during the functional test for abnormal current draw, localized heating, unstable operation, or unexpected component temperature.
9. Revision traceability — Record the exact PCB revision and all secondary identification markings. This is particularly important because the public technical information for this exact part number is limited.
10. Final inspection and packaging — Photograph the complete identification label, record the test result, protect the PCB against ESD and mechanical shock, and retain the inspection record with the shipment.

Important procurement note: Unlike the GE Multilin and PACSystems models above, .2-5V 029.361114 has insufficient publicly verifiable technical information to responsibly assign detailed I/O, protocol, dimensions, or performance specifications. For a production replacement, the actual nameplate/PCB revision and host-equipment model should be used to establish the authoritative specification.
