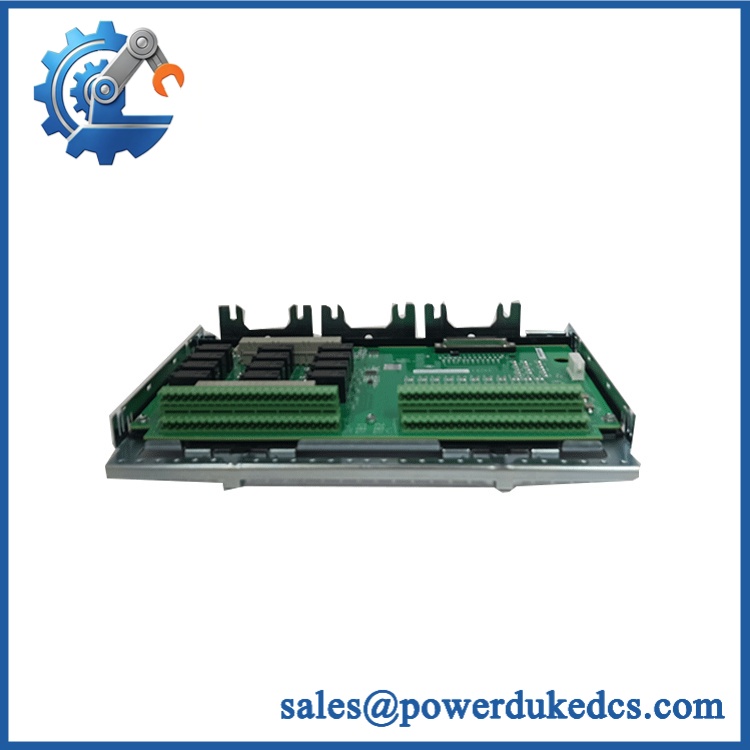

GE IS200TDBSH2ACC | Mark VIe Simplex Discrete I/O Terminal Board

Description

• Brand: GE General Electric
• Full Model Number: IS200TDBSH2ACC
• Lifecycle Status: Active / Lifecycle-managed
• Core Function: Simplex discrete input/output terminal board for GE Mark VIe I/O
• Top 3 Technical Specs: 24 contact inputs; 24 VDC nominal wetting supply; 4 ms hardware input filter
• Stock & Condition: New Surplus / Tested Refurbished; Physical stock confirmation required; Emergency dispatch subject to order cutoff

The IS200TDBSH2ACC is the H2 configuration of GE’s TDBS Simplex Discrete I/O Terminal Board family. GE certification documentation identifies IS200TDBSH2A as the terminal relay board used with the IS220PDIOH1A Mark VIe I/O Pack. Independent technical references for the H2A family specify 24 contact inputs, a nominal 24 VDC wetting supply, and a 4 ms hardware filter.

Module 3: Obsolescence & Supply Chain Deep Dive

A failed IS200TDBSH2ACC can interrupt a large group of discrete field signals, including contacts used for permissives, interlocks, status indications, switches, and other turbine-control inputs. The TDBS H2 configuration provides the field termination layer for a simplex discrete I/O arrangement, while the associated I/O Pack handles controller-side communications. GE’s certification documents specifically associate the TDBSH2A family with the IS220PDIOH1A Mark VIe I/O Pack.

From a TCO standpoint, an exact replacement can preserve the existing field wiring, terminal layout, I/O Pack, and controller configuration. Replacing the terminal board instead of redesigning the I/O architecture can avoid extensive point-by-point rewiring and retesting. The H2 configuration is intended for the lower-voltage discrete-input arrangement; independent technical references list 24 VDC nominal operation with an 18.5–32 VDC range, so procurement should verify the installed field-wetting supply before approving the replacement.

Module 4: Compatibility & Replacement Matrix

Field Traps — Watch Out

• Voltage variant mismatch: The H2A configuration is intended for 24 VDC discrete inputs. Independent documentation states that the H2A should not be used for 48 VDC or 125 VDC wetting applications; those applications require different TDBS configurations.
• I/O Pack pairing: GE certification documentation identifies the TDBSH2A family with the IS220PDIOH1A I/O Pack. Do not approve a different PDIO-family terminal board solely because its mounting and connectors appear similar.

GE IS200TDBSH2ACC

Module 5: Quality Assurance & Testing SOP

The terminal board should be tested point-by-point because an incorrect replacement can affect many discrete signals simultaneously.

• Incoming traceability: Record GE identification, complete IS200TDBSH2ACC marking, revision, serial/lot information, and visible board codes.
• OEM anti-counterfeit visual inspection: Inspect PCB markings, labels, terminal blocks, connectors, relay components, solder quality, and evidence of unauthorized rework.
• Mechanical inspection: Verify mounting holes, terminal blocks, connector alignment, board edges, mounting hardware, and insulating components.
• Power-on self-test (POST): Install with an approved PDIO test arrangement and verify normal startup behavior.
• Supply verification: Apply controlled 24 VDC excitation and check input current, supply stability, and abnormal heating.
• Terminal continuity test: Verify each applicable terminal path against the approved wiring map.
• 24-channel contact simulation: Exercise open and closed states across all 24 inputs.
• Voltage-range verification: Confirm correct contact detection within the applicable H2A voltage range.
• Debounce test: Verify the expected 4 ms hardware filtering behavior using controlled contact transitions.
• PDIO integration test: Verify signal transfer between the TDBS terminal board and IS220PDIOH1A I/O Pack.
• Diagnostic test: Confirm correct input-state reporting and identify any persistent open, short, or communication faults supported by the test setup.
• I/O load testing: Apply representative field-side loads and monitor terminal stability and temperature rise.
• Fault simulation: Introduce controlled contact and wiring faults on selected channels and verify the expected system response.
• Extended operation: Perform repeated input transitions across the configured channels while monitoring intermittent faults and signal integrity.
• Final QC release: Record excitation voltage, terminal-map verification, channel results, I/O Pack identification, inspection date, photographs, and technician approval.

Module 6: Procurement & Lifecycle FAQ

1. Is the GE IS200TDBSH2ACC genuinely in stock, and what is the cutoff for emergency shipping?

Current supplier listings show the as commercially available, with some listings reporting in-stock status. Actual availability should be confirmed against the physical unit, exact suffix, revision, and condition before PO release. For an emergency requirement, confirm warehouse quantity and same-day dispatch cutoff before authorization.

2. How do you guarantee the condition and authenticity of this surplus terminal board?

Verification should begin with the complete identification and inspection of PCB markings, terminal construction, connectors, mounting hardware, and visible components. Functional QA should then exercise the 24 discrete inputs using controlled 24 VDC signals and confirm communication through the associated PDIO I/O Pack.

3. Are there any firmware compatibility issues I should warn my engineers about before issuing the PO?

There is no conventional firmware requirement at the passive terminal-board level. The important compatibility checks are the TDBS H2 configuration, 24 VDC wetting supply, terminal mapping, associated IS220PDIOH1A I/O Pack, and Mark VIe application configuration. GE certification documentation supports the TDBSH2A/PDIO pairing.

4. Can the replace the existing terminal board without hardware modification?

For an exact replacement in the same Mark VIe H2A installation, cabinet modification is normally unnecessary. Confirm the 24 VDC field-wetting arrangement, connector configuration, terminal mapping, mounting arrangement, and associated PDIO I/O Pack before energization.

5. What warranty and return terms should procurement require?

The PO should specify , exact revision, associated I/O Pack, condition, test status, warranty period, and return procedure. Warranty coverage should address DOA and verified terminal-board failure while excluding damage caused by incorrect field voltage, wiring errors, short circuits, ESD, improper installation, or unauthorized modification.
