GE IS220PPRFH1B | PROFIBUS Master Gateway I/O Pack | COO

Description

• Model & Brand: GE General Electric IS220PPRFH1B
• Series: Mark VIe Speedtronic
• Functional Designation: PPRF
• Product Type: PROFIBUS DPM Master Gateway I/O Pack
• Physical Dimensions: Approx. 160 × 160 × 120 mm as a shipping/product envelope reported for this assembly; verify the actual enclosure dimensions before cabinet layout work.
• Estimated Shipping Weight: Approximately 0.8–0.9 kg before final export packaging.
• What’s in the Box: IS220PPRFH1B I/O pack, ESD protective packaging, and applicable inspection documentation. The associated IS200SPIDG1A accessory board is not assumed unless expressly supplied.

Product Introduction

The GE IS220PPRFH1B is a specialized Mark VIe communication I/O pack for integrating PROFIBUS-DP devices into the turbine-control architecture. It operates as a PROFIBUS DPV0 Class 1 master, using an RS-485 interface through the COM-C communication assembly while exchanging the resulting process data with the Mark VIe controller through the I/O network. Up to 125 PROFIBUS slave devices can be addressed within the documented architecture (subject to application configuration and PROFIBUS network design).

Physical pairing is important. The PPRF pack is associated with the IS200SPIDG1A identification/terminal board, and GE hazardous-location documentation specifically evaluates the PPRFH1B together with this accessory. The module therefore should not be purchased as a generic PROFIBUS converter; the complete Mark VIe hardware combination, firmware revision, network topology, and site configuration all form part of the engineering identity.

Core Technical Specifications

Communication architecture

The PPRFH1B’s critical function is gateway processing rather than conventional analog or discrete field acquisition. The COM-C module provides the PROFIBUS RS-485 physical interface, while the PPRF assembly manages the exchange between PROFIBUS slave data and the Mark VIe I/O Ethernet environment.

The upper network limit should not be interpreted as a guaranteed plant design. Cable length, baud rate, slave diagnostics, bus termination, device GSD configuration, and the actual process-data map all affect the usable network architecture.

Power and thermal consideration

The documented supply specification is 28.0 VDC nominal, 27.4–28.6 VDC, with a maximum current of 0.18 A. That corresponds to roughly 5 W at the nominal supply, so the module’s local heat contribution is relatively modest. Cabinet thermal calculations should still include neighboring I/O packs and the associated network hardware.

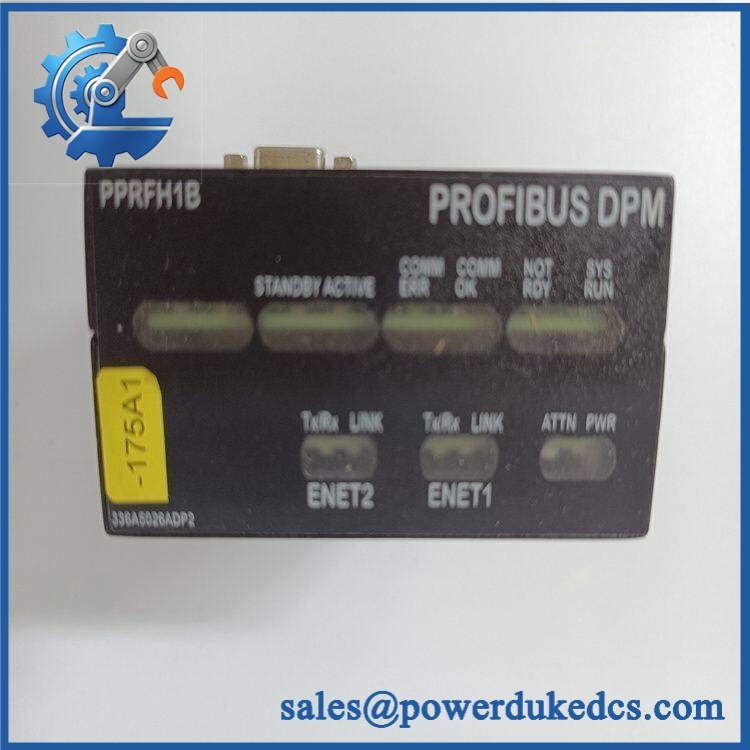

GE IS220PPRFH1B

Global Compliance & Industry Certifications

This part has an important certification distinction.

GE documentation identifies the IS220PPRFH1B + IS200SPIDG1A combination within Mark VIe hazardous-location certification. The documented electrical rating is 28 VDC, 0.18 A maximum, with a T4 temperature classification over the specified -20°C to +55°C ambient range. IECEx documentation also lists this PPRF system combination. These approvals belong to the defined equipment combination and installation conditions; they should not be interpreted as an unrestricted certification of a bare board removed from its approved configuration.

For compliance-controlled procurement:

• CE: Verify the applicable Mark VIe system declaration and product revision.
• UL/cUL: Confirm the exact GE equipment configuration and jurisdictional approval.
• ATEX: The documented PPRFH1B hazardous-location configuration must be paired with the specified accessory arrangement.
• IECEx: An applicable certificate exists for the documented Mark VIe configuration; verify the certificate revision and exact installed combination.
• Marine / DNV-type approvals: Do not assume approval for this standalone I/O pack unless project documentation explicitly provides it.
• Country of Origin: Establish from actual manufacturing traceability.
• HS classification: Confirm the final tariff heading with the importing-country customs broker rather than relying on a generic electronics classification.

Verify specific lot certifications with OEM.

For hazardous-area applications, preserve the I/O-pack identity, accessory-board identity, certification documentation, and installation record together. Mixing a certified PPRF pack with an unverified accessory board can invalidate the intended equipment configuration.

Long-Term Storage & Asset Preservation Guide

Store the IS220PPRFH1B inside an ESD shielding bag with the complete part-number label exposed for inventory inspection. The PROFIBUS connector and associated interfaces should be protected from dust, moisture, and mechanical impact.

Use a clean indoor storage location with no condensation. A practical spare-parts target is below approximately 60% RH, with stable temperature and no exposure to corrosive vapors.

Before issue, inspect the conformal coating, enclosure, connector, mounting surfaces, and identification markings. Do not perform unauthorized board-level cleaning or component replacement on a communication gateway that may be required for a safety- or turbine-critical network.

Record the complete revision and serial/traceability information. Also record the associated SPIDG1A board identity where the spare is maintained as a hazardous-location assembly.

Physical Installation Prerequisites

The should be installed within the specified Mark VIe I/O architecture, with the compatible terminal/identification arrangement verified before installation. For the documented hazardous-location configuration, the associated board is IS200SPIDG1A.

Confirm the DC supply before connection. The module requires a tightly controlled 27.4–28.6 VDC supply range; do not substitute an arbitrary 24 VDC field source without validating the complete Mark VIe power arrangement.

The PROFIBUS side requires proper RS-485 bus topology, termination, shielding, grounding, addressing, and cable design. Verify the installed slave configuration and GSD/device parameters before returning the network to service. A PPRF replacement can be electrically healthy while the PROFIBUS network remains unavailable because of configuration mismatch.

Allow the enclosure and connectors to seat fully, and follow the Mark VIe cabinet’s grounding and service-clearance requirements. Do not remove or install the pack under power unless the applicable GE documentation and site procedure explicitly authorize live replacement.

Buyer’s FAQ — Logistics & Compliance

Q: What HS tariff code should be used for ?
A: This is a specialized industrial communication I/O pack, so classification can vary by jurisdiction and customs interpretation. A supplier-provided code should be treated as a candidate only; the importing entity or customs broker should confirm the final tariff classification.

Q: How should Country of Origin be documented?
A: Use manufacturing traceability for the actual unit or lot. Shipping origin, warehouse location, and export port do not establish COO.

Q: Does the arrive with the latest firmware pre-loaded?
A: Do not assume it. PPRF firmware contains the module’s predefined I/O behavior, while the actual PROFIBUS process-data exchange depends on the application’s configured slave network. Verify firmware revision, PROFIBUS device configuration, and approved Mark VIe software compatibility before commissioning.

Q: Is the hot-swappable, and what must be checked for an authentic replacement?
A: Do not assume hot replacement. Follow the approved Mark VIe maintenance procedure. For incoming inspection, verify the full identifier, hardware revision, conformal-coating condition, IS200SPIDG1A compatibility where applicable, RS-485/PROFIBUS connector condition, serial/traceability markings, and functional-test results.
