GE IS230SNIDH1A MRP689579 | Mark VIe ISO Digital Module

Description

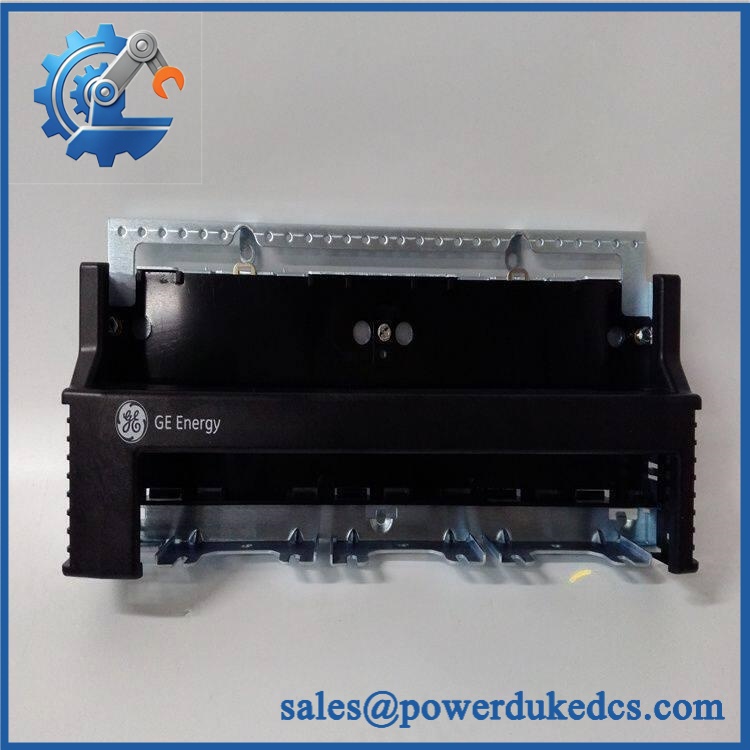

• Model: IS230SNIDH1A
• GE Material / Reference: MRP689579
• Brand: General Electric (GE)
• Series: Mark VIe
• Part Type: Isolated Digital DIN-Rail Module
• Core Function: Provides isolated digital signal interfacing within the GE Mark VIe distributed I/O architecture.
• Key Specs: DIN-rail form factor, isolated digital signal handling, status/fault indication, and Mark VIe integration. Public commercial records consistently identify IS230SNIDH1A as an ISO DIGITAL DIN RAIL MODULE, although detailed electrical specifications are inconsistently reported across secondary sources.
• Identity Warning: Do not confuse IS230SNIDH1A MRP689579 with similarly numbered Mark VIe terminal boards, I/O packs, or communication modules. The published evidence reviewed here supports the isolated digital DIN-rail module identification.

Product Introduction

A Mark VIe cabinet can continue communicating normally while one field digital channel starts producing intermittent state changes, nuisance alarms, or unreliable contact status. In that situation, the IS230SNIDH1A should be evaluated as part of the field-input signal chain rather than treated as a generic PLC input card.

The IS230SNIDH1A MRP689579 is publicly identified as a GE isolated digital DIN-rail module for the Mark VIe family. Its physical installation concept and isolation function make it relevant to legacy migration and New Surplus spare management, but the available public documentation is not strong enough to safely assign unsupported channel counts, voltage ranges, or isolation ratings.

Core Technical Specifications

This caution is intentional. Several secondary listings attach detailed specifications to this part number, but the same model is inconsistently described as a digital-input device, a communication module, and even a terminal board. Those contradictions make unsupported numerical specifications unsuitable for an engineering-controlled product page.

Application Scenarios & Pain Points

Digital status acquisition in turbine auxiliaries is a natural application area for an isolated digital module. Limit switches, relay contacts, permissive signals, and auxiliary equipment status points can require electrical separation from the control-side circuitry.

In a power-generation control cabinet, isolation becomes valuable when field wiring is exposed to switching transients or differing ground potentials. The module’s published identity specifically emphasizes isolated digital signal handling, although the exact isolation rating should be confirmed from the actual hardware documentation.

For legacy Mark VIe maintenance, DIN-rail construction can be important when the installed hardware uses distributed field-interface assemblies rather than conventional VME plug-in cards. That physical distinction matters during cabinet surveys and replacement planning.

Where intermittent inputs appear after years of service, inspect the complete circuit rather than replacing the module immediately. Check the field contact, wiring, terminal connections, supply reference, and module status indication before condemning the electronics.

At ambient temperatures above 50°C, cabinet airflow and enclosure heat loading should be reviewed before installing any replacement electronic assembly. A generic industrial temperature rating should never be substituted for the exact GE environmental specification.

Common Error Codes & Diagnostic Symptoms

Symptom/Code: Status LED does not show the expected operating state
→ Diagnosis: Possible loss of supply, internal module fault, wiring issue, or incorrect system configuration. The available public material identifies status/fault LED indication, but does not establish a universal numeric GE fault-code table for this exact model.
→ Action: Verify supply and field wiring first; replace the module only after the approved diagnostic procedure isolates the hardware.

Symptom/Code: Fault LED active or flashing
→ Diagnosis: The module or its connected signal path may have detected an abnormal condition. Secondary listings describe fault indication, but do not provide a sufficiently authoritative numeric code mapping for MRP689579.
→ Action: Read the Mark VIe diagnostic environment, inspect the connected circuit, and compare the module against a known-good unit.

Symptom/Code: Intermittent digital state / contact chatter
→ Diagnosis: Possible field-contact bounce, wiring noise, unstable reference voltage, terminal connection degradation, or input-interface failure.
→ Action: Trend the channel and isolate the field circuit before replacing the module.

Cross-Reference & Lifecycle Migration

Part Identity

The strongest available public identification is:

GE — MRP689579 — ISO DIGITAL DIN RAIL MODULE.

Compatibility

Do not treat the as interchangeable with another Mark VIe digital module solely because the external mounting arrangement appears similar.

Several online records incorrectly associate this part number with unrelated functions, including network-interface and analog-input descriptions. That conflict is a significant purchasing warning.

Older / Newer Revision

A reliable OEM cross-reference showing a specific predecessor or successor for MRP689579 was not established in the reviewed documentation. Therefore:

Replacement status: Not established from authoritative public lifecycle documentation.

Do not advertise it as a direct drop-in replacement for another IS230-series module without a GE hardware compatibility reference.

Firmware Requirement

No reliable public evidence establishes a universal firmware-flashing requirement for this exact module. Firmware/configuration should be checked against the installed Mark VIe software baseline before commissioning.

Lifecycle Stock Strategy

For an operating Mark VIe asset, classify this part as a controlled legacy spare until its current OEM lifecycle status is verified. A site depending on this module should retain at least one tested spare when replacement lead time is uncertain; record the complete MRP number and hardware marking to prevent substitution errors.

Field Engineer’s Tech Notes

Warning 1 — Do not mistake mechanical compatibility for electrical compatibility.
DIN-rail hardware can look interchangeable across a cabinet while the signal architecture is completely different. Match the full part number, MRP reference, terminal arrangement, and electrical function before inserting the replacement.

Warning 2 — Be skeptical of undocumented electrical ratings.
Some secondary pages assign this model a 24/125 VDC range, 1500 Vrms channel isolation, 2500 Vrms system isolation, TMR operation, and 200,000-hour MTBF. Those values are not sufficiently corroborated by authoritative documentation reviewed here. Treat them as unverified until the actual GE manual, certificate, or drawing confirms them.

During replacement, use ESD controls and inspect the DIN-rail mounting hardware carefully. A loose mechanical connection can become a field wiring problem later.

Strict QA & Testing SOP

Step 1 — Inbound identity check
Verify against the purchase order. Photograph the nameplate, serial information, revision marking, and package labels.

Step 2 — Physical inspection
Examine the DIN-rail housing, terminal interfaces, mounting clips, status LEDs, connectors, PCB-access areas, and enclosure for cracks, contamination, corrosion, or evidence of previous installation.

Step 3 — Documentation verification
Obtain the manufacturer’s technical documentation applicable to the exact revision. Confirm channel configuration, operating voltage, isolation rating, environmental limits, and terminal assignment before functional testing.

Step 4 — Controlled power test
Apply the approved test-rig supply and record startup behavior, indicator state, and current draw. Do not use an assumed voltage range simply because a secondary seller lists it.

Step 5 — Digital signal test
Inject representative digital states using the approved test fixture. Verify state recognition, return-to-normal behavior, and channel stability.

Step 6 — Isolation verification
Where the test facility and applicable procedure permit it, perform the prescribed insulation/isolation test using the manufacturer’s specified method and voltage. Do not invent a hipot value for this model.

Step 7 — Diagnostic verification
Confirm that the Mark VIe diagnostic environment recognizes the module correctly and that no hardware-identification or communication alarms are generated.

Step 8 — Final QA and packaging
Record test results, serial number, revision, inspection date, and technician sign-off. Place the module in ESD-safe packaging with adequate mechanical protection. Test videos are available with the QC record for procurement review when required.
