GE IS420UCSBH1A | Mark VIe UCSB Controller Module

Description

• Brand: GE General Electric
• Full Model Number: IS420UCSBH1A
• Lifecycle Status: Legacy / Lifecycle-managed Mark VIe hardware
• Core Function: UCSB standalone controller for GE Mark VIe control systems
• Top 3 Technical Specs: 600 MHz Intel EP80579 processor; 256 MB DDR2 SDRAM; 2 GB NAND Flash
• Stock & Condition: New Surplus / Tested Refurbished; Physical stock confirmation required; Emergency dispatch subject to order cutoff

The supplied number appears to contain a missing initial “I”. Current technical listings identify the GE part as IS420UCSBH1A, not S420UCSBH1A.

Module 3: Obsolescence & Supply Chain Deep Dive

A failed UCSB controller can stop a Mark VIe control application from executing normally, turning a relatively small electronics failure into a turbine-control outage. The GE IS420UCSBH1A is identified as a UCSB controller for the Mark VIe platform and is used as a standalone computer to execute application-specific control logic. Published technical references specify a 600 MHz Intel EP80579 processor, 256 MB DDR2 memory, and 2 GB NAND flash. For plants maintaining installed Mark VIe equipment, locating the correct controller can therefore be more urgent than pursuing a larger system replacement.

The TCO case is straightforward when the installed architecture remains serviceable. A matching controller can avoid cabinet redesign, software redevelopment, extensive FAT/SAT activity, new I/O architecture work, and a longer outage window. That can make a qualified replacement economically preferable to initiating a complete controls migration. The controller also supports IEEE 1588 time synchronization across the Mark VIe I/O network, with published references describing synchronization to approximately 100 microseconds.

Module 4: Compatibility & Replacement Matrix

Field Traps — Watch Out

• Part-number transcription error: Confirm that the required unit is IS420UCSBH1A. The omitted initial “I” in S420UCSBH1A can cause an incorrect procurement match.
• Firmware and application configuration: The UCSB controller is application-specific. Published references state that the controller is loaded with application software, so a physically matching controller should not be treated as a fully configured field replacement without checking the existing software and system configuration.

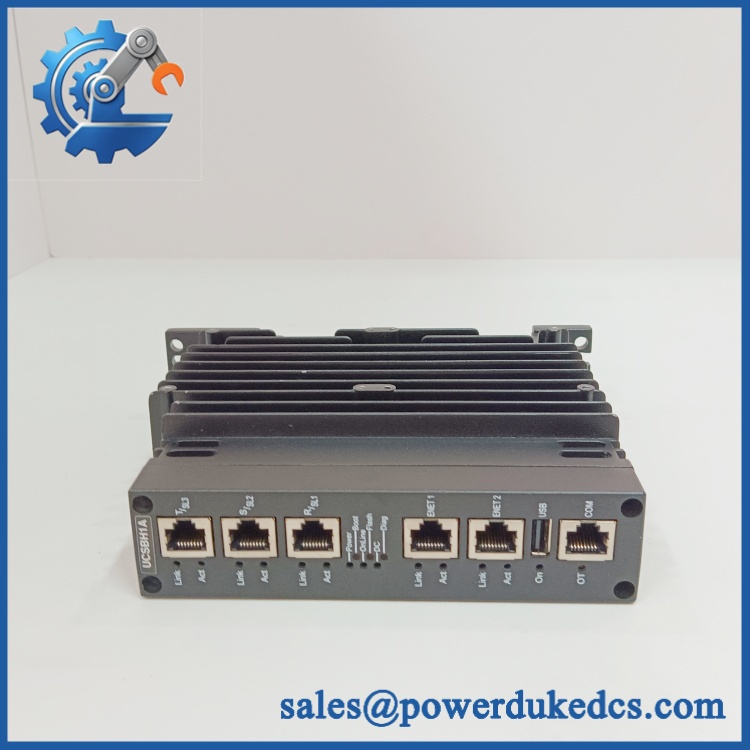

GE IS420UCSBH1A

Module 5: Quality Assurance & Testing SOP

Every controller should pass controlled inspection and functional testing before release.

• Incoming identification: Verify GE manufacturer markings, IS420UCSBH1A part number, revision, serial information, and available date-code details.
• OEM anti-counterfeit visual inspection: Examine PCB markings, labels, connector construction, component placement, solder quality, enclosure condition, and evidence of unauthorized rework.
• Mechanical inspection: Check mounting points, connectors, terminals, housing, and PCB edges for impact or corrosion damage.
• Power-on self-test (POST): Apply controlled DC input and verify normal startup behavior and expected status/error indications.
• Processor and memory check: Confirm controller startup and diagnostic recognition of the installed processing and memory resources.
• Network verification: Test applicable Ethernet and IONet interfaces using the appropriate Mark VIe test arrangement.
• IEEE 1588 synchronization check: Verify timing synchronization behavior where the available test rack supports this function.
• Application-level test: Load or verify the authorized test configuration and confirm controller execution without diagnostic faults.
• I/O communication test: Verify expected data exchange between the controller and connected Mark VIe I/O architecture.
• Extended operation test: Run the controller under representative operating conditions and monitor temperature, communications, and diagnostic status.
• Final QC release: Record complete part number, revision, serial number, test results, inspection date, and technician approval.

Module 6: Procurement & Lifecycle FAQ

1. Is the GE IS420UCSBH1A genuinely in stock, and what is the cutoff for emergency shipping?

Physical inventory must be confirmed for the exact revision before PO release. Current independent supplier listings show this part advertised as available, but listing status is not a substitute for warehouse verification. Emergency dispatch depends on order confirmation, payment clearance, warehouse cutoff, and carrier collection time.

2. How do you verify the condition and authenticity of an obsolete or surplus controller?

Verification should start with the PCB and manufacturer identification, followed by connector, component, housing, and revision inspection. Electrical startup testing and functional communications testing should then be documented. For critical Mark VIe spares, retain photographs and serial/revision records with the inspection report.

3. Are there firmware or configuration issues my engineers should check before issuing the PO?

Yes. The UCSB is a standalone computer that executes application-specific control logic, so the engineering team should verify controller revision, installed application software, network architecture, and the site’s Mark VIe configuration before installation.

4. Can the replace a failed UCSB without modifying the control cabinet?

A same-model replacement is generally intended to avoid cabinet redesign, but the exact revision, mounting arrangement, firmware/application configuration, and network implementation must match the installed system. Treat it as a conditional drop-in replacement, not a universal substitute for every Mark VIe UCSB installation.

5. What warranty and return terms should procurement require?

Specify the exact revision, condition, inspection status, test documentation, warranty period, and return procedure in the PO. Warranty coverage should clearly address DOA and verified functional failure while excluding damage caused by incorrect wiring, unsuitable power, installation error, or site conditions.
