GE SR489-P5-H1-A20 | Generator Management Protection Relay

Description

Module 1: High-Converting SEO Title Matrix

1.
2. GE SR489-P5-H1-A20 90-300VDC 4-20mA Generator Relay
3. GE SR489-P5-H1-A20 New Surplus Multilin 489 Relay
4.
5. GE SR489-P5-H1-A20 OEM Multilin Relay With Warranty

Module 2: The 10-Second Buyer’s Snapshot

• Brand: GE Multilin
• Full Model Number: SR489-P5-H1-A20
• System/Series Family: Multilin 489 Generator Management Relay
• One-Sentence Core Function: Microprocessor-based generator protection, monitoring, metering, and control relay for synchronous and induction generators
• Top 3 Hardcore Specs: 5 A phase CT inputs; 4–20 mA analog outputs; 90–300 VDC or 70–265 VAC high-range control power
• Protection Platform: Generator differential, ground fault, loss of excitation, reverse power, overcurrent, overexcitation, and related protection functions
• Stock Status: New Surplus / Fully Tested Refurbished subject to actual inventory inspection
• Ordering-Code Note: GE documentation uses HI for the high-range power-supply option; the supplied H1 designation should be verified against the physical nameplate before purchase.

Module 3: Commercial-Technical Deep Dive

Generator protection relays are configuration-sensitive devices; substituting the wrong CT or control-power option can invalidate an otherwise correct replacement. The GE Multilin SR489-P5-H1-A20 belongs to the 489 Generator Management Relay family. The P5 option identifies 5 A phase CT secondary inputs, while A20 identifies 4–20 mA analog outputs. GE’s 489 ordering documentation identifies the high-range control-power option as HI, accepting 88–300 VDC or 70–265 VAC at 48–62 Hz in one manual revision; later documentation lists 90–300 VDC or 70–265 VAC.

The relay combines generator protection, metering, monitoring, and control in one drawout assembly. The 489 platform supports voltage and current phasor measurements, real and reactive power, frequency, power factor, RTD inputs, programmable digital inputs, and four scalable 4–20 mA transducer outputs. GE documentation also identifies features such as breaker-failure protection, VT-fuse-failure detection, trip-coil supervision, simulation, and flash memory for firmware upgrades. For procurement, the absence of an E or T suffix also matters: those suffixes identify enhanced-display and Ethernet variants, respectively. A relay identified only as P5-H1-A20 should not be assumed to include those enhancements.

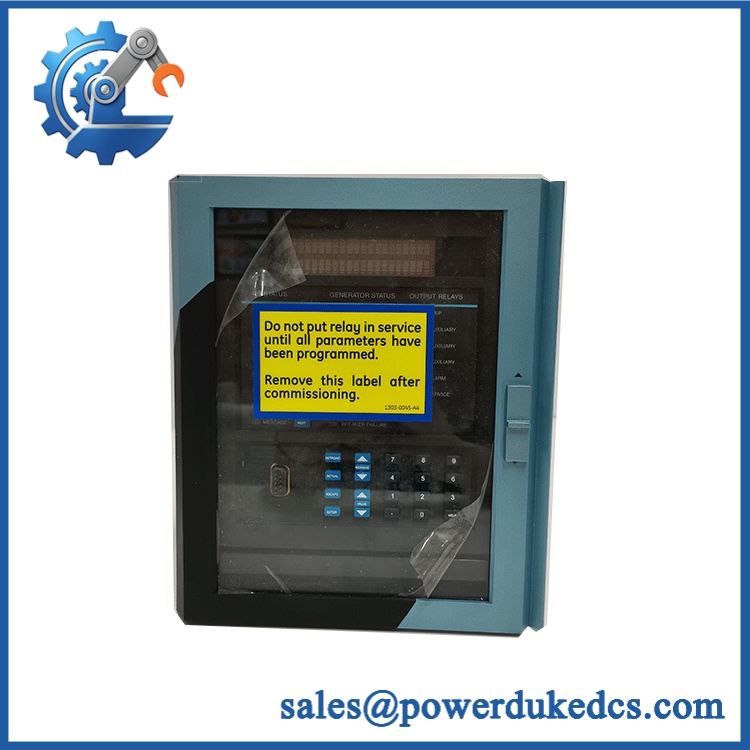

GE SR489-P5-H1-A20

Module 4: Compatibility & Installation Traps

Migration/Compatibility

• Replacement status: GE Multilin 489 Generator Management Relay
• Logic rewrite: Not normally required for a like-for-like relay replacement when the existing settings file and protection scheme are preserved.
• Firmware update: Configuration dependent. The 489 supports flash-memory firmware upgrades, but firmware should be matched to the existing application and settings before downloading.
• CT configuration: P5 = 5 A phase CT secondaries.
• Analog outputs: A20 = 4–20 mA analog outputs.
• Control power: The GE ordering code uses HI for the high-range control-power option; verify whether the field marking reads H1 or HI before procurement.
• Ethernet: A T suffix identifies the enhanced Ethernet version. The base SR489-P5-H1-A20 should not be assumed to contain that Ethernet option.

⚠️ Field Traps (Watch Out)

• H1 versus HI identification: This is the first purchasing checkpoint. GE’s documented ordering code uses HI, while your supplied model uses H1. Verify the actual faceplate/nameplate and settings record before issuing a replacement PO.
• CT secondary mismatch: Never substitute a P1 version for a P5 relay in a circuit designed around 5 A CT secondaries. The 1 A and 5 A variants are different input configurations.
• CT circuit safety: Never open an energized CT secondary. Use the approved CT shorting/isolation procedure before withdrawing the relay.
• Display/communications assumptions: Do not infer an enhanced display or Ethernet port from the 489 family name. E and T are specific ordering options.
• Settings mismatch: Correct hardware with incorrect CT ratios, VT ratios, pickup values, trip logic, or generator ratings can produce incorrect protection behavior.

Module 5: Quality Assurance SOP

Before shipment, the GE SR489-P5-H1-A20 should undergo a protection-relay-specific QA sequence:

1. OEM anti-counterfeit visual inspection — verify GE Multilin markings, complete catalog code, faceplate, terminal arrangement, relay housing, and product identification.
2. Part-number reconciliation — specifically verify P5, H1/HI, and A20 against the customer’s requested configuration.
3. Mechanical inspection — inspect the drawout mechanism, terminal connectors, front display/keypad, locking hardware, and enclosure for damage or contamination.
4. Power-input verification — confirm the applicable high-range control-power specification before energization.
5. Power-on self-test (POST) — verify startup diagnostics, display operation, status indications, and internal self-test results.
6. CT/VT simulation — apply controlled secondary-injection signals and verify current and voltage measurement channels.
7. Protection-function verification — test representative generator protection elements against the documented settings and test values.
8. Analog-output verification — command representative 4–20 mA outputs and measure the resulting current with calibrated instrumentation.
9. Digital I/O verification — test representative input and relay-output functions in an isolated laboratory setup.
10. RTD verification — where the configured installation uses RTD inputs, simulate representative resistance values and confirm correct temperature indication.
11. Communication verification — verify RS-485/service communications where supported; do not claim Ethernet functionality unless the actual unit carries the corresponding T option.
12. Final QC record — document exact catalog code, hardware/firmware revision, settings file used for testing, injected values, measured outputs, photographs, and packaging condition.

For a generator protection relay, a successful boot is only the beginning. Secondary injection, protection timing, analog-output accuracy, I/O operation, and settings integrity are the useful acceptance checks.

Module 6: CRO-Driven Buyer FAQ

1. Is GE SR489-P5-H1-A20 obsolete, and how do I verify an authentic replacement?

The 489 Generator Management Relay is a legacy GE Multilin protection platform, and current industrial sourcing references continue to list SR489-P5-H1-A20. For authenticity and configuration control, verify the physical faceplate, complete ordering code, serial information, CT rating, control-power option, and analog-output option. Most importantly, confirm whether the actual marking is H1 or the GE-documented HI designation.

2. Can I hot-swap the SR489-P5-H1-A20?

Do not treat it as hot-swappable by default. GE 489 documentation describes a drawout construction, but the installation instructions require control power to be turned off before withdrawing or reinserting the relay. Isolate the control supply and properly secure all CT circuits before removal.

3. Will replacing the relay require reprogramming?

A like-for-like replacement normally does not require rewriting the generator protection scheme. The critical step is restoring and validating the existing relay settings, including CT/VT ratios, generator ratings, protection pickups, timers, output assignments, and communication parameters. Flash memory supports firmware upgrades, but firmware changes should be controlled and documented.

4. What does P5-H1-A20 mean?

P5 identifies 5 A phase CT secondary inputs. A20 identifies 4–20 mA analog outputs. GE’s documented code uses HI for the high-range control-power option, while the supplied model uses H1, so that portion should be checked against the actual relay label.

5. Does SR489-P5-H1-A20 have Ethernet?

Do not assume it does. GE’s 489 ordering table identifies the T suffix as the enhanced Ethernet 10Base-T option. The base P5-H1-A20 configuration does not establish Ethernet functionality by itself.

Warranty and Technical Support

Warranty duration should be stated according to the actual inventory condition, such as new surplus or tested refurbished. Technical support should cover exact model and suffix verification, CT/control-power compatibility, settings review, secondary-injection testing, analog-output verification, and documented pre-shipment results. Generator protection coordination, CT wiring, trip-circuit authorization, and live commissioning remain the responsibility of qualified protection personnel.
