GE UR8RH 12A0-0305-A2 | 8CT Sensitive Ground Input Module

• Brand: GE Multilin
• Full Model Number: UR8RH
• Assembly / Order Reference: 12A0-0305-A2
• System/Series Family: Universal Relay (UR) Series
• Core Function: Sensitive-ground current transformer input module for GE Multilin UR-series protection relays
• Top 3 Hardcore Specs: 8 CT inputs; Sensitive Ground 8R configuration; 12A0-0305-A2 assembly reference
• Module Type: CT/VT input module
• Input Function: Sensitive-ground current measurement
• Application: Protective relay current measurement
• Stock Status: New Surplus / Factory-Sealed or Fully Tested Refurbished subject to actual inventory condition

Current technical listings identify UR8RH as the GE Multilin Sensitive Ground 8R module with 8 CT inputs and the 12A0-0305-A2 reference. Other technical records describe the UR8RH as a CT/VT module used with GE Multilin UR-series relay systems.

Module 3: Technical Product Introduction

When a protection relay reports abnormal current measurements, the CT input module should be checked before assuming that the relay’s main processor has failed. The GE Multilin UR8RH, identified with assembly reference 12A0-0305-A2, is associated with the Sensitive Ground 8R configuration and provides the current-transformer input interface used within the GE Multilin Universal Relay architecture. Available parts records specifically identify the unit as an 8CT Sensitive Ground module.

The important specification here is the exact input configuration. UR8RH should not be confused with other UR-series CT/VT modules such as UR8FH or UR8CH, because those modules serve different measurement configurations. A replacement should therefore match the original relay’s hardware configuration and CT wiring. Do not infer CT ratio, burden, insulation rating, or measurement accuracy from the UR8RH designation alone; those values depend on the applicable relay documentation and connected CT circuit.

Module 4: Application Scenarios & Field Realities

• In a generator or feeder protection panel, the UR8RH can provide the CT input path required by the Sensitive Ground protection arrangement. If the relay suddenly reports implausible residual-current values, inspect CT wiring, terminal connections, and the UR8RH input path before changing protection settings.
• For ground-fault protection troubleshooting, compare the relay’s measured current against an independently verified secondary-current measurement. A mismatch can originate from incorrect CT wiring or polarity, an open/poor CT circuit, or the input module itself.
• During relay replacement or refurbishment, preserve the original UR8RH identification and CT wiring records. An eight-input module is not automatically interchangeable with every other eight-channel UR-series CT module.
• In preventive maintenance, inspect the CT terminal wiring for loose connections, oxidation, and evidence of overheating. CT circuits require particular care; an incorrectly handled energized CT secondary can create hazardous voltage.

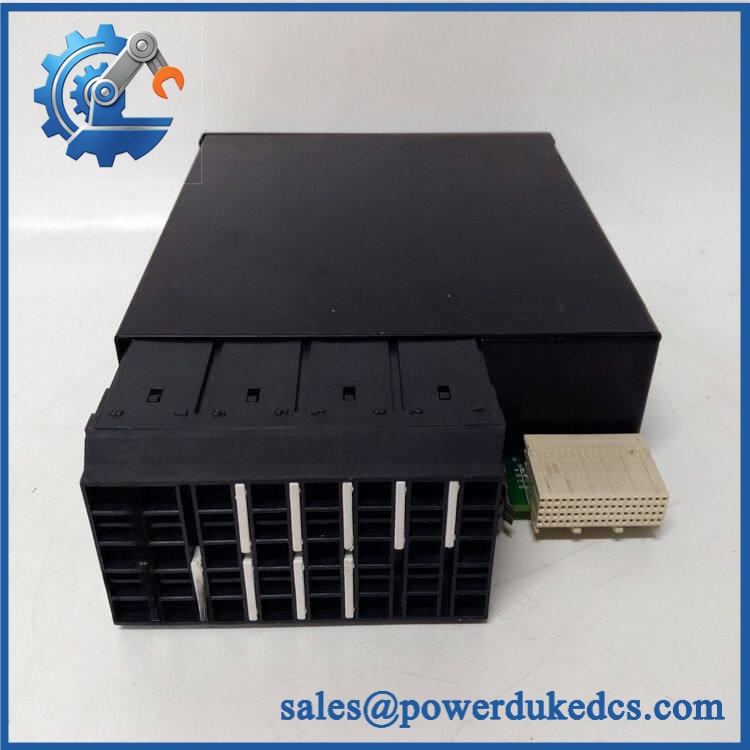

GE UR8RH 12A0-0305-A2

Module 5: Migration, Compatibility & Installation Traps

Replacement Matrix

Field Traps — Watch Out

1. CT input count is not enough for compatibility.
Although the UR8RH is identified as an 8CT Sensitive Ground module, the function and wiring of each input must match the existing UR relay configuration. Do not substitute another eight-channel CT module solely because the connector arrangement appears similar.

2. Never open-circuit an energized CT secondary.
Before disconnecting CT wiring, follow the site’s protection-relay maintenance procedure and ensure the CT circuit is safely isolated or shorted as required by the installation. This is a critical field-safety issue.

Installation note: Record every CT conductor, polarity marking, terminal position, and relay configuration before removing the UR8RH. After installation, verify current polarity and phase/channel assignment using controlled secondary injection before returning the protection relay to service.

GE UR8RH 12A0-0305-A2

Module 6: Quality Assurance SOP

For GE Multilin UR8RH 12A0-0305-A2, QA should concentrate on exact module identification, CT-channel integrity, and relay-level measurement verification.

• Part-number verification: Confirm UR8RH and 12A0-0305-A2 from the physical module label and purchasing record.
• OEM anti-counterfeit visual inspection: Check GE Multilin markings, catalog identification, assembly number, PCB construction, connectors, labels, and manufacturing information.
• Configuration verification: Confirm the module is the Sensitive Ground 8R / 8CT configuration.
• Mechanical inspection: Examine the housing, PCB, connectors, terminal interfaces, mounting hardware, and module edges.
• Component inspection: Look for corrosion, overheated components, damaged connectors, cracked components, contamination, or evidence of unauthorized repair.
• Power-on self-test (POST): Install the module in an approved compatible UR-series relay test environment and verify normal initialization.
• Input-channel verification: Test each applicable CT input independently using a controlled secondary-injection source.
• Current measurement verification: Apply known test currents and compare relay measurements against calibrated test-instrument values.
• Polarity verification: Confirm each CT channel responds with the expected polarity and phase relationship.
• Sensitive-ground function verification: Exercise the applicable ground-current measurement path using controlled test conditions.
• Diagnostic verification: Check the relay for input, configuration, or hardware diagnostic indications during testing.
• Communication handshake verification: Verify the module operates correctly with the host UR-series relay and that measured values are available to the relay application.
• Protection-function verification: Confirm relevant protection elements respond correctly to simulated current conditions before release.
• Final inspection: Recheck connectors, labels, terminal interfaces, and packaging after testing.
• Traceability: Record UR8RH, 12A0-0305-A2, serial/manufacturing information where available, test equipment, injected values, measured values, test results, inspection date, and condition classification.

Procurement note: The strongest identification is GE Multilin UR8RH — 12A0-0305-A2 — Sensitive Ground 8R — 8CT. Do not replace it with a generic “UR CT module” without confirming the exact relay configuration and CT input architecture.
