Description
- Brand: GE / General Electric
- Full Model Number: WES5120 2340-21005
- System/Series Family: GE WES5100 Series
- Core Function: Industrial control-system power supply module
- Top 3 Hardcore Specs: 5 VDC output; 16 A output rating; WES5100-series system power module
- Module Type: Power Supply Module
- Output Capacity: 5 VDC / 16 A
- Application: GE WES5100-series control equipment
- Installation: Modular control-system rack
- Stock Status: New Surplus / Fully Tested Refurbished — verify exact input configuration and hardware revision before shipment
Available industrial inventory references identify WES5120 2340-21005 as a GE WES5100-series power module, with 5 VDC and 16 A listed as the primary output specification.
Module 3: Commercial-Technical Deep Dive
A control-system CPU can be perfectly healthy and still remain offline when its rack power module fails. The GE WES5120 2340-21005 is identified as a power supply module for the WES5100 series, with published inventory data specifying a 5 VDC, 16 A output. Its role is fundamental: convert the available system input power into the regulated DC rail required by the WES control electronics and associated rack hardware. This is a power-distribution component, not a programmable controller or communications processor.
The practical ROI is restoration of the existing WES5100 power architecture without replacing healthy processor or I/O hardware. A 5 VDC rail at up to 16 A represents as much as 80 W of nominal DC output capacity, which provides a useful engineering reference when checking rack loading. That figure should not be treated as the actual continuous system consumption; cabinet load, conversion efficiency, startup current, and thermal conditions still need to be checked. Some third-party listings report dual input compatibility such as 24 VDC/120 VAC, but those claims are not consistently supported across available references. —Use the nameplate and approved documentation to verify the exact input voltage before energizing.

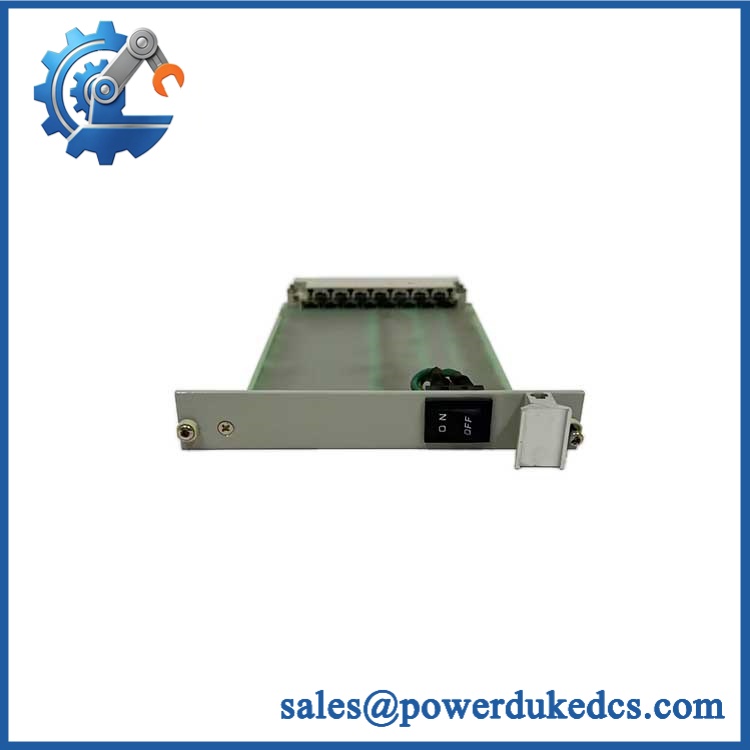

GE WES5120 2340-21005
Module 4: Compatibility & Installation Traps
Migration/Compatibility
For an installed system specified for WES5120 2340-21005, the correct approach is a like-for-like power-module replacement, subject to verification of the input configuration, output rating, rack position, and hardware revision.
No firmware flash or PLC logic rewrite is associated with replacing the power module itself. The critical engineering task is confirming that the replacement provides the same regulated supply required by the existing chassis and that total rack loading remains within the module’s capacity.
⚠️ Field Traps (Watch Out)
- Input-voltage assumption: Some third-party listings describe the module as supporting 24 VDC/120 VAC, but that information is not sufficiently consistent to treat as a universal specification. Verify the actual nameplate and system drawing before applying power.
- 5 VDC rail loading: A 16 A rating does not mean the installed rack continuously consumes 16 A. Calculate actual module, I/O, processor, and peripheral demand, including startup conditions.
- Rack-power polarity and distribution: Verify input polarity, protective grounding, and output distribution before replacement. A correctly identified module can still cause secondary failures when connected to an incorrectly wired rack.
- Thermal clearance: Power conversion equipment generates heat under load. Maintain the manufacturer’s required ventilation and cabinet clearance; do not pack adjacent modules tightly around the power supply.
Module 5: Quality Assurance SOP
- OEM anti-counterfeit visual inspection — verify GE markings, WES5120 designation, complete 2340-21005 identifier, terminal arrangement, cooling hardware, labels, and evidence of unauthorized modification.
- Part-number reconciliation — photograph the full model number, serial information, revision marking, and all visible secondary identifiers.
- Mechanical inspection — inspect the housing, terminal blocks, mounting hardware, heat-dissipation surfaces, connectors, and PCB condition for corrosion, cracks, contamination, or thermal damage.
- Power-on self-test (POST) — apply the correct verified input supply through a protected laboratory fixture and check startup behavior and status indications.
- Output-voltage verification — measure the regulated DC output and confirm the expected 5 VDC rail under no-load and controlled-load conditions.
- Load-current test — apply a calibrated electronic load and verify stable operation up to the approved test current, without exceeding the manufacturer’s specified limits.
- Ripple and stability check — measure output ripple and monitor regulation under changing load conditions using appropriate test instrumentation.
- Protection verification — where supported by the test fixture, verify short-circuit, overcurrent, and recovery behavior according to the approved service procedure.
- Thermal observation — operate the unit under representative load and monitor temperature rise, fan behavior where applicable, and output stability.
- Rack-interface verification — connect the power module to a representative test chassis and confirm stable operation of the associated control hardware.
- Final QC release — retain identification photographs, input/output measurements, load-test results, thermal observations, and packaging inspection records.
For a power module, a no-load 5 VDC measurement is only a preliminary check. The meaningful acceptance test includes regulated output under controlled load, protection behavior, and stable operation in a representative rack.
Module 6: CRO-Driven Buyer FAQ
1. What is GE WES5120 2340-21005?
It is a GE -series power supply module identified in available industrial references as , part number 2340-21005, with a published 5 VDC / 16 A output specification.
2. What is the output capacity of 2340-21005?
Available references specify 5 VDC at 16 A, corresponding to approximately 80 W of nominal DC output capacity. Actual allowable rack loading must still be checked against the system documentation and thermal conditions.
3. Is 2340-21005 interchangeable with 2340-21003?
Do not assume that. Different part numbers can represent different power or interface configurations. Match the complete part number, input requirements, output rating, rack position, and hardware revision before substitution.
4. Can the be hot-swapped?
Do not assume hot-swap capability. This is a rack power-supply module connected directly to system power distribution. Follow the maintenance procedure, isolate the incoming supply, and verify absence of hazardous voltage before removal.
5. Does replacing the require firmware or PLC programming?
No. This is a power supply module rather than a programmable CPU. After replacement, verify the regulated 5 VDC rail, rack loading, system startup, and downstream module operation.
6. What warranty and technical support should I expect?
The quotation should clearly state whether the unit is new surplus, unused, or tested refurbished and specify the warranty duration. Technical support should cover exact-part verification, input/output compatibility, load-test evidence, and rack integration checks. System redesign, cabinet power studies, and site commissioning should remain separate engineering activities.
