1. HIMA F3 AIO 8/4 01 | New Surplus SIL Certified Module

2. At-A-Glance Executive Brief

• Model: HIMA F3 AIO 8/4 01
• Brand: HIMA
• Series: HIMatrix
• Part Type: Safety Remote Analog I/O Module
• Core Function: Acquires safety-related analog field signals and transfers processed values to HIMax/HIMatrix safety controllers through SafeEthernet communication.
• Primary Use: Safety instrumented systems (SIS), process protection, burner management, turbine protection, and industrial emergency shutdown applications.
• Key Specifications:
  • 8 safety-related analog inputs
  • 4 analog outputs
  • SIL 3 certified safety applications
  • SafeEthernet communication
  • Suitable for Ex Zone 2 applications with approved installation conditions
• Typical Deployment: Chemical plants, power generation facilities, oil & gas installations, and process automation safety cabinets.

3. Product Introduction

The HIMA F3 AIO 8/4 01 is installed as a remote I/O node within a HIMatrix safety automation architecture. It extends the controller’s field interface by collecting analog measurement signals and transmitting them through SafeEthernet to the connected safety controller. The module itself does not execute user application programs; control logic remains inside the HIMatrix or HIMax controller (which is critical when maintaining a certified safety architecture).

In field deployments, this module is normally replaced as part of a planned safety system maintenance activity. Engineers should verify the SIL configuration, connected sensors, SafeEthernet settings, and engineering project version before installation. The wrong I/O configuration can create commissioning delays even when the replacement hardware is electrically healthy.

4. Core Technical Specifications

Parameter	Value
Manufacturer	HIMA
Model Number	F3 AIO 8/4 01
Product Family	HIMatrix
Module Type	Safety Remote Analog I/O
Analog Inputs	8 channels
Analog Outputs	4 channels
Analog Input Type	Safety-related voltage/current measurement
Analog Input Range	0–10 V; 0/4–20 mA with external shunt adapter
Analog Output Range	4–20 mA
Communication Interface	SafeEthernet
Controller Compatibility	HIMax / HIMatrix systems
Safety Certification	SIL 3 (IEC 61508 / IEC 61511 / IEC 62061)
Performance Level	PL e / Category 4
Mounting Method	DIN rail installation
Power Supply	24 VDC industrial supply
Operating Temperature	Approx. -20°C to +60°C
Protection Concept	Industrial safety automation enclosure
Weight	Approx. 0.5–1 kg

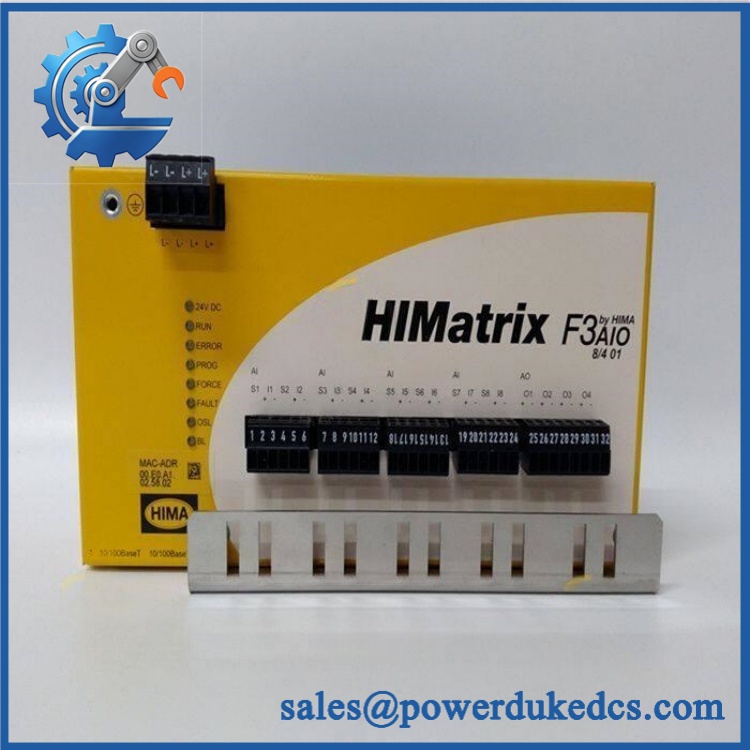

HIMA F3 AIO 8/4 01

5. Application Scenarios & Pain Points

A failed analog safety module can leave operators without reliable process measurements even when the main safety controller remains available.

• Chemical processing plants: Used for safety-related pressure, temperature, and flow measurements where incorrect analog data can affect shutdown decisions.
• Power generation systems: Applied in turbine and boiler safety applications requiring monitored analog signals under continuous operation conditions.
• Oil and gas facilities: Supports SIS architectures where sensors may be located hundreds of meters away and require shielded signal wiring.
• Burner management systems: Handles analog transmitter signals where stable measurement accuracy is required during startup and shutdown sequences.
• Offshore platforms: Suitable for distributed safety cabinets exposed to vibration, humidity, and ambient temperatures above 45°C.

6. Common Error Codes & Diagnostic Symptoms

Symptom/Code: SafeEthernet Communication Failure / Remote I/O Not Available
→ Diagnosis: Possible network configuration mismatch, damaged communication cable, or internal communication interface fault.
→ Action: Verify SafeEthernet parameters and replace the F3 AIO 8/4 01 module if hardware failure is confirmed.

Symptom/Code: Analog Input Value Invalid / Channel Diagnostic Alarm
→ Diagnosis: Sensor wiring issue, incorrect shunt adapter selection, input circuit fault, or module channel failure.
→ Action: Check field wiring and replace the module if the input channel hardware is defective.

Symptom/Code: Module Not Recognized During Startup
→ Diagnosis: Incorrect configuration file, hardware mismatch, or communication initialization failure.
→ Action: Verify project configuration and install a compatible replacement module.

7. Cross-Reference & Lifecycle Migration

• Compatible Family: HIMA HIMatrix remote I/O platform.
• Related Models:
  • F3 DIO series — digital input/output remote modules.
  • AI 8 01 — analog input-only module.
  • F3 AIO 8/4 014 — later documented variant with similar I/O function.
• Firmware / Configuration: Engineering configuration transfer may be required after replacement. Hardware installation alone does not restore the safety application.
• Lifecycle Status: Active / Legacy Hybrid
  • Still used in installed HIMatrix safety systems.
  • Maintain tested spare inventory for critical SIS applications.
• Migration Strategy: Existing installations may migrate toward newer HIMA Smart Safety Platform components, but replacement requires safety validation and engineering review.

8. Field Engineer’s Tech Notes (Anti-Pitfall Guide)

1. Do not connect analog signals before confirming the shunt adapter configuration.
   The module measures voltage directly and requires external adapters for certain current measurement applications. Incorrect selection can produce inaccurate readings.
2. Do not ignore cable shielding requirements.
   Analog safety inputs require proper shielded twisted-pair wiring. Poor grounding practices can introduce signal instability and unnecessary diagnostic alarms.

9. Strict QA & Testing SOP

Step 1 — Incoming Inspection

• Confirm HIMA F3 AIO 8/4 01 identification.
• Record serial number and hardware revision.
• Inspect enclosure, terminals, and communication ports.
• Photograph physical condition.

Step 2 — Electrical Testing

• Apply controlled 24 VDC supply.
• Verify startup indicators.
• Check current consumption.
• Confirm power stability.

Step 3 — Communication Testing

• Connect to a compatible HIMatrix test environment.
• Verify SafeEthernet communication.
• Confirm module recognition.

Step 4 — Analog Channel Testing

• Simulate analog input signals.
• Verify input accuracy.
• Test analog output current response.
• Confirm diagnostic behavior.

Step 5 — Packaging Control

• Place the module inside anti-static packaging.
• Protect terminal connectors.
• Add shock protection for international shipment.

Test videos are available for verified inspection records.

10. Buyer’s FAQ (Dynamic Q&A)

Q: Can the HIMA F3 AIO 8/4 01 be hot-swapped during SIS operation?

A: Do not assume hot replacement is permitted. Safety I/O modules are part of a certified safety architecture, and replacement procedures must follow the approved maintenance process.

Q: How do I verify this is a New Original HIMA F3 AIO 8/4 01?

A: Check the HIMA label, serial number, hardware revision, packaging condition, and functional test documentation. Safety system spare parts should have traceable inspection records.

Q: Does the module require configuration after replacement?

A: Yes. The module must match the HIMatrix project configuration, SafeEthernet settings, and safety application database before returning to service.

Q: What warranty details should be confirmed before purchase?

A: Confirm warranty period, functional testing scope, replacement terms, and whether inspection records are provided. For SIS components, documented testing is an important purchasing requirement.
