HIMA F35 | Industrial Safety PLC Replacement Unit

2. At-A-Glance Executive Brief

Model: HIMA F35
Brand: HIMA
Series/System: HIMA HIMatrix Safety PLC Platform
Part Type: Compact Safety Controller / Failsafe PLC Module
Core Function: Executes safety-related logic processing for industrial protection, shutdown, and monitoring applications.
Key Specs:
- SIL 3 capable safety controller architecture
- Compact PLC design for distributed safety applications
- Supports Ethernet-based engineering and communication functions
- Used in process, energy, and transportation safety systems
- Designed for IEC 61508 compliant safety applications

3. Product Introduction

A process shutdown signal arrives, but the safety controller does not execute the expected response. In this situation, the HIMA F35 becomes a primary inspection point because it performs safety logic execution and communication within HIMatrix safety automation systems. The controller is designed for applications requiring deterministic processing, fault monitoring, and certified safety functions.

Installed as a compact HIMatrix safety controller, the F35 combines processor functions, safety monitoring, and communication interfaces within a single automation device. In field deployments, engineers typically maintain these controllers as dedicated spares because replacing a failed safety CPU requires controlled verification of application logic, configuration data, and safety certification records (—especially in SIL-rated shutdown systems).

4. Core Technical Specifications

Parameter	Value
Manufacturer	HIMA
Model	F35
Product Family	HIMatrix Safety PLC
Module Type	Safety Controller
Safety Integrity Level	Up to SIL 3 according to IEC 61508
Application Category	Safety instrumented systems (SIS), ESD, burner and process protection
Processor Type	Safety-rated CPU architecture
Programming Environment	SILworX / ELOP II (system dependent)
Communication Interfaces	Ethernet and field communication interfaces (configuration dependent)
Safety Protocol Support	Configuration dependent
Redundancy	System architecture dependent
Diagnostic Functions	Internal hardware monitoring and fault diagnostics
Installation	DIN rail cabinet mounting
Power Supply	24 VDC industrial control supply
Operating Temperature	Typically -20°C to +60°C range (system dependent)
Mounting Orientation	Vertical cabinet installation recommended
Housing	Industrial protective enclosure

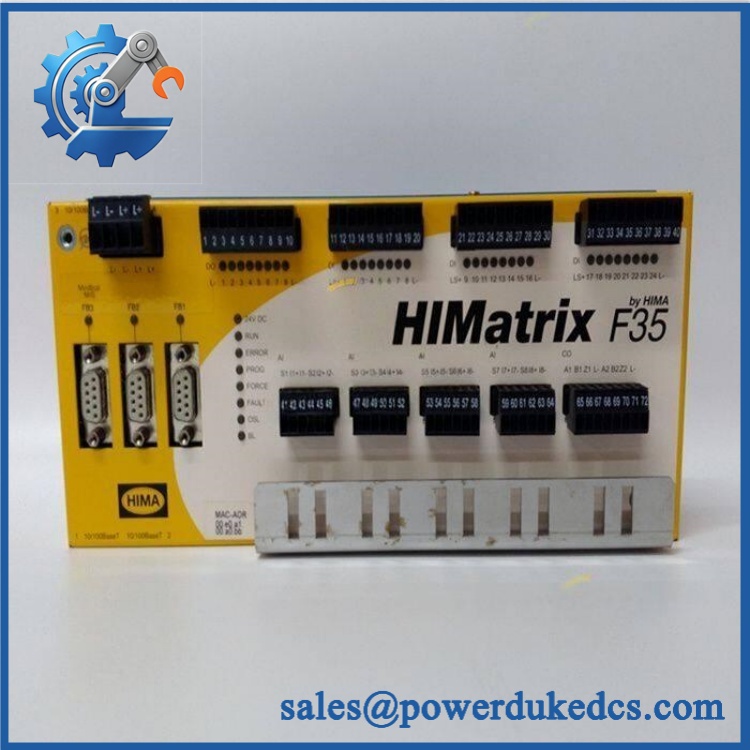

HIMA F35

5. Application Scenarios & Pain Points

A safety controller failure can stop an entire production line even when the basic automation system remains operational. The HIMA F35 is commonly maintained as a critical spare in safety-related installations.

Oil and gas facilities: Used in emergency shutdown systems where SIL-rated response logic is required for compressors, valves, and process equipment.
Chemical plants: Supports safety interlocks and protective shutdown sequences involving hazardous process conditions.
Power generation: Applied in turbine protection, boiler safety, and auxiliary protection systems.
Rail and transportation infrastructure: Used for safety monitoring applications requiring deterministic control behavior.
Offshore platforms: Installed in distributed safety cabinets exposed to vibration, humidity, and temperature changes.

For example, an offshore cabinet exposed to continuous vibration and 45°C+ ambient temperatures requires correct storage and installation practices to avoid premature electronic failures.

6. ? Common Error Codes & Diagnostic Symptoms

Symptom/Code: CPU Fault LED / System Fault indication active
→ Diagnosis: Possible processor diagnostic failure, configuration corruption, or internal hardware fault.
→ Action: Verify power supply and configuration backup, then replace F35 if hardware failure is confirmed.

Symptom/Code: Communication loss with engineering workstation or safety network
→ Diagnosis: Possible Ethernet interface failure, network configuration mismatch, or controller communication fault.
→ Action: Check network parameters and replace controller if interface failure is confirmed.

Symptom/Code: Safety program will not enter RUN state
→ Diagnosis: Possible application checksum mismatch, invalid configuration, or hardware identification mismatch.
→ Action: Reload verified safety application and replace module if hardware diagnostics fail.

7. Cross-Reference & Lifecycle Migration

Compatibility Notes:
- HIMA F35 belongs to the HIMatrix family and must be matched with the correct firmware version, safety application, and engineering environment.
- Replacement requires verification of:
  - Hardware revision
  - Safety program checksum
  - Communication configuration
  - I/O assignment
Firmware Requirements:
- Firmware compatibility must match the installed HIMatrix engineering environment.
- Safety application validation may be required after controller replacement.
Lifecycle Status:
- Status: Active / Long-Term Support (availability depends on region and revision).
- Safety controllers are normally stocked as critical spare assets because certification impact is higher than standard automation modules.
Migration Strategy:
- Maintain a verified backup of the safety application.
- Record controller firmware revision.
- Keep spare hardware tested before emergency deployment.

8. Field Engineer’s Tech Notes (Anti-Pitfall Guide)

Do not replace the controller without verifying the safety checksum.
A replacement CPU with different firmware or configuration data may prevent the safety application from entering operation.
Avoid removing the module without ESD protection.
Safety controllers contain sensitive processor and communication circuits. Static discharge can create failures that only appear during diagnostics.

9. Strict QA & Testing SOP

A proper HIMA F35 inspection process should include:

Step 1 — Incoming Inspection

Verify HIMA label and complete model identification.
Record serial number and hardware revision.
Inspect housing, terminals, and mounting clips.

Step 2 — Electrical Testing

Verify 24 VDC supply operation.
Measure abnormal current consumption.
Confirm startup diagnostics.

Step 3 — Functional Testing

Install in a compatible HIMatrix test environment.
Verify CPU initialization.
Check communication interfaces.
Confirm diagnostic status.

Step 4 — Safety Configuration Verification

Compare firmware version.
Verify application checksum.
Confirm safety program compatibility.

Step 5 — Packaging Control

Place controller inside ESD shielding packaging.
Use impact protection for international shipping.
Maintain traceability documentation.

Test videos are available for selected inspected units.

10. Buyer’s FAQ (Dynamic Q&A)

Q: Can the HIMA F35 be hot-swapped during operation?

A: Do not assume hot replacement capability. Safety controllers usually require controlled maintenance procedures because removing active safety hardware can affect the validated safety function.

Q: How do I confirm the F35 is a genuine HIMA unit?

A: Verify the HIMA nameplate, model designation, hardware revision, serial number, and supplier traceability records. For safety systems, documentation matching is as important as the physical part.

Q: Does the F35 include the latest firmware?

A: Firmware availability depends on the supplied hardware revision. Confirm firmware compatibility with the installed HIMatrix engineering software before commissioning.

Q: What warranty applies to this safety controller?

A: Warranty depends on whether the unit is new original, unused surplus, refurbished, or tested spare. Request inspection records and warranty terms before purchase.
