- Honeywell 05704-A-0144 | Genuine System 57 Controller
Unboxing & Physical Snapshot
- Brand & Model: Honeywell 05704-A-0144
- Product Category: System 57 Four Channel Control Card – Catalytic Input
- Application: Honeywell Analytics System 57 gas detection control platform. This card provides four-channel monitoring and control functions for connected catalytic gas detectors, including display, alarm handling, and sensor drive functions.
- Approximate Physical Dimensions:
- Height: approximately 3U (132 mm)
- Width: approximately 25 mm (1-inch rack module width)
- Depth: approximately 119 mm
- Estimated Shipping Weight: Approximately 0.4-0.5 lb (165 g module weight; packaged weight varies).
- What’s in the Box:
- Honeywell 05704-A-0144 Four Channel Control Card
- Front identification label
- Protective ESD packaging
- Anti-static shielding bag for controlled inventory storage
- Documentation when supplied with OEM packaging
Product Introduction
Gas detection hardware operates under strict reliability expectations because incorrect readings can affect personnel safety and plant protection actions. The Honeywell 05704-A-0144 is a System 57 four-channel catalytic input control card designed to monitor up to four connected gas detectors while providing display, alarm, and control functions.
Installed inside the System 57 rack assembly, this card provides the interface between field gas sensors and the monitoring system. It is not a standalone transmitter. The card edge connector, rack seating mechanism, and front-panel indicators require inspection before installation (especially for long-stored spares where contact oxidation may occur).
Core Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Honeywell Analytics |
| Model Number | 05704-A-0144 |
| Product Family | System 57 |
| Product Type | Four Channel Control Card |
| Input Type | Catalytic sensor input |
| Channel Capacity | 4 channels |
| Sensor Drive Method | Constant current |
| Supply Voltage | 18-32 VDC |
| Maximum Sensor Drive Current | 90-315 mA adjustable |
| Maximum Drive Voltage | 10 V |
| Full Scale Signal Range | 15 mV to 300 mV |
| Maximum Line Resistance | 40 ohms including sensor |
| Fault Detection | Open circuit, short circuit, single bead failure |
| Display | Backlit LCD with channel status indication |
| Alarm Functions | Alarm status, fault indication, remote reset/inhibit |
| Power Consumption | Approx. 12.8 W maximum; 8.5 W typical |
| Operating Temperature | -5°C to +55°C |
| Storage Temperature | -25°C to +55°C |
| Humidity Range | 20-90% RH non-condensing |
| Mounting Style | System 57 rack module |

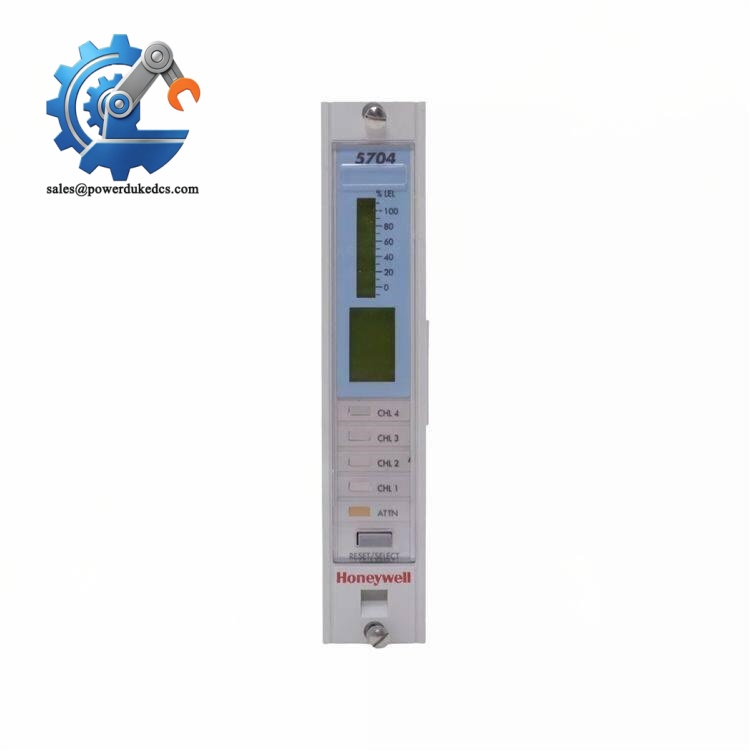

- Honeywell 05704-A-0144
Global Compliance & Industry Certifications
Expected regulatory approvals and compliance references for this class of industrial gas detection hardware may include:
- CE Mark for applicable electromagnetic compatibility requirements.
- EN50270 EMC compliance for gas detection equipment environments.
- UL/cUL evaluation where installed as part of approved industrial gas monitoring assemblies.
- ATEX/IECEx compatibility when integrated with certified hazardous-area gas detection systems.
- Marine approvals such as DNV GL when installed in approved offshore or vessel safety systems.
ATEX/IECEx compliance is especially important because gas detection systems are often installed where combustible atmospheres may exist. The complete detector, wiring, barriers, and control equipment combination must maintain the approved protection method.
Verify specific lot certifications with OEM.
Long-Term Storage & Asset Preservation Guide
- Keep the 05704-A-0144 inside its original ESD shielding bag until installation. The rack connector contacts are vulnerable to contamination and static discharge.
- Maintain warehouse humidity below 60% RH and avoid condensation cycles. Moisture exposure can degrade PCB coatings and contact surfaces.
- Inspect stored cards every 12-24 months. Check the edge connector, front display window, mounting guides, and identification labels (inventory traceability is critical for safety-system spare audits).
Physical Installation Prerequisites
- Confirm the existing Honeywell System 57 rack configuration before replacement.
- Insert the card into the correct rack slot using proper alignment guides.
- Maintain approximately 50 mm clearance above and below rack assemblies where cabinet layout permits airflow and maintenance access.
- Verify 18-32 VDC supply polarity before energizing.
- Confirm sensor wiring integrity, loop resistance, and detector compatibility before commissioning.
- Ensure cabinet grounding and protective earth bonding meet plant electrical standards.

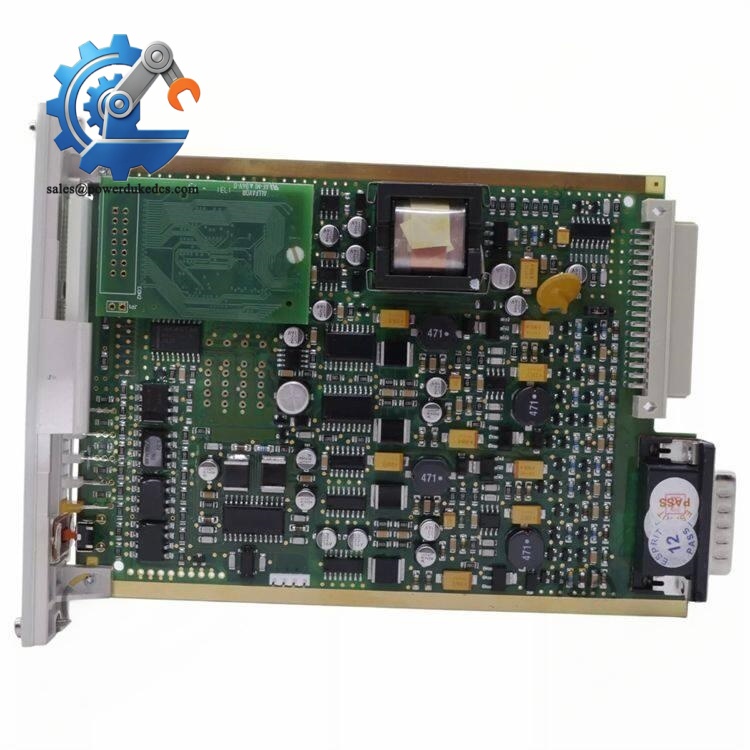

- Honeywell 05704-A-0144
Buyer’s FAQ (Logistics & Compliance Focus)
Q: What HS Tariff Code is commonly reviewed for the Honeywell 05704-A-0144?
A: Gas detection control cards are typically reviewed under electrical control, instrumentation, or safety system component classifications. The final HS code depends on the importing country’s customs interpretation and declared product function.
Q: Does Country of Origin (COO) documentation matter for this safety system spare?
A: Yes. COO records support customs clearance, supplier qualification, and safety-system lifecycle documentation. Maintain OEM labels, serial records, and receiving inspection reports.
Q: Should shipping insurance be purchased for the 05704-A-0144?
A: Yes. Although compact, the control card contains precision electronic components and display hardware. Use ESD packaging, impact protection, and declared-value insurance.
Q: Does the Honeywell 05704-A-0144 include the latest firmware pre-loaded?
A: The card stores configuration information through the System 57 architecture rather than functioning like a modern standalone PLC module. Confirm compatibility with the installed System 57 firmware and configuration records before commissioning.
