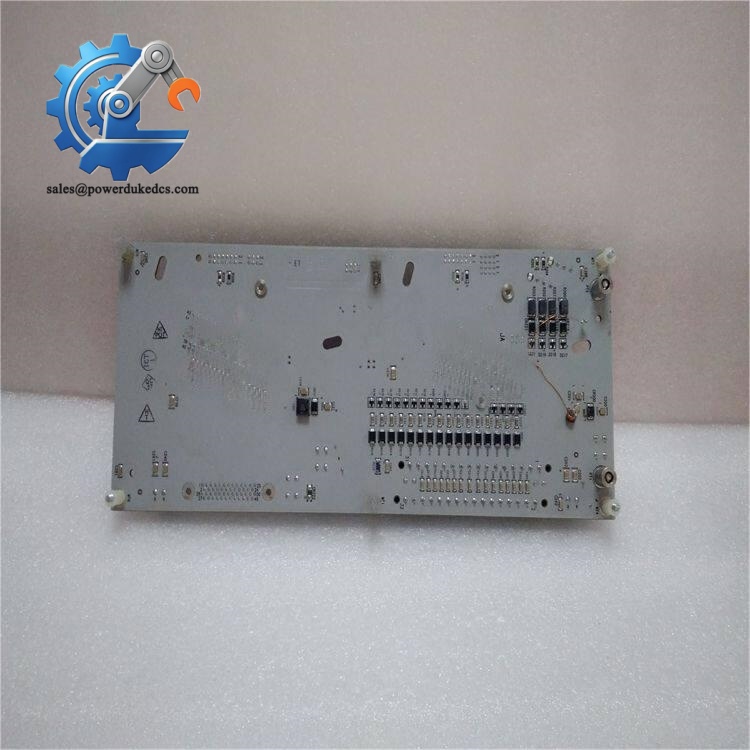

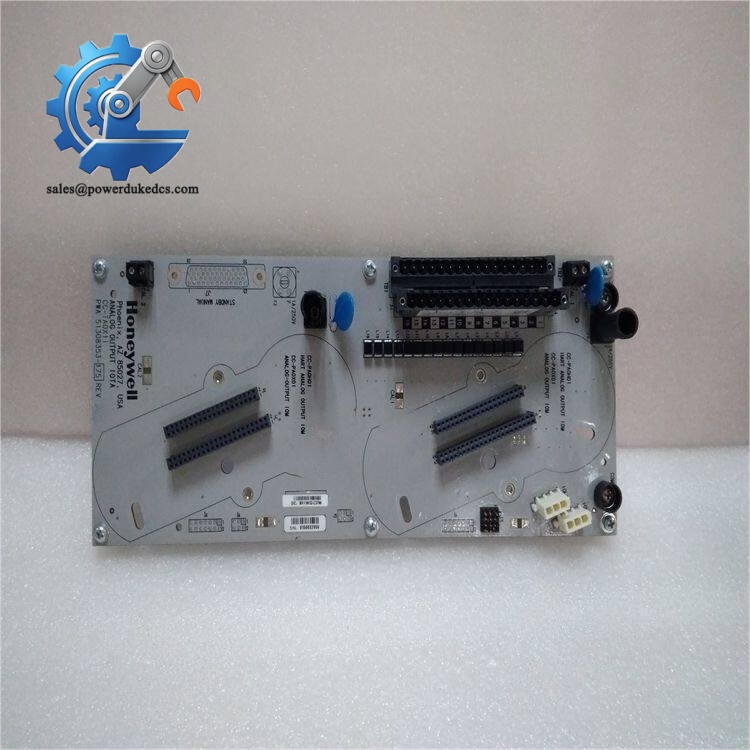

- Honeywell CC-TAOX61 | Redundant 16-Channel AO Terminal Board
Unboxing & Physical Snapshot
- Model & Brand: Honeywell CC-TAOX61
- Product Type: Series C Analog Output IOTA (Input/Output Termination Assembly), redundant version for the Honeywell Experion PKS Series C platform. It is designed to interface with compatible analog output modules and field wiring.
- Approximate Physical Dimensions (W × H × D): Approximately 305 × 160 × 45 mm (12-inch redundant IOTA format; dimensions vary slightly with installed retention hardware)
- Estimated Shipping Weight: Approximately 0.8-1.2 kg (1.8-2.6 lb) including ESD packaging
- What’s in the Box:
- Honeywell CC-TAOX61 redundant IOTA
- Factory-installed terminal blocks
- DIN-rail/panel mounting hardware (when supplied)
- Protective ESD shielding bag
- Product identification and revision label
- Installation documentation (package dependent)
Product Introduction
The CC-TAOX61 occupies the field termination layer within the Honeywell Experion PKS Series C cabinet architecture. Rather than processing analog signals itself, the assembly provides the electrical interface between field wiring and redundant analog output electronics while maintaining the physical redundancy required for high-availability control systems. (Terminal identification should always be verified against the latest loop drawings before reconnecting field conductors.)
This redundant IOTA supports 16 analog output channels with 4-20 mA signal capability and is intended for applications where continuous operation is required during maintenance or module replacement. Matching the correct IOTA revision with the associated Series C analog output module prevents wiring incompatibility and avoids unnecessary commissioning delays during plant outages.
Core Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Honeywell |
| Model | CC-TAOX61 |
| Product Family | Experion PKS Series C I/O |
| Product Type | Redundant Analog Output IOTA |
| IOTA Length | 12 in. (Redundant version) |
| Supported Output Type | Analog Output (4-20 mA) |
| Channel Capacity | 16 channels |
| Output Ripple | <100 mV peak-to-peak across 250 Ω load |
| Output Linearity | ±0.05% of full scale (nominal) |
| Calibrated Accuracy | ±0.35% of full scale at 25°C |
| Output Temperature Drift | 0.005% FS/°C |
| Direct Output Range | 0 mA, 2.9 mA to 21.1 mA |
| Maximum Resistive Load | 800 Ω (22-28 VDC supply) |
| Maximum Compliance Voltage | 16 VDC |
| Open Circuit Voltage | 22 VDC maximum |
| Mounting Method | Series C cabinet carrier assembly |
| Power Dissipation | Determined by associated analog output module and loop loading |
| Heat Generation | Low; passive termination assembly with negligible self-heating |
Honeywell CC-TAOX61
? Global Compliance & Industry Certifications
Expected regulatory approvals for this class of Honeywell Series C hardware include:
- CE Mark for EMC compliance in approved system configurations.
- UL/cUL Recognition through certified Experion PKS control assemblies.
- RoHS Compliance for applicable production revisions.
- ATEX / IECEx compatibility when installed within certified hazardous-area system architectures using approved barriers and associated equipment.
- Class I, Division 2 / Zone 2 suitability may apply as part of certified system installations rather than the standalone IOTA.
For process plants handling flammable materials, hazardous-location certification confirms that the complete installation is designed to avoid becoming an ignition source during normal operation and specified fault conditions.
Verify specific lot certifications with OEM.
? Long-Term Storage & Asset Preservation Guide
Store the CC-TAOX61 inside its original anti-static protective packaging until installation. Although the assembly contains no active processor, exposed connector interfaces and terminal hardware remain susceptible to electrostatic discharge and airborne contamination.
Maintain warehouse humidity below 60% RH and avoid storage near sulfur-bearing chemicals, battery charging stations, or corrosive environments. Long-term oxidation of terminal screws and connector contacts can increase loop resistance.
Inspect the assembly every 12 to 24 months. Verify terminal torque hardware remains secure, examine connector pins for discoloration, and confirm that the insulating body shows no cracking or distortion (especially after prolonged storage in uncontrolled warehouses).
Physical Installation Prerequisites
- Install only on the approved Honeywell Series C carrier assembly.
- Verify compatibility with the associated redundant analog output module before installation.
- Leave at least 50 mm (2 in.) of clearance around cabinet ventilation paths.
- Connect the cabinet protective earth before terminating field wiring.
- Route analog output wiring separately from high-voltage motor and VFD cables to minimize electrical interference.
- Tighten field terminals to Honeywell-specified torque values.
- Confirm redundant communication and power paths before placing the assembly into service.
Honeywell CC-TAOX61
Buyer’s FAQ (Logistics & Compliance Focus)
Q: Which HS Tariff Code is generally used when exporting the CC-?
A: Industrial I/O termination assemblies are commonly classified under HS 8537 or HS 8538, depending on the importing country’s interpretation and whether the item is declared as a control assembly or a component. Always obtain the final classification from your customs broker before shipment.
Q: Why should the Country of Origin be verified?
A: Country of Origin influences customs duties, preferential trade eligibility, and documentation required during compliance audits. Confirm the origin shown on the product nameplate rather than relying solely on purchasing records.
Q: Is shipping insurance recommended?
A: Yes. While the assembly contains few moving parts, connector damage, bent terminal hardware, and impact to the mounting frame can render the unit unsuitable for installation. Insurance is advisable for international shipments and legacy spare inventories.
Q: Does the CC- include the latest firmware pre-loaded?
A: No. The CC- is a passive IOTA and does not contain application firmware. Firmware resides in the associated Series C analog output module and the Experion PKS controller, so compatibility should be verified during system commissioning.
