1. KONGSBERG HA220256B/B | Industrial I/O Controller Replacement

2. At-A-Glance Executive Brief

• Model: KONGSBERG HA220256B/B
• Brand: KONGSBERG
• Series/System: KONGSBERG Maritime Automation / K-Chief Control Platform (application dependent)
• Part Type: Marine automation control module / electronic interface board
• Core Function: Provides signal processing and control communication within a KONGSBERG distributed automation architecture.
• Key Specs:
  • Designed for shipboard automation environments
  • Used within integrated marine control systems
  • Supports industrial communication and field signal management
  • Replacement hardware for existing KONGSBERG installations
• Procurement Category: Marine automation spare part, lifecycle support inventory item

3. Product Introduction

Inside a vessel control cabinet, the HA220256B/B functions as part of the KONGSBERG automation hardware layer where field signals, controller logic, and operator systems exchange operational data. In field deployments, these modules are typically maintained as critical spare assets because a failed control board can interrupt monitoring or automation functions across propulsion, power management, or auxiliary systems (—especially during offshore service windows where repair access is limited).

The exact role of the HA220256B/B depends on the installed KONGSBERG system configuration, cabinet design, and software database. Before replacement, confirm rack position, board revision, connector layout, and application database compatibility. A physically identical board may still require configuration verification before returning the vessel to service.

4. Core Technical Specifications

Parameter	Value
Manufacturer	KONGSBERG
Model Number	HA220256B/B
Product Category	Marine automation control module
System Compatibility	KONGSBERG maritime automation platforms
Application	Ship control, monitoring, and automation systems
Module Type	Electronic control/interface board
Mounting Method	Control cabinet rack / internal chassis mounting
Communication Interface	System dependent
Power Supply	System cabinet supply dependent
Operating Environment	Marine industrial control environment
Cooling Method	Cabinet forced air or natural convection
Configuration Storage	Application dependent
Firmware	System software dependent
Service Replacement	Requires hardware and configuration verification

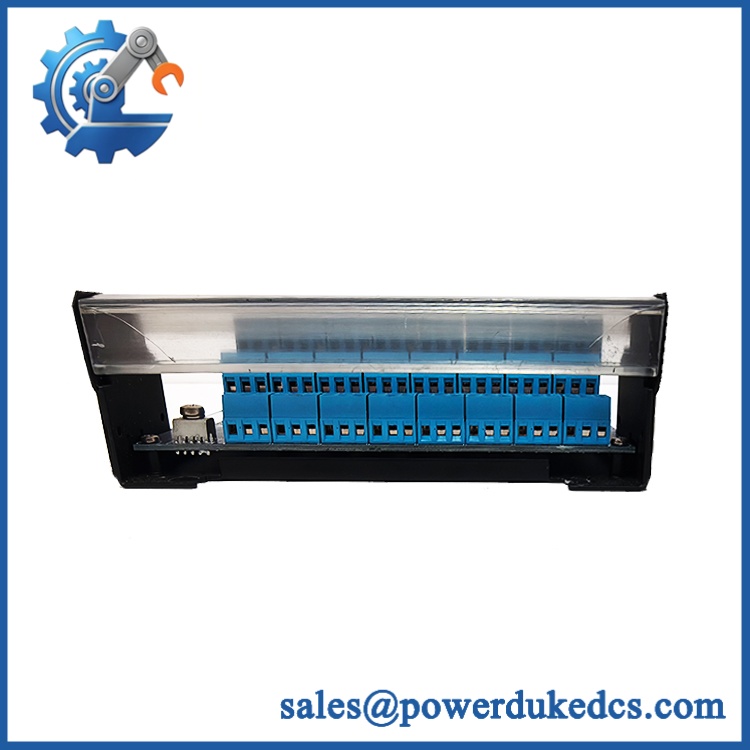

KONGSBERGKONGSBERG HA220256B/B HA220256B/B

5. Application Scenarios & Pain Points

During a vessel maintenance shutdown, replacing a failed HA220256B/B can restore a non-responsive automation section without redesigning the existing control architecture. Typical applications include:

• Marine propulsion systems: Used within ship automation networks where continuous monitoring of engines, generators, and auxiliary equipment is required.
• Offshore platforms: Applied in environments with vibration, humidity, and temperature fluctuations that can exceed standard industrial conditions.
• Power management systems: Supports control cabinets handling generator synchronization and electrical distribution monitoring.
• Engine room automation: Helps maintain communication between field devices and supervisory systems.
• Retrofit projects: Used for legacy migration programs where existing KONGSBERG installations require replacement inventory.

A vessel operating in tropical waters may experience equipment-room temperatures above 50°C during abnormal ventilation conditions, making correct cabinet installation and spare storage practices important.

6. ? Common Error Codes & Diagnostic Symptoms

Symptom/Code: Module communication loss / node unavailable alarm
→ Diagnosis: Possible failure of internal electronics, communication interface, or backplane connection.
→ Action: Inspect connectors and replace HA220256B/B if hardware failure is confirmed.

Symptom/Code: Status LED abnormal indication or no LED activity
→ Diagnosis: Possible internal power circuit failure or damaged board electronics.
→ Action: Verify cabinet supply voltage, then replace module.

Symptom/Code: Intermittent I/O data or unstable system feedback
→ Diagnosis: Possible connector oxidation, board aging, or communication interface degradation.
→ Action: Check seating condition and replace module if instability remains.

7. Cross-Reference & Lifecycle Migration

• Replacement Compatibility:
  • Confirm replacement against the existing HA220256B/B hardware revision and vessel-specific automation configuration.
  • Earlier and later board revisions may not always be direct replacements without system verification.
• Firmware / Configuration Requirements:
  • Firmware compatibility depends on the installed KONGSBERG automation platform.
  • Configuration database transfer or system parameter verification may be required after replacement.
• Lifecycle Status:
  • Status: Legacy / Limited Availability (application dependent).
  • For older vessels, maintaining dedicated spare stock is recommended because procurement lead times can increase as installed systems age.
• Migration Strategy:
  • Maintain one tested spare module for critical systems.
  • Record hardware revision, serial number, and vessel installation location.

8. Field Engineer’s Tech Notes (Anti-Pitfall Guide)

1. Do not install by appearance only.
   Two KONGSBERG boards may share similar dimensions but use different firmware, addressing, or connector assignments. Verify the hardware label before inserting the replacement.
2. Protect the connector edge during handling.
   Avoid touching contact surfaces directly. ESD damage or contamination can create intermittent faults that appear as communication problems rather than obvious hardware failure.

9. Strict QA & Testing SOP

Each HA220256B/B spare should pass the following inspection process:

Step 1 — Incoming Inspection

• Verify manufacturer label and full part number.
• Check serial number, revision marking, and physical condition.
• Inspect PCB surfaces, connectors, and mounting points.

Step 2 — Electrical Verification

• Confirm power input requirements.
• Check for abnormal current consumption.
• Inspect communication interface behavior.

Step 3 — Functional Testing

• Install into a compatible test environment where available.
• Verify startup sequence.
• Confirm communication stability.
• Check diagnostic indicators.

Step 4 — Documentation Review

• Record test results.
• Photograph hardware condition.
• Archive serial number information.

Step 5 — Packaging Control

• Place the module inside anti-static protection.
• Use shock-resistant packaging for international transport.

Test videos are available for selected inspected units upon request.

10. Buyer’s FAQ (Dynamic Q&A)

Q: Can the HA220256B/B be hot-swapped while the vessel system is running?

A: Do not assume hot-swap capability. Most marine control modules require controlled shutdown procedures unless the system documentation specifically confirms online replacement support.

Q: How can I confirm this is a New Original KONGSBERG spare?

A: Verify the original manufacturer label, part number, revision marking, packaging condition, and traceability documents. Serial-number records should match the supplied hardware.

Q: Does replacement require software configuration?

A: Possibly. Hardware installation may require database verification, addressing checks, or controller configuration depending on the KONGSBERG automation platform.

Q: What warranty should I expect for this module?

A: Warranty terms depend on supplier policy and product condition. Confirm whether the unit is new original, unused surplus, refurbished, or tested spare before purchase.
