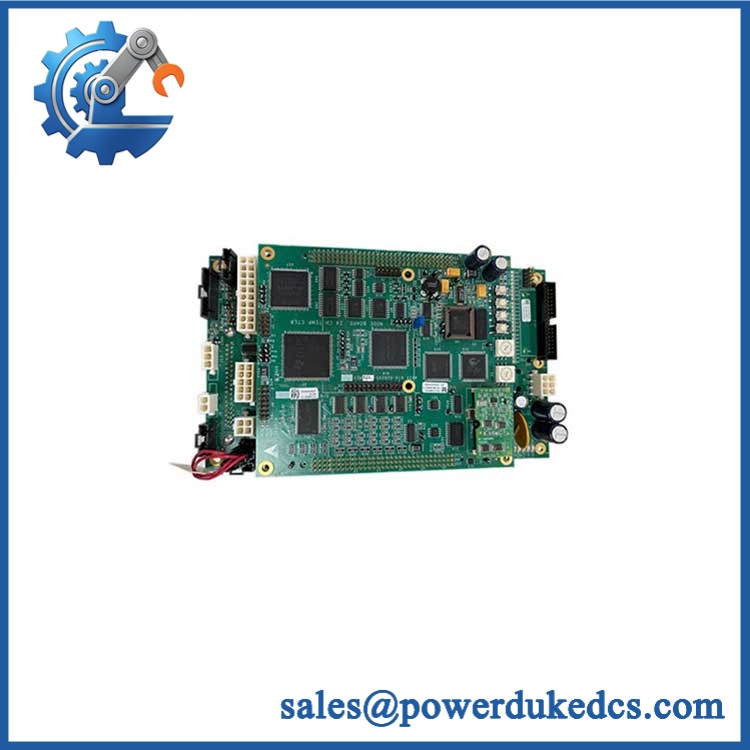

LAM 853-049542-173 | 24CH Thermal Controller Replacement

1. LAM 853-049542-173 | 24CH Thermal Controller Replacement

At-A-Glance Executive Brief

• Model: LAM 853-049542-173
• Brand: LAM Research
• Series: Semiconductor Process Equipment Control Assembly
• Part Type: 24-Channel Temperature Control Node PCB Assembly
• Core Function: Controls and monitors multiple thermal channels inside LAM semiconductor processing equipment, supporting precise chamber temperature regulation.
• Key Specs:
  • 24 independent temperature control channels.
  • Node PCB assembly configuration.
  • Associated alternate part number: 810-028295-173.
  • Designed for semiconductor wafer processing platforms such as LAM TCP 9400 equipment.
  • Compact PCB assembly used in controlled cleanroom environments.

Product Introduction

Structure A — Pain-point Hook

When a semiconductor process chamber loses temperature control stability, production yield can drop quickly. A failed temperature control node board such as the LAM 853-049542-173 can interrupt heater regulation, create process alarms, or prevent recipe execution.

Installed inside LAM Research process equipment, this PCB assembly manages multi-channel thermal control signals between the equipment controller and chamber heating components. In field deployments, technicians typically replace this board during preventive maintenance or after diagnostic isolation confirms channel-level control failure (—which is critical in wafer fabrication where thermal uniformity directly affects process repeatability).

Core Technical Specifications

LAM 853-049542-173

Application Scenarios & Pain Points

Bold technical conclusion:

Thermal control accuracy is one of the primary stability factors in semiconductor processing. A defective 853-049542-173 board can affect heater zoning, temperature feedback loops, and recipe consistency.

• Plasma Etch Equipment: Maintains chamber thermal zones during wafer processing cycles where temperature deviation can influence etch uniformity.
• CVD / Deposition Systems: Supports heater control requirements where stable temperatures are maintained across processing stages.
• LAM TCP 9400 Platforms: Used as a dedicated temperature control node assembly within the equipment architecture.
• Semiconductor Maintenance Programs: Held as a critical spare to reduce equipment downtime during controller or thermal subsystem failures.
• Legacy Equipment Support: Helps extend the operating life of installed LAM production tools without immediate system replacement.

For cleanroom equipment operating continuously, thermal stress remains a concern. Cabinets and electronics compartments exposed to 50°C+ internal temperatures require airflow inspection and preventive replacement planning.

Common Error Codes & Diagnostic Symptoms

Symptom/Code: Temperature Channel Failure / Heater Zone Not Reaching Setpoint
→ Diagnosis: A failed output channel, damaged driver circuit, or communication issue between the node board and heater control system may prevent proper thermal regulation.
→ Action: Verify heater wiring and sensor feedback, then replace the 853-049542-173 board.

Symptom/Code: Intermittent Temperature Communication Loss
→ Diagnosis: Possible backplane connector contamination, PCB communication fault, or degraded contact interface.
→ Action: Inspect connectors and replace the node PCB if communication failure remains.

Symptom/Code: Thermal Loop Oscillation / Unstable Temperature Control
→ Diagnosis: Incorrect calibration data, degraded output circuitry, or faulty feedback channels may affect PID control performance.
→ Action: Verify calibration parameters and replace the controller board if hardware failure is confirmed.

Cross-Reference & Lifecycle Migration

• Compatible Identification:
  • LAM 853-049542-173
  • Alternate reference: 810-028295-173
• Replacement Considerations:
  • Confirm equipment model and chamber configuration before installation.
  • Verify PCB revision marking.
  • Transfer or restore calibration parameters after replacement.
• Firmware Requirement:
  This board is a hardware control assembly rather than a standalone PLC CPU. Equipment software compatibility and calibration data may require verification after replacement.
• Lifecycle Status: Legacy / Limited Availability

For spare inventory management, maintain one tested replacement board with recorded revision information. Semiconductor equipment often depends on exact hardware revisions because process recipes are tightly coupled with controller behavior.

Field Engineer’s Tech Notes (Anti-Pitfall Guide)

1. Do not install this board without recording calibration information first.
   Thermal channels may require recalibration after replacement. Skipping this step can create false temperature alarms or process drift.
2. Protect the edge connectors during handling.
   Semiconductor equipment boards are sensitive to contamination and ESD. Always use grounded wrist straps and keep the PCB inside anti-static packaging until installation.

Strict QA & Testing SOP

A professional inspection process for LAM 853-049542-173 should include:

Step 1 — Incoming Inspection

• Verify part number marking.
• Check PCB revision and label condition.
• Inspect solder joints, connectors, and board surface.
• Photograph received condition.

Step 2 — Electrical Verification

• Check power rail response.
• Verify connector continuity.
• Inspect for damaged components or capacitor leakage.

Step 3 — Functional Testing

• Install into a compatible LAM test environment.
• Verify communication with equipment controller.
• Test temperature channel response.
• Confirm heater control output behavior.

Step 4 — Calibration Verification

• Compare stored thermal parameters.
• Verify channel mapping.
• Confirm equipment recipe compatibility.

Step 5 — Packaging Control

• Place board in ESD shielding bag.
• Add moisture and shock protection.
• Attach inspection report.

Test videos, inspection photographs, and functional verification records are available for quality review.

Buyer’s FAQ (Dynamic Q&A)

Q1. Can the LAM 853-049542-173 be hot-swapped during equipment operation?

A: No. Semiconductor process equipment control boards should be replaced only after proper equipment shutdown and ESD protection procedures. Removing an active temperature controller may interrupt chamber operation.

Q2. “How can I verify this is an original LAM Research 853-049542-173?”

A: Check PCB markings, revision labels, serial information, supplier traceability, and inspection documentation. For semiconductor spare parts, physical identification is essential.

Q3. Does the 853-049542-173 include factory calibration data?

A: Calibration requirements depend on the equipment configuration. After replacement, thermal channel verification and possible recalibration may be required.

Q4. What warranty should be requested for this legacy PCB assembly?

A: Request written warranty coverage, test records, and condition details. For legacy semiconductor equipment boards, functional testing documentation is an important purchasing requirement.
