MOOG SM23165D | Industrial Motion System Interface

2. At-A-Glance Executive Brief

Model: MOOG SM23165D
Brand: MOOG
Series: Moog Servo Control / Motion Control Family
Part Type: Servo Amplifier / Servo Drive Module
Core Function: Converts command signals into controlled electrical output for precision servo motor operation.
Key Specs:
- Designed for industrial motion control applications.
- Supports closed-loop servo systems with feedback monitoring.
- Requires compatibility verification with motor, controller, and feedback hardware.
- Used in applications requiring accurate position, velocity, and torque regulation.

3. Product Introduction

Structure B — Technical Direct

Inside a Moog motion control architecture, the SM23165D operates as a servo drive component responsible for regulating motor current and maintaining closed-loop performance between the controller, amplifier, and feedback device. The module sits between the control command source and the servo motor assembly, managing the electrical response required for precise mechanical movement.

In field deployments, these servo modules are commonly found in automation equipment where repeatability and dynamic response are critical (—including aerospace systems, industrial machinery, and specialized manufacturing equipment). Before replacement, verify motor ratings, feedback type, parameter settings, and connector pin assignments. A matching model number alone does not always confirm system compatibility.

4. Core Technical Specifications

Parameter	Value
Manufacturer	MOOG
Model	SM23165D
Product Type	Servo Amplifier / Servo Drive Module
Application	Industrial motion control systems
Control Mode	Closed-loop servo control
Motor Interface	Servo motor connection (system dependent)
Feedback Support	Encoder/resolver feedback (configuration dependent)
Input Command	Analog or digital command interface (system dependent)
Output Type	Controlled servo motor power output
Communication Interface	Depends on installed controller architecture
Protection Functions	Overcurrent, overvoltage, thermal monitoring
Mounting Type	Industrial cabinet/rack installation
Cooling Method	Forced air or cabinet ventilation
Operating Environment	Industrial automation enclosure
Configuration Storage	Drive parameter memory
Maintenance Category	Industrial replacement spare

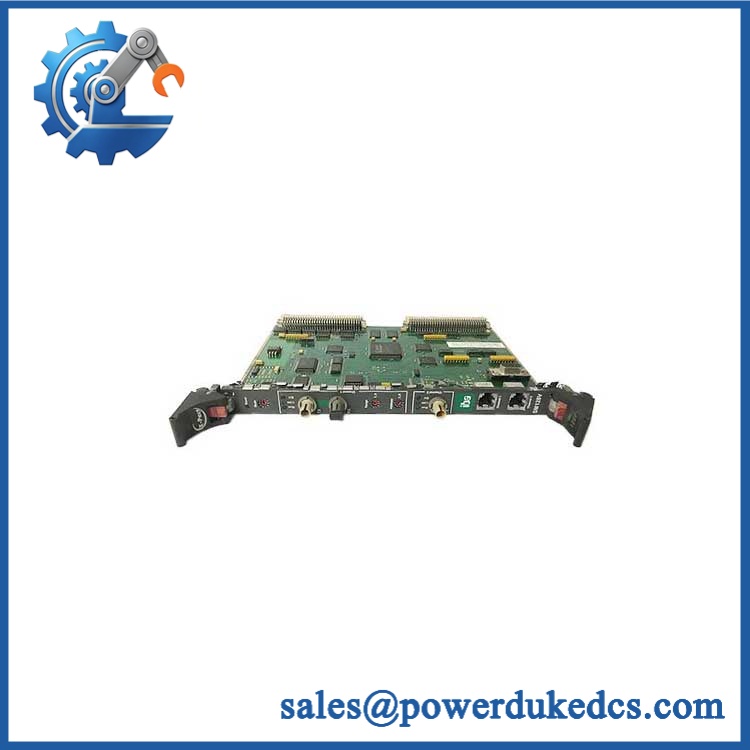

MOOG SM23165D

5. Application Scenarios & Pain Points

With vs. Without comparison:

Without a functioning SM23165D, motion systems may lose positioning accuracy, generate servo faults, or stop production completely. With a properly matched replacement, the machine can return to controlled operation after parameter restoration and verification.

Machine Tool Systems: Used for precision axis control where micron-level positioning requirements demand stable servo response.
Robotics Equipment: Supports controlled movement in robotic mechanisms requiring repeatable acceleration and deceleration profiles.
Semiconductor Manufacturing: Applied in equipment requiring consistent motion performance under controlled environments.
Packaging Machinery: Helps maintain synchronized movement where production speeds may exceed hundreds of cycles per minute.
Special Industrial Systems: Used in custom automation platforms where servo tuning parameters are critical.

At installation sites with ambient temperatures above 50°C, cabinet airflow and heat dissipation checks become essential because servo electronics generate continuous thermal load.

6. Common Error Codes & Diagnostic Symptoms

Symptom/Code: Overcurrent Fault / Drive Trip
→ Diagnosis: Internal power stage stress, motor cable short circuit, or incorrect motor parameter settings may trigger protection shutdown.
→ Action: Verify motor wiring and replace the SM23165D if internal drive failure is confirmed.

Symptom/Code: Servo Ready Signal Missing
→ Diagnosis: The drive may fail initialization due to internal control board issues, feedback errors, or configuration loss.
→ Action: Check feedback loop and control parameters, then replace the module if hardware failure exists.

Symptom/Code: Excessive Position Error Alarm
→ Diagnosis: Incorrect tuning parameters, encoder feedback problems, or degraded amplifier output stage may prevent accurate positioning.
→ Action: Validate the complete servo loop and replace the drive module if required.

7. Cross-Reference & Lifecycle Migration

Compatibility Check: Confirm the motor model, feedback device, rated current, and controller interface before replacement.
Parameter Transfer: Servo tuning values may require reloading after replacement.
Firmware Requirement: Depending on the control platform, firmware revision matching may be required.
Previous Revisions: Specific replacement mappings depend on the original Moog drive family documentation and application.
Lifecycle Status: Legacy / Limited Availability for many installed systems.

For spare inventory planning, maintain one verified replacement unit with documented parameters, motor compatibility records, and previous service history.

8. Field Engineer’s Tech Notes (Anti-Pitfall Guide)

Do not power a replacement servo drive immediately after installation.
Confirm motor voltage, current limits, and feedback wiring first. Incorrect parameters can damage the drive power stage or create uncontrolled movement.
Watch the connector condition.
Servo feedback connectors require careful inspection. Bent pins, contamination, or poor shielding can appear as drive faults even when the amplifier is healthy.

9. Strict QA & Testing SOP

A professional inspection process for a MOOG SM23165D should include:

Step 1 — Incoming Inspection

Confirm model marking and serial number.
Inspect enclosure, connectors, mounting points, and labels.
Check for corrosion, impact marks, or unauthorized repairs.

Step 2 — Electrical Testing

Verify input power behavior.
Check insulation condition where applicable.
Confirm control signal response.

Step 3 — Drive Functional Test

Connect to a compatible servo motor test platform.
Verify enable operation.
Check output response and fault monitoring.

Step 4 — Parameter Verification

Confirm drive settings.
Compare stored parameters with application requirements.
Record firmware and hardware revisions.

Step 5 — Packaging Control

Place the tested module in anti-static packaging.
Add shock protection for transportation.
Attach inspection records.

Test videos and inspection photos are available for quality verification.

10. Buyer’s FAQ (Dynamic Q&A)

Q1. Can the MOOG SM23165D be hot-swapped during machine operation?

A: No. Servo amplifiers should normally be removed only after system shutdown and DC bus discharge procedures are completed. Live removal may create safety risks and damage connected equipment.

Q2. “How can I confirm this is a New Original SM23165D?”

A: Verify OEM markings, serial number traceability, packaging condition, inspection records, and supplier documentation. A complete history is important for motion control spares.

Q3. Will the SM23165D arrive with application parameters already loaded?

A: Not necessarily. Servo parameters are usually application-specific and may need restoration from the machine backup after installation.

Q4. What warranty coverage should I request for this servo module?

A: Confirm warranty duration, test procedures, and replacement terms before purchase. For legacy servo equipment, written functional test documentation is recommended.
