1. WOODWARD 5466-1047 | OEM Gas Turbine Control Module

2. Unboxing & Physical Snapshot

• Brand & Model: WOODWARD 5466-1047
• Product Family: MicroNet™ Digital Control System
• Product Type: MicroNet Plus CPU5200 Triple Modular Redundant (TMR) processor module used for turbine and compressor control applications.
• Processor Architecture: Motorola MPC5200 processor-based CPU module.
• Primary Application: Safety-related turbine control, gas turbine protection, steam turbine control, compressor train management, and industrial rotating equipment systems.
• Mounting Type: MicroNet rack chassis module.
• Physical Dimensions (Approximate W × H × D):
  • Approximately 40 × 250 × 220 mm (typical MicroNet rack module format).
• Estimated Shipping Weight: Approximately 1.0–1.5 kg including ESD protection and export packaging.
• What’s in the Box:
  • Woodward 5466-1047 CPU5200 TMR processor module
  • Front identification label
  • Backplane interface connector
  • Anti-static (ESD) shielding bag
  • Protective shipping carton

3. Product Introduction

Structure B — Architecture Hook

The WOODWARD 5466-1047 functions as the processing core inside a MicroNet Plus Triple Modular Redundant control architecture. Installed within the MicroNet rack, the CPU5200 module executes application logic, communicates with distributed I/O, and manages turbine or compressor control tasks through the redundant processing structure.

This module is part of a safety-oriented control platform rather than a conventional PLC CPU. The three-channel voting architecture is designed to maintain operation availability while detecting internal processor faults. Inspect the backplane connector, module guides, and locking hardware carefully (—which is critical for rotating equipment where an unnoticed controller fault can affect protection functions).

4. Core Technical Specifications

Parameter	Value
Manufacturer	Woodward
Model Number	5466-1047
Product Family	MicroNet Digital Control
Module Type	CPU5200 TMR Processor Module
Architecture	Triple Modular Redundant (TMR)
Processor	Motorola MPC5200
Application	Turbine and compressor control
Operating Temperature	0°C to 55°C (typical MicroNet environment)
Power Supply	24 VDC system supply through MicroNet power architecture
Memory	CPU5200 integrated memory architecture
Programming Environment	Woodward GAP programming system
Communication Support	Ethernet TCP/IP, UDP, Modbus, OPC-related interfaces (system dependent)
Redundancy Mode	TMR operation
Rack Installation	MicroNet chassis backplane
Expansion Capability	Supports MicroNet expansion architecture
Certification	TUV certified (application dependent)
EMC Immunity	EN61000-6-2
EMC Emissions	EN61000-6-4

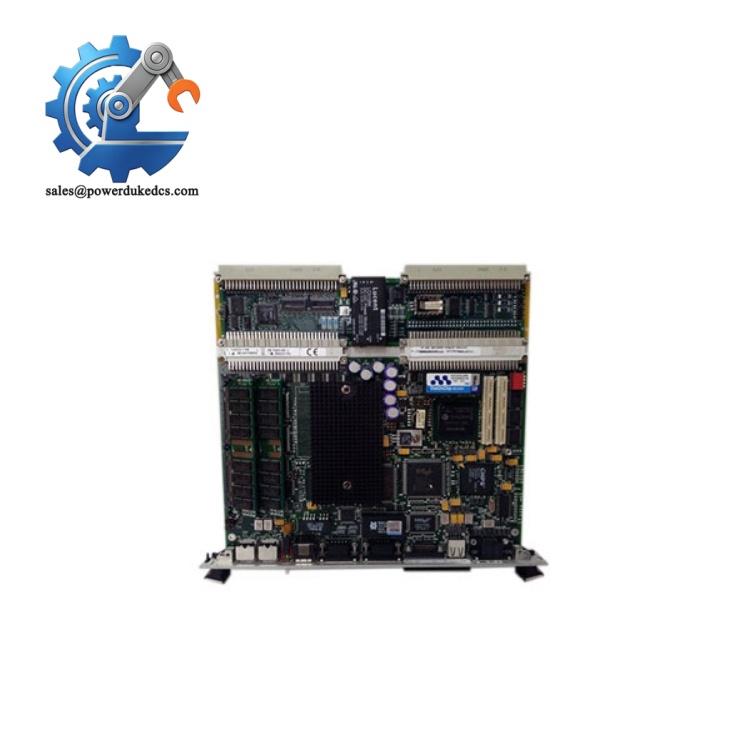

WOODWARD 5466-1047

The 5466-1047 provides the processing foundation for MicroNet TMR systems. Application behavior depends on the installed GAP program, system coder version, and connected I/O modules.

5. ? Global Compliance & Industry Certifications

Expected regulatory approvals and compliance considerations:

• TUV Certification — associated with the MicroNet TMR safety control platform.
• CE Mark — applicable to compliant MicroNet system installations.
• EN61000-6-2 EMC Immunity — industrial environment immunity standard referenced for this module family.
• EN61000-6-4 EMC Emissions — industrial emissions compliance reference.
• UL/cUL Listed — confirm exact module revision and system certification scope.
• ATEX/IECEx — the CPU module itself is not a standalone hazardous-area device; certification depends on the complete control system installation.
• Marine Approvals (DNV GL / ABS / LR) — only applicable when integrated into an approved marine turbine control package.

For safety-related turbine controls, certification records are part of the equipment lifecycle file. A visually identical CPU module without matching approval status may not satisfy replacement requirements.

Verify specific lot certifications with OEM.

6. ? Long-Term Storage & Asset Preservation Guide

Store the 5466-1047 inside its original anti-static (ESD) packaging. The rear backplane contacts are precision surfaces and should not be exposed to dust, fingerprints, or humidity.

Maintain warehouse humidity below 60% RH. Long-term moisture exposure can affect connector plating and PCB protection layers.

Before installation:

• Inspect the card edge connector for oxidation.
• Verify the module label and serial number match asset records.
• Confirm the installed GAP application compatibility.
• Check the MicroNet firmware and coder version requirements.
• Inspect retaining clips and mechanical guides before insertion.

Keep configuration backups with the spare processor. Replacing the hardware without the correct application image can prevent system startup.

7. Physical Installation Prerequisites

• Install only into a compatible Woodward MicroNet rack.
• Disconnect system power before module insertion or removal.
• Use ESD protection during handling.
• Verify backplane alignment before seating the module.
• Confirm rack grounding and cabinet bonding requirements.
• Ensure power supply modules and redundant CPU configuration match the system design.

Maintain cabinet airflow around the MicroNet rack. Leave adequate clearance above and below the rack assembly for convection cooling and maintenance access.

Avoid placing the controller rack near high-current switching equipment without proper electrical separation.

8. Buyer’s FAQ (Logistics & Compliance Focus)

Q1. What HS Tariff Code is commonly used for WOODWARD 5466-1047?

A: The final Harmonized System classification depends on customs interpretation and the declared function of the processor module. Industrial electronic control modules are generally reviewed under electrical control equipment categories. Confirm the final HS code with your customs broker.

Q2. Does Country of Origin affect 5466-1047 import clearance?

A: Yes. COO documentation supports customs processing, equipment traceability, and maintenance audit records. Retain the OEM label, commercial invoice, packing list, and inspection report together.

Q3. Is shipping insurance recommended for this CPU module?

A: Recommended. The processor contains sensitive electronics and precision backplane connections. Shock, vibration, or moisture exposure during transport may cause intermittent faults that are difficult to diagnose.

Q4. Does the WOODWARD 5466-1047 include the latest firmware pre-loaded?

A: The module contains the required CPU firmware environment, but the application software, GAP program, and coder version depend on the installed MicroNet system configuration. Verify the replacement module matches the existing control application before commissioning.

Asset Verification Note: Confirm the complete part marking before replacement. The 5466-1047 is specifically identified as a MicroNet Plus CPU5200 TMR module using a Motorola MPC5200 processor.
