WOODWARD 9905-020 | Original 2301A Turbine Control

Description

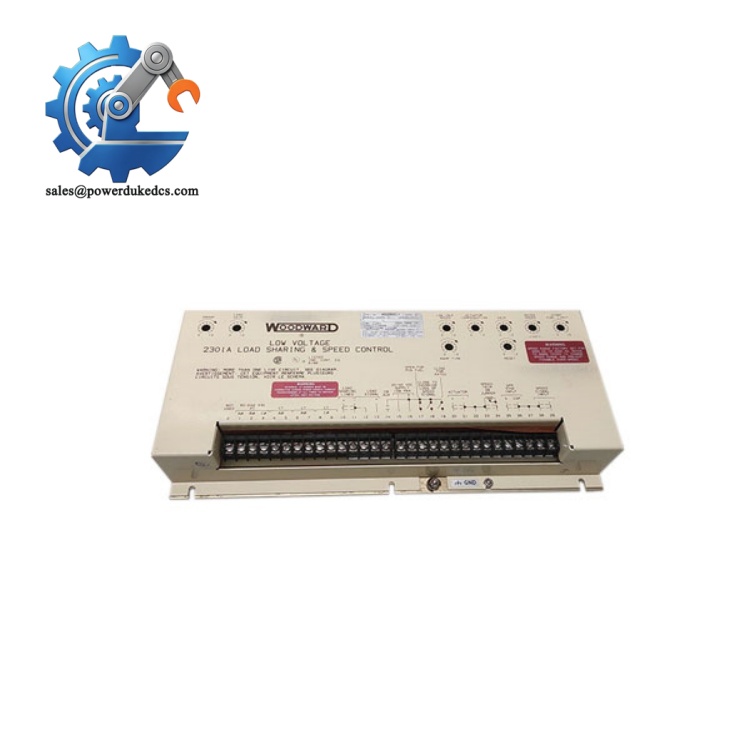

1. WOODWARD 9905-020 | Original 2301A Turbine Control

Unboxing & Physical Snapshot

• Brand & Model: WOODWARD 9905-020
• Product Family: 2301A Electronic Load Sharing & Speed Control Series
• Product Type: Low-voltage electronic speed control and load-sharing controller for diesel engines, gas engines, and steam/gas turbines. The unit provides speed regulation through a forward-acting actuator output.
• Primary Application: Generator sets, prime mover control systems, turbine packages, and industrial power-generation equipment.
• Actuator Configuration: Single actuator, forward-acting.
• Actuator Output: 0–200 mA.
• Physical Dimensions (Approximate W × H × D):
  • 387 × 181 × 64 mm
  • Sheet-metal chassis construction with front-access adjustment points.
• Estimated Shipping Weight: Approximately 1.8 kg (controller only); export packaging increases total shipment weight.
• What’s in the Box:
  • Woodward 9905-020 electronic control unit
  • Terminal connection interface
  • Front adjustment access panel
  • Product identification label
  • Protective ESD packaging
  • Export carton

Product Introduction

Structure A — Environmental Hook

The WOODWARD 9905-020 is built for demanding prime mover environments where speed stability and generator load response must remain controlled through changing operating conditions. Installed inside a protected electrical enclosure, this 2301A controller manages actuator positioning based on speed feedback and system requirements.

This controller is maintained as a long-life spare in generator and turbine installations. Verify the actuator type, power supply range, and speed sensing arrangement before replacement. Check the calibration records. The chassis, terminal screws, adjustment potentiometers, and PCB condition require inspection before installation (—which is critical when replacing governor hardware on synchronized generator systems).

Core Technical Specifications

WOODWARD 9905-020

The 9905-020 uses analog control circuitry and front-access adjustment components rather than modern software configuration. Replacement units should be matched by exact part number because actuator current range and direction settings vary throughout the 2301A family.

? Global Compliance & Industry Certifications

Expected regulatory considerations for the WOODWARD 9905-020 include:

• CE Mark — applicable when installed within a compliant industrial control system.
• UL/cUL Recognition — certification status depends on product revision and installation requirements.
• CSA Certification — 2301A 9905/9907 series documentation references CSA certification for applicable models.
• EMC Compliance — required for generator and turbine control installations.
• ATEX/IECEx — not a standalone hazardous-area certified controller; hazardous-area suitability depends on enclosure, barriers, and complete system approval.
• Marine Approvals (DNV GL) — only applicable when supplied as part of an approved marine power-control package.

For governor controllers, compliance documentation is important because the device directly influences engine speed, frequency stability, and actuator response.

Verify specific lot certifications with OEM.

? Long-Term Storage & Asset Preservation Guide

Store the 9905-020 in its original protective packaging. The terminal area and adjustment components should remain protected from dust, moisture, and accidental impact.

Maintain warehouse humidity below 60% RH. Long-term moisture exposure can affect PCB coatings, terminal contacts, and adjustment mechanisms.

Before installation:

• Inspect the chassis for corrosion or deformation.
• Check terminal screws and connectors for oxidation.
• Verify actuator output settings against the removed controller.
• Confirm speed range selection before energizing.
• Perform controlled startup testing after extended storage.

Keep the wiring diagram and calibration records with the spare unit. A physically correct replacement can still require adjustment before returning equipment to service.

Physical Installation Prerequisites

• Install inside a clean, dry control cabinet.
• Mount securely using the chassis mounting holes.
• Connect a compliant 20–40 VDC power source.
• Verify grounding and shielding practices.
• Use correct actuator wiring polarity.
• Separate speed signal wiring from high-current conductors.

Provide sufficient cabinet ventilation for heat removal. Leave approximately 50 mm clearance around ventilation areas where cabinet design permits.

Avoid mounting near contactors, variable frequency drives, or high-noise switching equipment without proper signal separation.
