- Woodward 5466-1156 | Original MicroNet TMR Hardware
2. Unboxing & Physical Snapshot
- Brand & Model: Woodward 5466-1156
- Product Family: MicroNet TMR / MicroNet Plus Control System.
- Product Type: High Density Discrete I/O Smart-Plus Module (HDDIO).
- Primary Function: Provides high-density digital field signal processing for turbine, generator, and industrial control applications.
- I/O Configuration:
- 48 × optically isolated discrete inputs
- 24 × discrete outputs
- Typical Applications:
- Steam turbine control
- Gas turbine control
- Generator protection systems
- Industrial safety logic interfaces
- System Architecture: MicroNet TMR compatible spare module. Woodward identifies 5466-1156 as a TMR spare version of the Discrete I/O module.
- Approximate Physical Dimensions (W × H × D):
Approximately 50 × 260 × 180 mm (VME-style plug-in card format). - Estimated Shipping Weight: Approximately 1.0–1.5 kg including protective packaging.
- Mounting Style: Rack-mounted chassis card.
- Mechanical Features:
- Front extraction handles
- Upper/lower retaining screws
- PCB card assembly
- Rear motherboard connector
- Identification label
- Cooling Method: Chassis airflow cooling.
- Required Accessories:
- Compatible Field Termination Modules (FTMs)
- High-density analog/discrete cables
- Handling Requirements:
- Protect the rear backplane connector.
- Keep the board inside ESD shielding packaging.
- Avoid touching gold-plated contact fingers.
- What’s in the Box:
- Woodward 5466-1156 HDDIO Smart-Plus Module
- ESD protective packaging
- Protective connector cover when supplied
- Documentation if included
3. Product Introduction
The Woodward 5466-1156 installs into the MicroNet TMR chassis as a high-density discrete signal interface. It processes field contact inputs and output commands required by turbine control sequences, including alarms, permissives, and shutdown-related logic (which is critical for applications where control availability directly affects equipment protection).
This module is managed as a safety-related automation spare. Confirm the exact part number, hardware revision, FTM arrangement, and controller software compatibility before installation. Check the date code. Woodward documentation specifies that this module is tied to specific MicroNet coder versions, with 5466-1156 supporting earlier TMR configurations.
4. Core Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Woodward |
| Model Number | 5466-1156 |
| Product Type | MicroNet TMR HDDIO Smart-Plus Module |
| System Compatibility | MicroNet TMR / MicroNet Plus |
| Digital Inputs | 48 channels |
| Digital Outputs | 24 channels |
| Input Type | Optically isolated discrete input |
| Input Voltage Range | 18–32 VDC via compatible FTM |
| Input Threshold | >16 VDC = ON |
| Input Current | Approx. 4 mA @ 24 VDC |
| Isolation Voltage | 500 VDC to earth ground; 1000 VDC to control common |
| Time Stamping Resolution | 500 μs |
| Update Time | 5 ms |
| Contact Supply | 24 VDC isolated supply, 400 mA maximum |
| Mounting Method | Rack-mounted chassis card |
| FTM Requirement | 5453-276 compatible FTM configuration |
| Power Supply | 24 VDC system supply |
| Operating Environment | Industrial control cabinet |
| Storage Temperature | Approx. -40°C to +105°C |

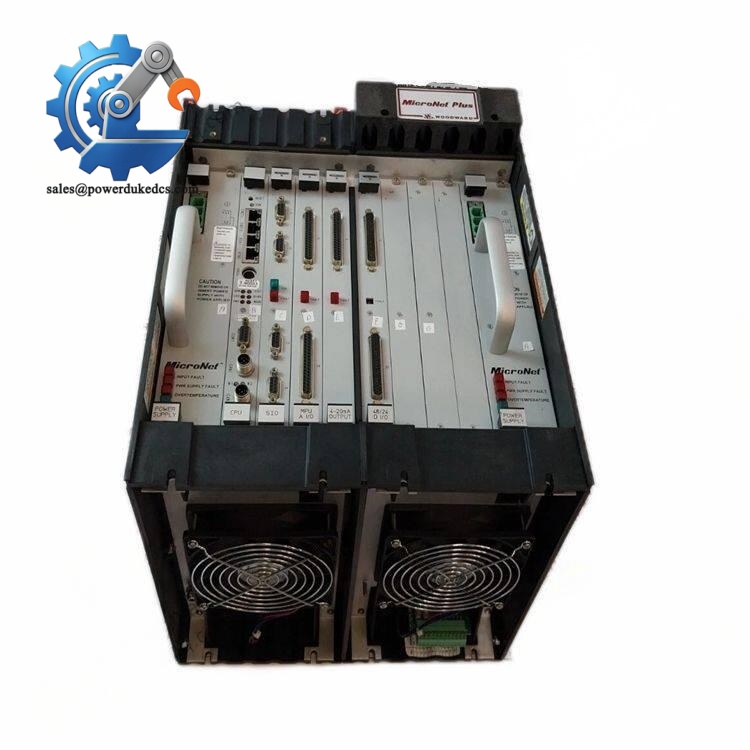

Woodward 5466-1156
5. Global Compliance & Industry Certifications
Expected compliance considerations for the Woodward 5466-1156 include:
- CE Mark — applicable when installed as part of a compliant MicroNet control system.
- UL/cUL Considerations — verify the exact module revision and system documentation before claiming North American approval.
- ATEX/IECEx Considerations — the module is not automatically a standalone hazardous-area certified device. Hazardous-area applications require a complete certified system design.
- Marine Approvals (DNV GL / ABS) — require confirmation against the specific MicroNet TMR installation.
- EMC Compliance — important because discrete I/O wiring can introduce electrical noise into control systems.
Optical isolation is a key protection feature. It helps separate field wiring disturbances from controller electronics, reducing the risk of signal faults affecting control logic.
Verify specific lot certifications with OEM.
6. Long-Term Storage & Asset Preservation Guide
- Keep the 5466-1156 inside the original ESD shielding bag. The rear backplane connector is vulnerable to contamination and oxidation.
- Maintain warehouse humidity below 60% RH. Moisture can degrade PCB insulation, connector plating, and solder joints.
- Store the module in a temperature-controlled cabinet away from vibration, oil mist, and corrosive chemicals.
- Record the serial number, hardware revision, and compatible FTM information before placing it into spare inventory.
- Avoid unnecessary insertion/removal cycles during inspections. The backplane connector is designed for controlled maintenance replacement.
7. Physical Installation Prerequisites
- Install the 5466-1156 only into a compatible Woodward MicroNet TMR chassis.
- Confirm the correct FTM and cable configuration before replacement.
- Verify the module revision matches the existing controller software environment.
- Maintain approximately 50 mm clearance above and below the rack assembly where cabinet design permits.
- Ensure cabinet airflow paths are unobstructed.
- Inspect the backplane connector before installation.
- Use ESD protection during handling.
- Confirm protective grounding and cabinet bonding requirements.
- Perform I/O verification after installation before returning the control system to operation.
8. Buyer’s FAQ (Logistics & Compliance Focus)
Q: What HS Tariff Code is commonly used for Woodward 5466-1156?
A: Industrial digital I/O modules are commonly reviewed under HS 8537 classifications for electrical control apparatus. Final classification depends on customs interpretation, module function, and importing-country requirements.
Q: Why does Country of Origin (COO) matter for this Woodward module?
A: COO affects customs clearance, duty calculation, supplier qualification, and equipment traceability. The declared origin should match the commercial invoice, packing list, and certificate of origin when required.
Q: Should shipping insurance be arranged for the 5466-1156?
A: Recommended. The module contains PCB electronics, optical isolation circuits, and precision backplane contacts. Shock, moisture, or electrostatic damage may not be visible after transport.
Q: Does the Woodward 5466-1156 include the latest firmware pre-loaded?
A: This module is not typically configured like a standalone PLC CPU with user-loaded firmware. Compatibility depends on hardware revision, MicroNet coder version, and the installed control application. Verify software compatibility before replacement.
