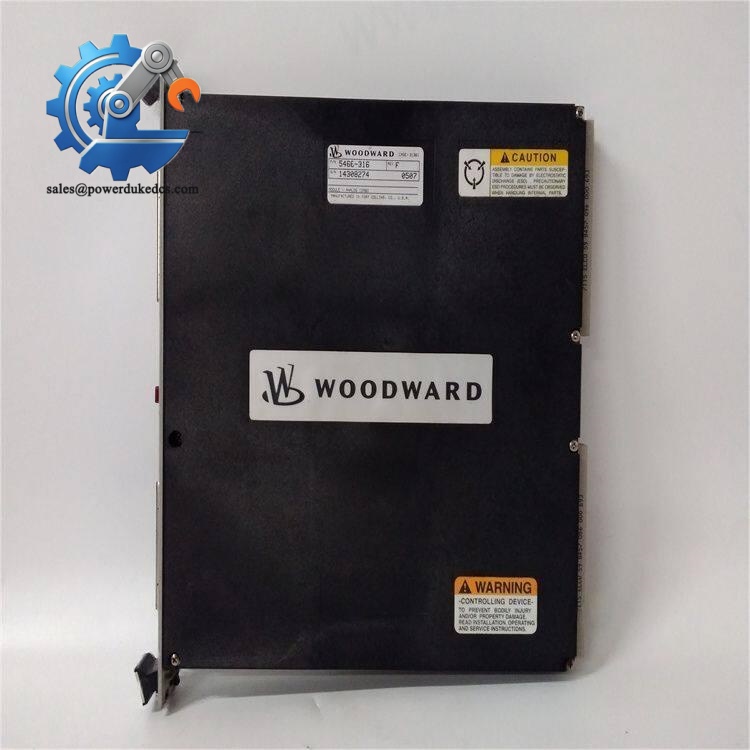

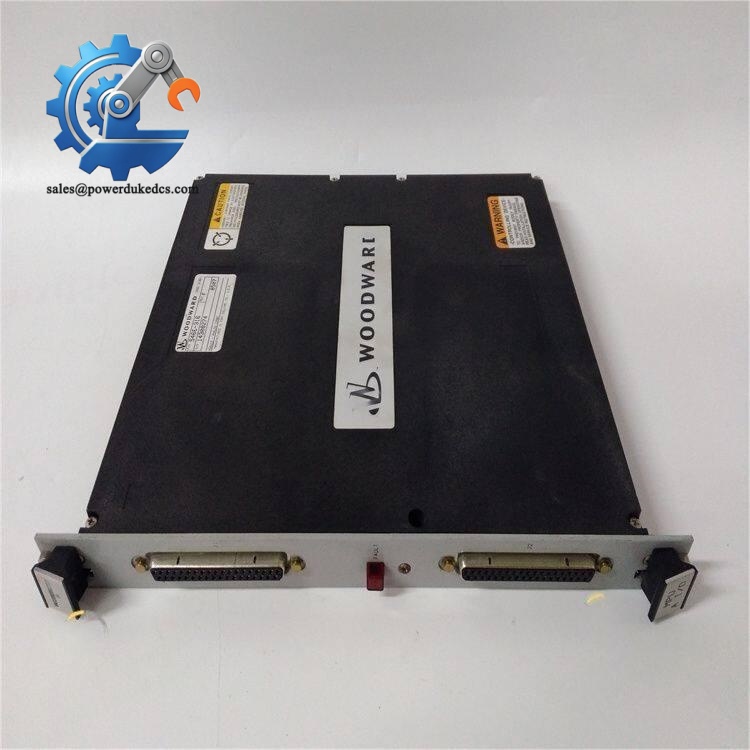

1. Woodward 5466-316 | Original 5400 Series Interface Module

2. Unboxing & Physical Snapshot

• Brand & Model: Woodward 5466-316
• Product Family: Woodward MicroNet / 5400 Series Control Systems.
• Product Type: High Density Analog Combo I/O Module.
• Primary Function: Provides combined analog input, analog output, speed sensing, and proportional actuator control functions for turbine and engine control applications.
• System Application: MicroNet Simplex turbine control systems, steam turbine controls, compressor controls, and industrial governor applications.
• I/O Configuration:
  • 8 × 4–20 mA analog inputs
  • 4 × 4–20 mA analog outputs
  • 4 × speed inputs
  • 2 × proportional actuator outputs
• Power Supply: 24 VDC nominal.
• Approximate Physical Dimensions (W × H × D): Approximately 100 × 250 × 150 mm (module form factor varies by mounting hardware and chassis configuration).
• Estimated Shipping Weight: Approximately 0.85 kg (module weight commonly listed around 1.85 lb).
• Mounting Style: MicroNet chassis card-slot mounting.
• Mechanical Features:
  • Front panel identification label
  • PCB-based plug-in module construction
  • High-density I/O interface connector
  • Chassis retaining hardware
  • Field termination cable connection
• Isolation Capability: Approximately 3000 VDC isolation protection.
• Cooling Method: Passive convection through cabinet airflow.
• Handling Requirements:
  • Protect the edge connector from contamination.
  • Keep the module inside ESD packaging during storage.
  • Avoid bending or stressing the front panel handles.
• What’s in the Box:
  • Woodward 5466-316 Analog Combo Module
  • ESD protective packaging
  • Protective connector cover when supplied
  • Documentation if included

3. Product Introduction

The Woodward 5466-316 installs directly into the MicroNet control chassis as a high-density I/O processing module. It combines several field interface functions into one hardware assembly, reducing the number of separate modules required for turbine control applications (which is important when maintaining installed systems with limited chassis capacity).

This module should be managed as a critical control-system spare. Inspect the card edge connector, front panel hardware, identification label, and storage condition before installation. Check the date code. Long-term storage without proper environmental control can affect connector plating, PCB insulation, and electronic component reliability.

4. Core Technical Specifications

Parameter	Value
Manufacturer	Woodward
Model Number	5466-316
Product Family	MicroNet HD Combo Module
Module Type	Analog Combo I/O Module
System Type	MicroNet Simplex
Analog Inputs	8 channels, 4–20 mA
Analog Outputs	4 channels, 4–20 mA
Speed Inputs	4 channels
Proportional Actuator Outputs	2 channels
Input Voltage	24 VDC nominal
Isolation Protection	3000 VDC
Speed Sensor Support	MPU / proximity probe compatible
Actuator Output Type	Configurable proportional actuator drive
Mounting Method	MicroNet chassis slot
Cooling Method	Natural convection
Operating Temperature	Approximately -25°C to +70°C
Weight	Approx. 0.85 kg
Firmware	Application-dependent

Woodward 5466-316

5. Global Compliance & Industry Certifications

Expected regulatory approvals and compliance considerations for the Woodward 5466-316 include:

• CE Mark — applies to electromagnetic compatibility requirements when installed within an approved Woodward control system.
• UL Recognition — may apply depending on system configuration and installation environment.
• ATEX/IECEx Considerations — this module itself is not generally a standalone hazardous-area certified device; hazardous-area operation requires certified system-level design.
• Marine Approvals (DNV GL) — require verification for offshore and marine turbine control applications.
• RoHS Compliance — depends on manufacturing revision and production period.

Isolation ratings are important for turbine control equipment because they help protect control electronics from field wiring disturbances and electrical potential differences.

Verify specific lot certifications with OEM.

6. Long-Term Storage & Asset Preservation Guide

• Keep the 5466-316 inside its original anti-static ESD shielding bag. The edge connector and analog signal circuitry require protection from electrostatic exposure.
• Maintain warehouse humidity below 60% RH. Moisture can degrade PCB insulation and connector contact surfaces.
• Store the module in a clean, temperature-controlled cabinet away from vibration, dust, and corrosive gases.
• Record the firmware revision, serial number, and associated Field Termination Module (FTM) information before inventory storage.
• Avoid repeated connector insertion during inspection cycles. The card contacts are designed for controlled installation.

7. Physical Installation Prerequisites

• Install the 5466-316 only in a compatible Woodward MicroNet chassis.
• Verify the correct Field Termination Module and cable assembly before replacement.
• Ensure cabinet airflow supports passive cooling.
• Maintain approximately 50 mm clearance above and below the chassis assembly where cabinet design permits.
• Confirm grounding and shield termination practices before connecting field wiring.
• Verify actuator output wiring before energizing.
• Check application software configuration compatibility before returning the turbine control system to service.
• Use ESD protection during module replacement.


  Woodward 5466-316

8. Buyer’s FAQ (Logistics & Compliance Focus)

Q: What HS Tariff Code is commonly used for Woodward 5466-316?

A: Industrial control modules are commonly reviewed under HS 8537 classifications for electrical control apparatus. Final classification depends on customs interpretation, module function, and importing-country requirements.

Q: Why does Country of Origin (COO) matter for this Woodward module?

A: COO affects customs clearance, duty assessment, export documentation, and lifecycle traceability. The declared origin should match the commercial invoice, packing list, and certificate of origin when required.

Q: Should shipping insurance be arranged for the 5466-316?

A: Recommended. The module contains sensitive analog circuits, processor electronics, and precision connectors. Shock, moisture, or electrostatic damage during transport may not be visible during receiving inspection.

Q: Does the Woodward 5466-316 include the latest firmware pre-loaded?

A: The module contains factory-installed firmware according to its hardware revision. Application configuration, GAP software settings, and system compatibility must be verified before commissioning.
