Woodward 5466-1156 | Original MicroNet Plus/TMR Hardware

Description

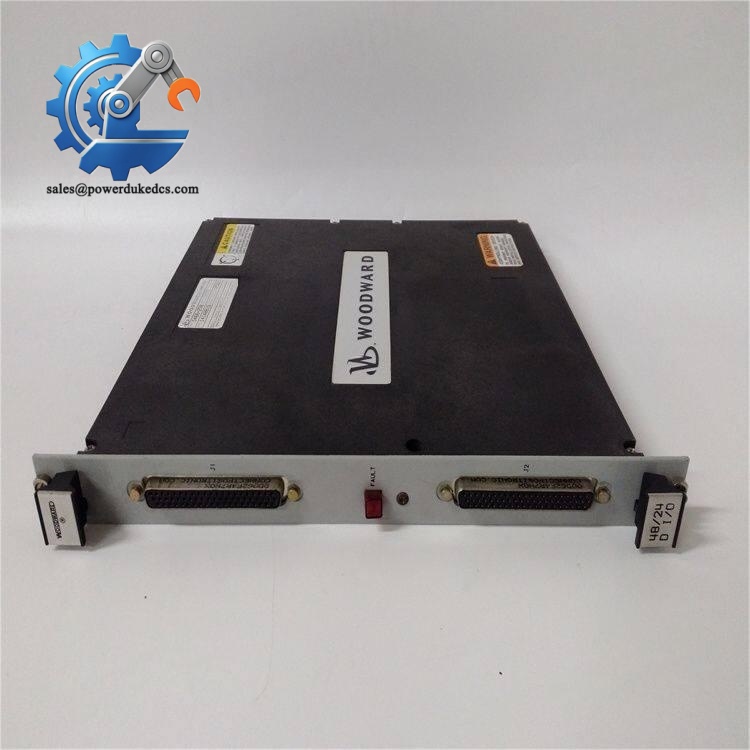

1. Woodward 5466-1156 | Original MicroNet Plus/TMR Hardware

Unboxing & Physical Snapshot

• Brand & Model: Woodward 5466-1156
• Product Family: MicroNet Simplex / MicroNet Plus / MicroNet TMR Control System.
• Product Type: Discrete I/O Smart-Plus Module. (woodward.com)
• Primary Function: Provides high-density digital input and output processing for turbine, generator, and industrial control applications.
• Channel Configuration:
  • 48 discrete inputs
  • 24 discrete outputs
    (woodward.com)
• System Application:
  • Turbine protection logic
  • Generator control systems
  • Industrial automation cabinets
  • MicroNet TMR redundant control platforms
• Input Type: Optically isolated discrete inputs (galvanically isolated). (woodward.com)
• Update Time: Approximately 5 ms. (woodward.com)
• Approximate Physical Dimensions (W × H × D):
  Approximately 50 × 260 × 180 mm (6U VME-style module format).
• Estimated Shipping Weight: Approximately 1.0–1.5 kg including protective packaging.
• Mounting Style: Rack-mounted VME card slot installation.
• Mechanical Features:
  • Front extraction handles
  • Upper/lower retaining screws
  • PCB card assembly
  • Rear motherboard connector
  • Front identification label
• Cooling Method: Cabinet forced airflow through chassis.
• Handling Requirements:
  • Protect the backplane connector pins.
  • Keep the module inside ESD shielding during storage.
  • Avoid touching exposed gold-plated contacts.
• What’s in the Box:
  • Woodward 5466-1156 Discrete I/O Smart-Plus Module
  • ESD protective packaging
  • Connector protection accessories when supplied
  • Documentation if included

Product Introduction

The Woodward 5466-1156 installs directly into a MicroNet control chassis as a high-density discrete signal interface module. It converts field contact signals into controller-readable data while handling relay and digital output functions required by turbine and generator control sequences (which is critical when managing shutdown logic, alarms, and permissive circuits).

This module should be managed as a controlled automation spare. Verify the part number, hardware revision, FTM compatibility, and controller coder version before installation. Check the date code. Woodward documentation notes that specific module versions are tied to controller software compatibility, including Coder version requirements.

Core Technical Specifications

Woodward 5466-1156

Global Compliance & Industry Certifications

Expected compliance considerations for the Woodward 5466-1156 include:

• CE Mark — applies when installed as part of a compliant MicroNet control system configuration.
• UL/cUL Recognition — verify the exact module revision and complete system documentation before claiming North American approval.
• ATEX/IECEx Considerations — this I/O module is not automatically a hazardous-area certified standalone device. Hazardous-area installations require certified system architecture.
• Marine Approvals (DNV GL / ABS) — require confirmation against the specific MicroNet system configuration.
• EMC Compliance — important because discrete I/O modules operate with external field wiring that may introduce electrical noise.

Isolation is a key safety feature for this module. Optically isolated inputs help protect controller electronics from field voltage differences and switching disturbances.

Verify specific lot certifications with OEM.

Long-Term Storage & Asset Preservation Guide

• Store the 5466-1156 inside the original ESD shielding bag. The VME connector fingers are sensitive to contamination and oxidation.
• Maintain warehouse humidity below 60% RH. Excess moisture can degrade PCB insulation and connector surfaces.
• Keep the module in a stable temperature environment away from vibration, dust, and corrosive gases.
• Record the hardware revision, serial number, and compatible FTM information before inventory storage.
• Avoid repeated insertion cycles during inspections. The backplane connector is designed for controlled maintenance replacement.

Physical Installation Prerequisites

• Install the 5466-1156 only in a compatible Woodward MicroNet chassis.
• Verify the correct Field Termination Module (FTM) and cable assembly before replacement.
• Ensure chassis airflow is unobstructed.
• Leave approximately 50 mm clearance above and below the rack assembly where cabinet design allows.
• Inspect the VME backplane connector before installation.
• Use ESD protection during handling.
• Confirm grounding and cabinet bonding requirements.
• Verify controller software compatibility before returning the system to operation.

Buyer’s FAQ (Logistics & Compliance Focus)

Q: What HS Tariff Code is commonly used for Woodward 5466-1156?

A: Industrial control I/O modules are commonly reviewed under HS 8537 classifications for electrical control apparatus. Final classification depends on customs interpretation, module function, and importing-country requirements.

Q: Why does Country of Origin (COO) matter for this Woodward module?

A: COO affects customs clearance, duty calculation, supplier documentation, and lifecycle traceability. The origin declaration should match the commercial invoice, packing list, and certificate of origin when required.

Q: Should shipping insurance be arranged for the 5466-1156?

A: Recommended. The module contains PCB assemblies, VME connector contacts, and optical isolation components. Shock, moisture, or electrostatic damage during transport may not be visible externally.

Q: Does the Woodward 5466-1156 include the latest firmware pre-loaded?

A: The module does not function like a standalone PLC CPU with user firmware loading. Compatibility depends on hardware revision, MicroNet controller software, and system configuration. Verify the coder version and application requirements before replacement.
