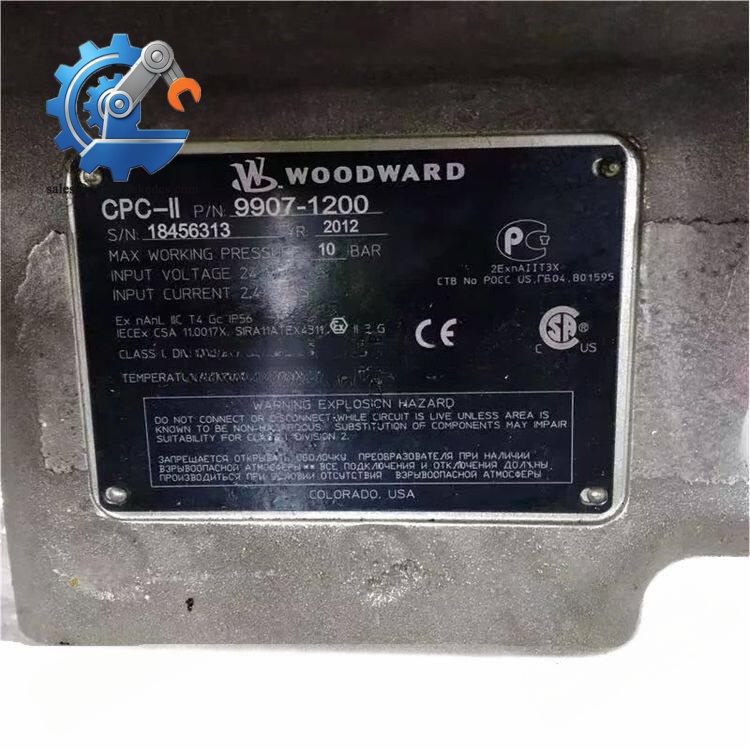

- Woodward 9907-1200 | Original CPC/505 Series Asset
2. Unboxing & Physical Snapshot
- Model & Brand: Woodward 9907-1200 Industrial Control Module. This part number is associated with Woodward turbine control applications and is used for actuator/control functions in industrial power systems.
- Product Type: Electronic turbine control / actuator control module.
- Application Area: Steam turbine, industrial prime mover, and valve control systems.
- Control Function: Converts electronic demand signals into controlled actuator outputs for turbine valve or governor applications.
- Physical Dimensions (Approximate W × H × D): Approximately 225 × 165 × 65 mm (8.9 × 6.5 × 2.6 in.) depending on enclosure revision.
- Estimated Shipping Weight: Approximately 1.8–4.1 kg (4–9 lb) depending on packaging and configuration.
- What’s in the Box:
- Woodward 9907-1200 control module
- Terminal/interface hardware (configuration dependent)
- Product identification label
- Protective anti-static packaging
- Documentation when available
3. Product Introduction
The Woodward 9907-1200 is installed as part of a turbine control cabinet where electrical isolation, grounding, and signal integrity directly influence actuator response. Cabinet preparation matters. Check terminal condition, mounting hardware, and wiring separation before energization because governor equipment operates around high-energy machinery where incorrect signals can affect speed regulation and load response.
This controller is designed for industrial turbine regulation tasks, handling speed, load, and actuator-related control functions within a larger turbine control architecture. The exact operating characteristics depend on the connected actuator, sensor arrangement, and application configuration. Verify the installed parameters before replacing a field unit (especially on running production assets where configuration loss can extend commissioning time).
4. Core Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Woodward |
| Model Number | 9907-1200 |
| Product Type | Turbine Control / Actuator Control Module |
| Application | Steam turbine and industrial prime mover control |
| Input Signal | 4–20 mA control input (application dependent) |
| Output Signal | Actuator control output (configuration dependent) |
| Power Supply | 18–36 VDC or application-specific supply range |
| Control Modes | Speed / load / valve control functions |
| Communication | RS-232 / RS-422 / Modbus options depending on configuration |
| Operating Temperature | Approximately -40°C to +60°C |
| Storage Temperature | Approximately -40°C to +85°C |
| Mounting | Control cabinet installation |
| Enclosure Rating | Cabinet dependent |
| Weight | Approx. 1.8–4.1 kg |
| Cooling Method | Natural cabinet convection |
Woodward 9907-1200
5. Global Compliance & Industry Certifications
Expected compliance considerations for the Woodward 9907-1200 include:
- CE Mark — applicable for compliant industrial control installations.
- UL/cUL Recognition — may apply depending on the specific product revision and system installation.
- RoHS Compliance — verify based on manufacturing date and documentation.
- ATEX/IECEx — not a standalone hazardous-area certified controller; hazardous-area use requires a complete certified system.
- Marine approvals (DNV GL) — applicable only for approved marine turbine control packages.
For turbine control equipment, certification review must include the complete control loop. The controller, actuator, sensors, wiring, and protective systems must operate together within the approved safety design.
Verify specific lot certifications with OEM.
6. Long-Term Storage & Asset Preservation Guide
Store the 9907-1200 inside its original anti-static packaging. Protect terminal connections and PCB assemblies from dust and moisture exposure.
Maintain warehouse humidity below 60% RH. Extended exposure to moisture can oxidize terminals and degrade electronic components.
Before installation after long storage:
- Inspect terminal blocks and connectors.
- Check enclosure condition and mounting points.
- Verify stored configuration parameters.
- Confirm firmware revision compatibility.
- Perform controlled power-up testing before connecting the turbine system.
Avoid storing near vibration sources or areas with chemical contamination.
7. Physical Installation Prerequisites
- Install inside a clean, temperature-controlled control cabinet.
- Mount securely on the designated panel or rack structure.
- Connect protective earth according to plant standards.
- Keep actuator wiring separated from high-voltage switching conductors.
- Verify shield termination for analog signal cables.
- Maintain adequate cabinet airflow.
- Leave approximately 50 mm clearance around ventilation areas where practical.
- Confirm terminal tightening and wiring identification before startup.
- Verify actuator feedback and speed sensing circuits before commissioning.
8. Buyer’s FAQ (Logistics & Compliance Focus)
Q: What HS Tariff Code is commonly used for the Woodward 9907-1200?
A: Industrial electronic control modules are commonly reviewed under HS 8537 or HS 8538 depending on whether customs classifies the unit as a control apparatus or a component part. Final classification depends on destination-country regulations.
Q: Does Country of Origin (COO) affect importing this Woodward controller?
A: Yes. COO affects customs clearance, duty assessment, warranty tracking, and maintenance documentation. Match COO details between invoice, packing list, and equipment records.
Q: Is shipping insurance recommended for the 9907-1200?
A: Recommended. The module contains sensitive control electronics and connector assemblies. Shock, moisture, or electrostatic exposure during transport may cause failures that only appear during startup.
Q: Does the Woodward 9907-1200 include the latest firmware pre-loaded?
A: Firmware and configuration depend on the specific hardware revision and turbine application. Confirm software compatibility, parameter backups, and calibration settings before replacement.
Lifecycle Note: The Woodward 9907-1200 should be managed as a controlled turbine spare. Preserve the configuration records together with the hardware because restoring the correct control parameters is essential for returning rotating equipment to service.
