Description
- Woodward 5466-315 | Industrial Control I/O Replacement
2. Unboxing & Physical Snapshot
- Model & Brand: Woodward 5466-315
- Product Type: MicroNet High Density Analog I/O Module.
- System Platform: Woodward MicroNet and MicroNet Plus digital control systems.
- Primary Function: Analog measurement and output interface module used for turbine and industrial control applications. The module provides 24 analog inputs and 8 analog outputs, using dedicated High Density Analog Field Terminal Modules (FTMs).
- Approximate Physical Dimensions (W × H × D):
- Approximately 80 × 260 × 250 mm (MicroNet rack module format reference).
- Estimated Shipping Weight:
- Module weight: approximately 1.8–2.0 kg (reference values vary by packaging source).
- Typical export packaging weight: 2.5–3.5 kg
- What’s in the Box:
- Woodward 5466-315 High Density Analog I/O Module
- Front faceplate assembly
- Backplane/VME connector interface
- ESD protective packaging
- Documentation package when available
- High Density Analog FTMs and field cables supplied separately unless specified
3. Product Introduction
The Woodward 5466-315 is installed inside the MicroNet control chassis as a high-density analog interface between field instrumentation and the turbine control processor. It handles process measurement signals and analog control outputs, allowing a single rack position to manage a large number of field connections (—which is critical in turbine cabinets where panel space and wiring density are limited). The module supports 24 channels of 4–20 mA analog inputs and 8 channels of 4–20 mA analog outputs.
This module is not interchangeable with every MicroNet analog card. Confirm the exact FTM, cable assembly, software coder version, and application configuration before replacement. Check the slot number. Check the field termination wiring. Woodward documentation notes that replacement modules may require application compatibility review when integrated into existing systems.
4. Core Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Woodward |
| Model | 5466-315 |
| Product Family | MicroNet / MicroNet Plus |
| Module Type | Simplex High Density Analog I/O Module |
| Analog Inputs | 24 channels |
| Analog Outputs | 8 channels |
| Input Signal | 4–20 mA |
| Output Signal | 4–20 mA |
| Input Resolution | 16-bit |
| Input Update Time | Approx. 5 ms |
| Input Impedance | Approx. 200 Ω |
| Anti-Aliasing Filter | 2-pole 10 ms filter |
| Output Load Capability | Up to 600 Ω |
| Field Interface | 2 × High Density Analog FTMs |
| Required FTM | 5501-376 (2 units) |
| Communication Interface | MicroNet VME backplane |
| Calibration | Automatic software calibration |
| Mounting Method | Rack card insertion |
| Power Source | MicroNet chassis supply |
| Weight | Approx. 2 kg |

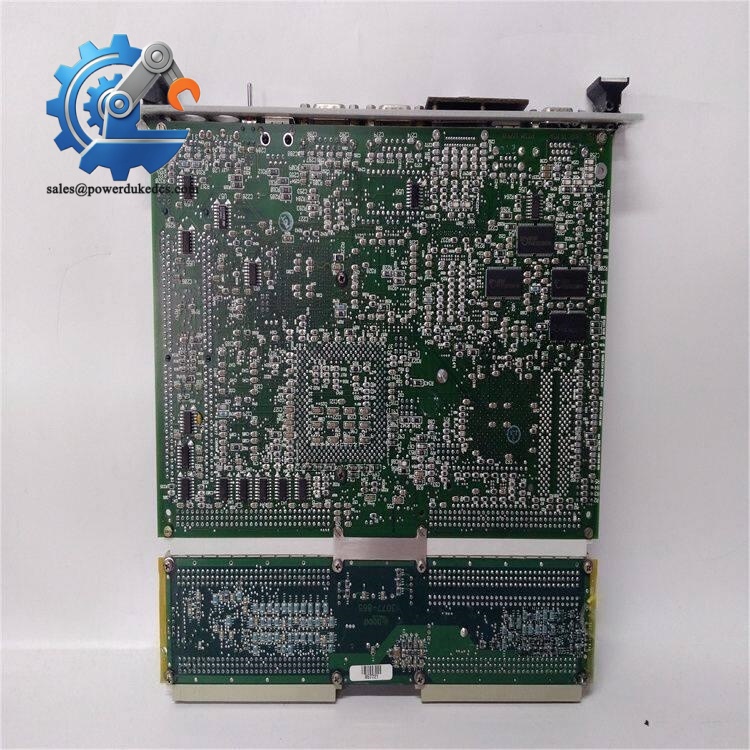

Woodward 5466-315
5. ? Global Compliance & Industry Certifications
Expected regulatory approvals for the Woodward 5466-315 include:
- CE Mark
- Applicable when installed as part of a compliant MicroNet control system meeting industrial EMC requirements.
- UL/cUL Listed
- Reported for this module family by industrial component distributors; verify the exact certification marking on the hardware label.
- ATEX / IECEx
- The module itself should not be treated as a standalone hazardous-area device. Hazardous-location use requires a certified enclosure, wiring method, and complete system approval.
- Marine Approvals (DNV GL)
- Applicable only when included in a documented marine-certified automation system.
For turbine controls, analog modules often process pressure, temperature, and operational feedback signals. Incorrect certification documentation or hardware revisions can create audit problems during maintenance reviews.
Verify specific lot certifications with OEM.
6. ? Long-Term Storage & Asset Preservation Guide
Keep the 5466-315 inside an original anti-static (ESD) shielding bag during storage. Protect the edge connector, PCB surface, and front identification label from dust and accidental contact.
Maintain storage humidity below 60% RH. Long exposure to moisture can increase connector resistance and accelerate oxidation on contact surfaces.
Before installation after extended storage:
- Inspect the card-edge connector under proper lighting.
- Verify part number, revision level, and serial number.
- Confirm the correct High Density Analog FTM assemblies are available.
- Review the existing MicroNet application configuration.
Avoid stacking bare modules together. The connector pins and PCB edges can be damaged by mechanical contact (—a small physical defect can create unstable analog readings that are difficult to troubleshoot).
7. Physical Installation Prerequisites
- Install the 5466-315 only in a compatible Woodward MicroNet chassis.
- Slide the module through the chassis card guides.
- Secure the front panel retaining screws after insertion.
- Confirm the motherboard connector is fully engaged.
- Connect the required High Density Analog FTMs using approved cables.
- Verify signal shielding and grounding practices.
- Confirm 4–20 mA loop wiring before startup.
- Maintain cabinet airflow around the rack assembly.
- Leave approximately 50 mm clearance around service areas where cabinet design permits.
- Perform analog loop checks after installation.
- Verify channel scaling inside the application software.
8. Buyer’s FAQ (Logistics & Compliance Focus)
Q: What HS Tariff Code is commonly used for the Woodward 5466-315?
A: Industrial control I/O modules are commonly reviewed under HS 8538 categories for parts used with electrical control equipment. Final classification depends on the importing country’s customs interpretation.
Q: Why does Country of Origin (COO) matter for the 5466-315?
A: COO affects customs clearance, duty calculation, and traceability records. Ensure the commercial invoice, packing list, and certificate of origin show matching manufacturer and part-number information.
Q: Is shipping insurance recommended for this analog I/O module?
A: Recommended. The module contains precision analog circuitry and sensitive backplane contacts. Shock, moisture, or electrostatic discharge during transportation can cause hidden failures.
Q: Does the 5466-315 include the latest firmware pre-loaded?
A: The module contains factory internal electronics and calibration data; it is not a standalone PLC CPU. Verify MicroNet software compatibility, coder version, and application configuration before commissioning.
