1. WOODWARD 9907-1107 | Industrial Turbine Speed Spare

2. Unboxing & Physical Snapshot

• Brand & Model: WOODWARD 9907-1107
• Product Family: Woodward 2301A Electronic Load Sharing & Speed Control Series
• Product Type: Electronic speed control and load-sharing controller for prime movers, including diesel engines, gas turbines, and generator applications. The 9907 series provides speed regulation and load-sharing functions through actuator control outputs.
• Primary Application: Generator sets, turbine control systems, engine-driven power systems, and industrial prime mover applications.
• Physical Dimensions (Approximate W × H × D):
  • Approximately 127 × 254 × 127 mm
  • Sheet-metal chassis design with front-access adjustment controls.
• Estimated Shipping Weight: Approximately 2–3 kg including protective packaging.
• What’s in the Box:
  • Woodward 9907-1107 electronic speed/load-sharing control
  • Terminal connection interface
  • Front adjustment panel
  • Product identification label
  • Protective ESD packaging
  • Export shipping carton

3. Product Introduction

Structure A — Environmental Hook

The WOODWARD 9907-1107 is designed for industrial environments where engine speed stability, generator synchronization, and load response must remain controlled under changing operating conditions. Installed inside a protected control enclosure, the unit manages actuator commands based on speed feedback and load-sharing requirements.

This controller belongs to the 2301A electronic control family and is commonly maintained as a long-life spare in power-generation installations. Verify actuator compatibility, voltage range, and speed sensor configuration before replacement. Check the date code. Inspect the terminal blocks, potentiometer access points, and chassis mounting surfaces carefully (—which is critical for generator systems where incorrect governor settings can affect frequency stability).

4. Core Technical Specifications

Parameter	Value
Manufacturer	Woodward
Model Number	9907-1107
Product Family	2301A Electronic Load Sharing & Speed Control
Product Type	Electronic Governor / Speed Controller
Application	Engine and turbine prime mover control
Control Functions	Speed control and load sharing
Speed Input	Magnetic pickup speed signal
Actuator Output	Configurable actuator current output
Operating Mode	Isochronous or droop control
Power Supply	Low-voltage DC configuration (model dependent)
Speed Range	Selectable ranges depending on configuration
Mounting Type	Panel/chassis mounting
Enclosure Type	Sheet metal chassis
Communication	Depends on installed system configuration
Operating Temperature	Approx. -40°C to +70°C (application dependent)
Storage Temperature	Approx. -55°C to +105°C
Weight	Approx. 2–3 kg

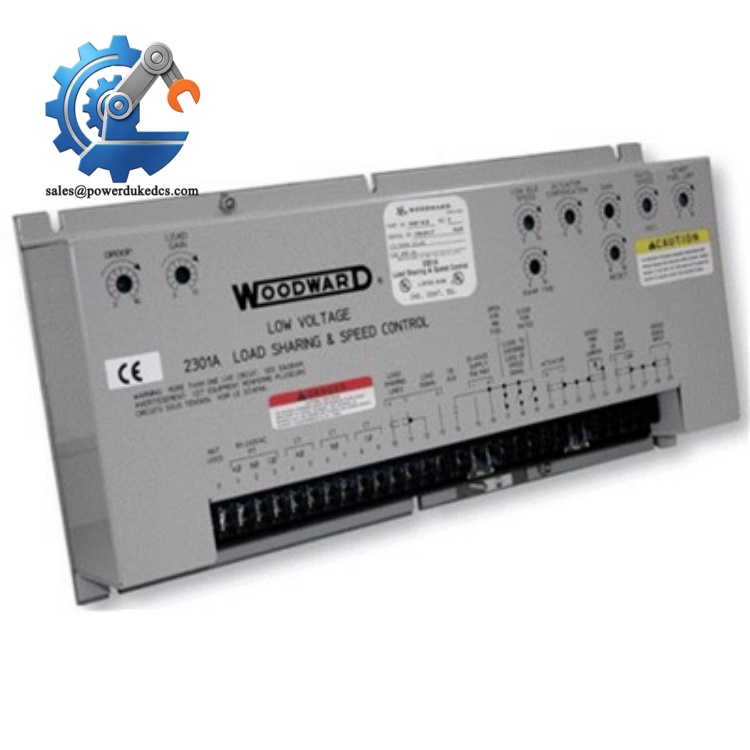

WOODWARD 9907-1107

The 9907-1107 is part of the Woodward 2301A family, which provides electronic speed control and load-sharing functions for prime movers. Exact actuator current range and supply requirements must be verified from the nameplate before installation.

5. ? Global Compliance & Industry Certifications

Expected regulatory considerations for the WOODWARD 9907-1107 include:

• CE Mark — applicable for compliant industrial installations depending on system configuration.
• UL Listed / Recognized — certain 9907 series controllers are associated with UL industrial control approvals.
• EMC Compliance — required for industrial generator and turbine control environments.
• ATEX/IECEx — not a standalone hazardous-area certified controller; suitability depends on enclosure, barriers, and complete system approval.
• Marine Approvals (DNV GL) — only applicable when integrated into approved marine power-control systems.

For governor equipment, certification records support safe integration because the controller directly influences prime mover speed and actuator position.

Verify specific lot certifications with OEM.

6. ? Long-Term Storage & Asset Preservation Guide

Store the 9907-1107 in a dry indoor environment with the original protective packaging installed. Protect the terminal areas and adjustment components from dust contamination.

Maintain warehouse humidity below 60% RH. Moisture exposure can affect PCB coatings, terminal contacts, and internal adjustment components.

Before installation:

• Inspect terminal screws and connection points for oxidation.
• Check the chassis for corrosion or impact damage.
• Verify actuator output configuration against the original system records.
• Confirm speed range settings before energizing.
• Perform controlled power-up testing after extended storage.

Keep configuration notes with the physical spare. Incorrect governor settings can create operational issues even when the hardware is functional.

7. Physical Installation Prerequisites

• Install inside a clean, ventilated control cabinet.
• Mount securely using the chassis mounting points.
• Connect protective grounding according to system requirements.
• Verify DC supply polarity before energizing.
• Confirm speed pickup wiring and actuator wiring.
• Separate governor signal wiring from high-current power cables.

Maintain sufficient cabinet airflow. Leave approximately 50 mm clearance around ventilation areas where required for heat removal and maintenance access.

Do not adjust calibration potentiometers without approved commissioning procedures.

8. Buyer’s FAQ (Logistics & Compliance Focus)

Q1. What HS Tariff Code is commonly used for WOODWARD 9907-1107?

A: The final Harmonized System classification depends on customs interpretation and the declared function of the governor controller. Industrial electronic control units are generally reviewed under electrical control equipment categories. Confirm the final HS code with your customs broker.

Q2. Does Country of Origin affect 9907-1107 import documentation?

A: Yes. COO information supports customs clearance, asset traceability, and maintenance records. Keep the OEM label, commercial invoice, packing list, and inspection report together.

Q3. Is shipping insurance recommended for this governor controller?

A: Recommended. The unit contains electronic control boards and calibrated adjustment circuits. Shock, vibration, or moisture exposure during transport may create hidden operational problems.

Q4. Does the WOODWARD 9907-1107 include the latest firmware pre-loaded?

A: The 9907-1107 is an electronic hardware governor from the 2301A series rather than a modern software-configurable controller. Verify hardware revision, calibration settings, and application parameters before commissioning.
