Woodward 8200-1301 | High Voltage Digital Turbine Control

Description

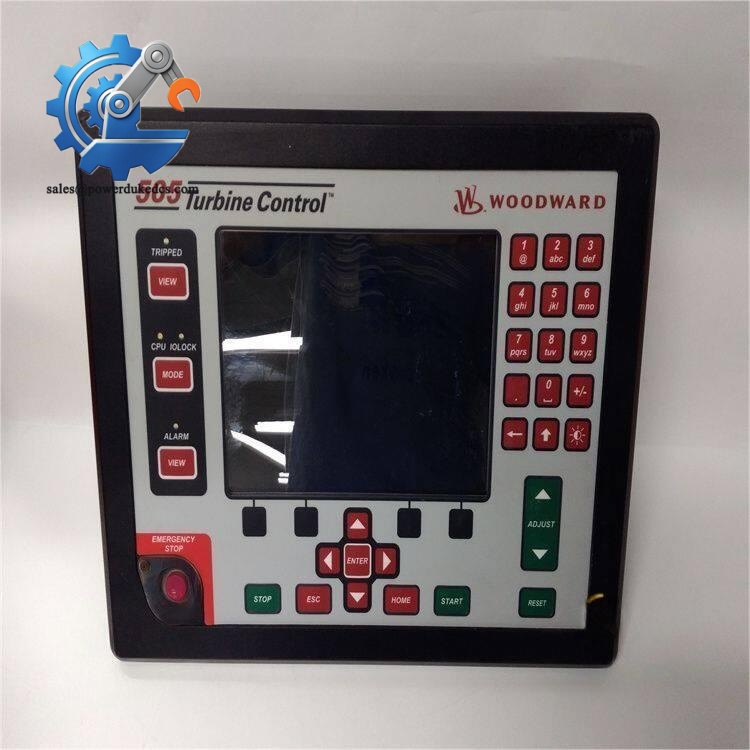

1. Woodward 8200-1301 | High Voltage Digital Turbine Control

Unboxing & Physical Snapshot

• Brand & Model: Woodward 8200-1301
• Product Family: Woodward 505D Digital Governor / Steam Turbine Control Series.
• Product Type: High-voltage standard digital steam turbine controller.
• Primary Function: Controls turbine speed, load, and related operating functions for industrial steam turbine applications.
• Power Input Configuration: High-voltage version supporting 88–264 VAC or 90–150 VDC input supply.
• Approximate Physical Dimensions (W × H × D): Approximately 220 × 120 × 100 mm (cabinet installation dependent).
• Estimated Shipping Weight: Approximately 2.5 kg including typical industrial packaging.
• Mounting Style: Panel-mounted controller chassis.
• Mechanical Features:
  • Sheet-metal chassis enclosure
  • Front access display/control interface
  • Internal printed circuit board assembly
  • Terminal connection blocks
  • Protective grounding point
  • Ventilation openings
• Cooling Method: Natural convection through cabinet airflow.
• Environmental Design:
  • Industrial vibration-resistant enclosure
  • EMI-protected signal interface
  • Cabinet-mounted protection requirement
• What’s in the Box:
  • Woodward 8200-1301 Digital Turbine Control Unit
  • Protective packaging
  • ESD handling protection where applicable
  • Installation documentation when supplied

Product Introduction

The Woodward 8200-1301 is installed as the primary digital control hardware within a turbine control cabinet, where it receives operating signals and manages turbine speed or load control functions. The controller belongs to the 505D family and is configured for high-voltage supply applications (which is critical when replacing legacy turbine control equipment without changing cabinet power architecture).

This controller is a complete electronic control assembly, not a simple I/O replacement. Inspect the enclosure, terminal blocks, display interface, grounding connection, and PCB condition before energizing. Check the date code. Long-term stored turbine controllers require careful inspection because internal capacitors, connectors, and protective coatings can degrade over time.

Core Technical Specifications

Global Compliance & Industry Certifications

Expected regulatory approvals and compliance considerations for the Woodward 8200-1301 include:

• CE Mark — applicable for electromagnetic compatibility and low-voltage requirements according to the certified product configuration.
• UL/cUL Recognition — may apply depending on the complete installation and certified equipment configuration.
• CSA Certification — listed for certain Woodward 505D configurations.
• ATEX/IECEx Considerations — hazardous-area installation requires approved enclosures, wiring methods, and complete system certification.
• Marine Approvals (DNV GL, ABS, LRS) — certain 505D variants may include marine approvals; verify exact part number certification status.

EMC certification matters for turbine controllers because electrical interference from generators, motors, and switching equipment can affect speed sensing and control signals.

Verify specific lot certifications with OEM.

Long-Term Storage & Asset Preservation Guide

• Keep the 8200-1301 inside its original protective packaging and an anti-static (ESD) shielding bag where available. Protect the PCB assembly and connector contacts from contamination.
• Maintain storage humidity below 60% RH. Extended moisture exposure can accelerate corrosion on terminal contacts and internal metal surfaces.
• Store the controller in a temperature-controlled warehouse away from vibration sources and corrosive chemicals. The front display and enclosure seals require protection from impact.
• Before installation, inspect terminal screws, grounding points, display condition, ventilation openings, and connector surfaces.
• Record firmware revision, serial number, hardware revision, and storage history before placing the unit into service.

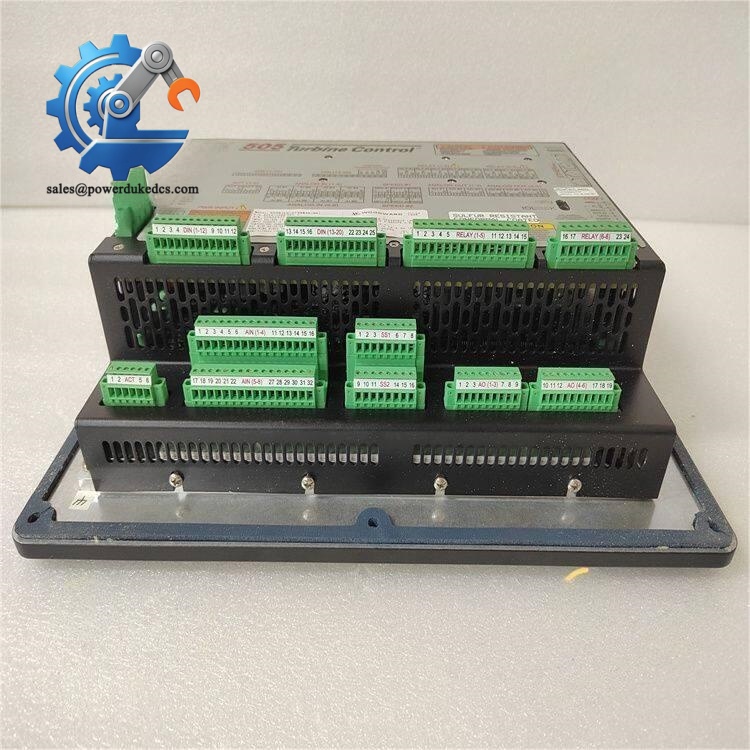

Woodward 8200-1301

Physical Installation Prerequisites

• Install the Woodward 8200-1301 inside a suitable industrial control cabinet.
• Provide adequate cabinet ventilation. Leave at least 50 mm clearance above and below the controller to support natural convection cooling.
• Mount the controller on a rigid panel surface to prevent vibration-related connector stress.
• Connect protective earth grounding before applying power.
• Use shielded cables for sensitive speed and actuator signals where required.
• Separate turbine control wiring from high-current switching conductors.
• Verify supply voltage before energization. The high-voltage model must not be connected to low-voltage-only circuits.
• Inspect all terminal blocks for correct torque and conductor retention.

Buyer’s FAQ (Logistics & Compliance Focus)

Q: What HS Tariff Code is commonly used for the Woodward 8200-1301?

A: Industrial turbine controllers are commonly reviewed under HS 8537 classifications for electrical control apparatus. The final tariff code depends on the declared function and destination-country customs interpretation.

Q: Does Country of Origin (COO) affect import clearance?

A: Yes. COO information supports customs declaration, warranty tracking, and industrial asset traceability. Ensure the COO matches the commercial invoice and packing documentation.

Q: Should shipping insurance be purchased for the 8200-1301?

A: Recommended. The controller contains precision electronics, display components, and PCB assemblies that can be damaged by shock, vibration, or moisture during international transport.

Q: Does the Woodward 8200-1301 include the latest firmware pre-loaded?

A: The controller is supplied with factory-installed firmware/software according to its production configuration. Verify firmware revision compatibility with the existing turbine control application before commissioning.
